Zebra DS457 User Manual

7 - 16 DS457 Fixed Mount Imager Integration Guide
Image Cropping
Parameter # 301 (SSI # F0h 2Dh)
This parameter crops a captured image. Select Disable Image Cropping to present the full 742 x 480 pixels.
Select Enable to crop the image to the pixel addresses set in Crop to Pixel Addresses on page 7-17.
NOTE The imager has a cropping resolution of 4 pixels. Setting the cropping area to less than 3 pixels transfers
the entire image.

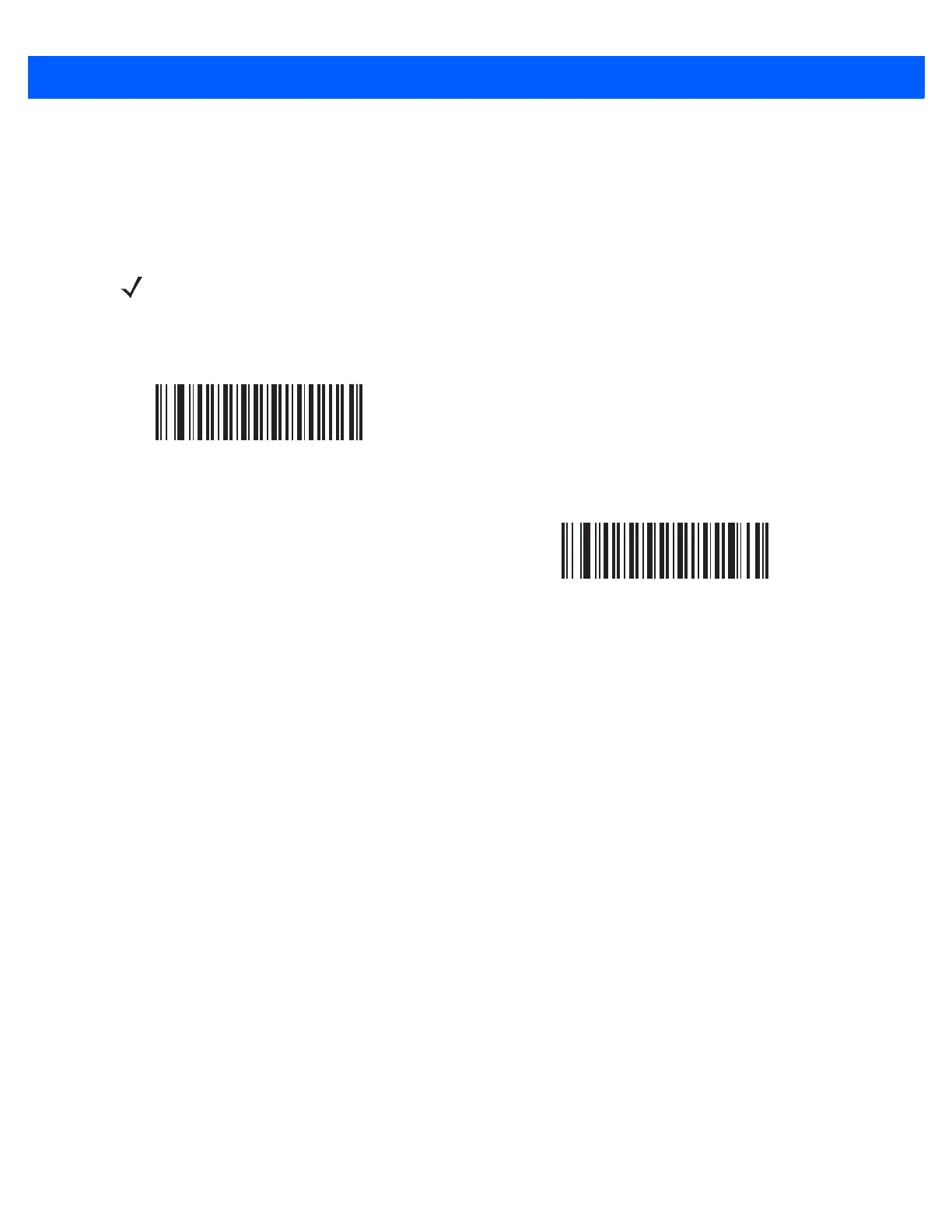

Enable Image Cropping
(1)
*Disable Image Cropping
(Use Full 742 x 480 Pixels)
(0)

Zebra DS457 Specifications

General

Type	Fixed bar code reader
Wavelength	655 nm
Sensor type	-
Scanner type	1D/2D
Optical sensor resolution	752 pixels
Standard interfaces	USB
Connectivity technology	Wired
Input voltage	5 V
Power consumption	450 mA
Safety	ETL, VDE, CETL, EN60950, Ctick, VCCI
Certification	FCC, RoHS
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Cables included	USB, VGA
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	58.4 mm
Width	62 mm
Height	29.2 mm
Weight	111 g
