Installation 2 - 5

Mounting the Imager on the POS Stand

To mount the imager on the optional POS stand:

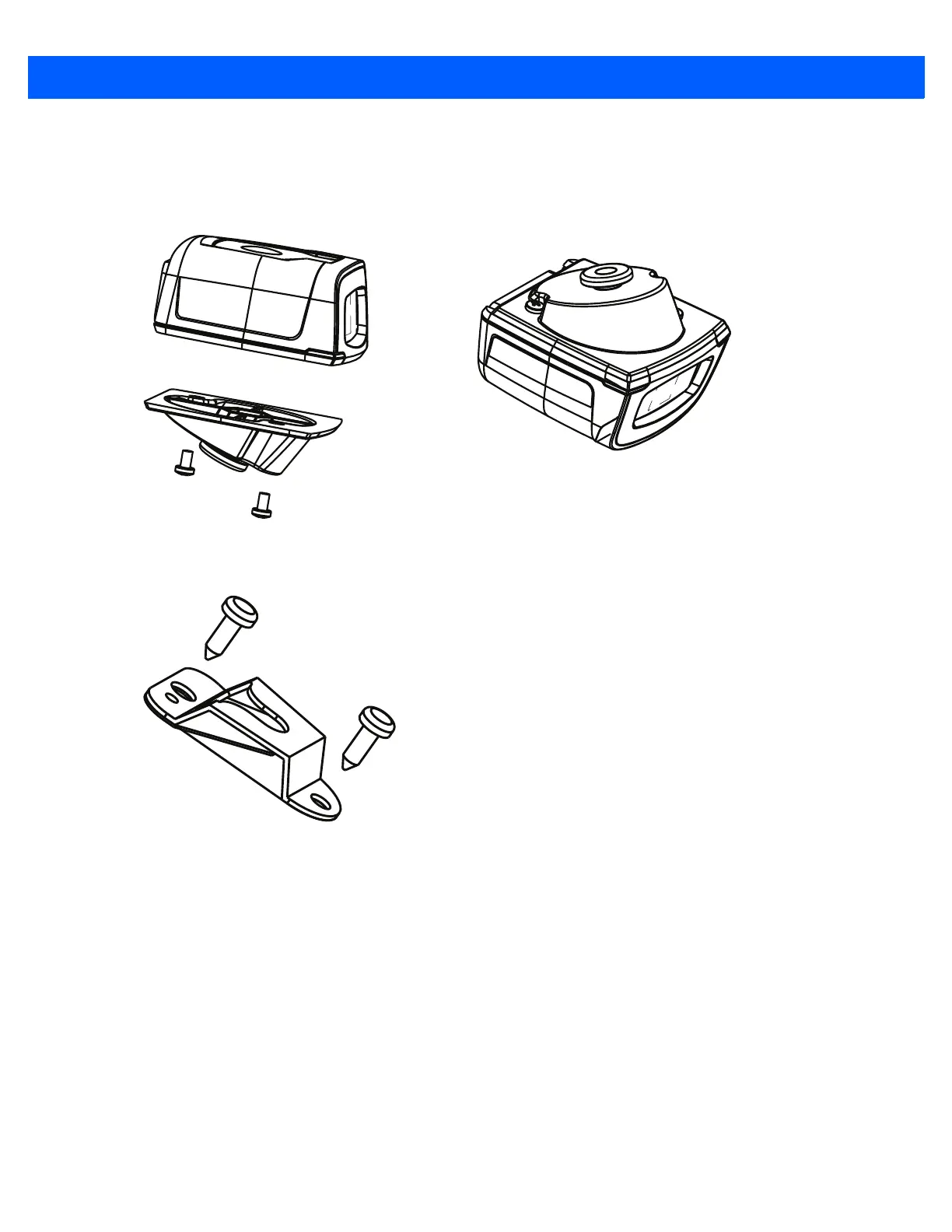

1. Mount the imager to the bracket assembly using the two mounting screws provided.

Figure 2-4

Mounting Imager on Bracket Assembly

2. Secure the microphone-style clip to the mounting surface using the two screws provided.

Figure 2-5

Securing Microphone Clip
