CHAPTER 1 GETTING STARTED
Overview
The DS457 fixed-mount imager is specifically designed for standalone applications and OEM applications. The
imager is extremely compact, provides easy and flexible integration into a host device, and offers
high-performance imaging on 1D and 2D bar codes. The DS457 is ideal for a wide variety of uses:
zero-footprint point-of-sale, kiosks, embedded diagnostic equipment, conveyor belts, and many more.

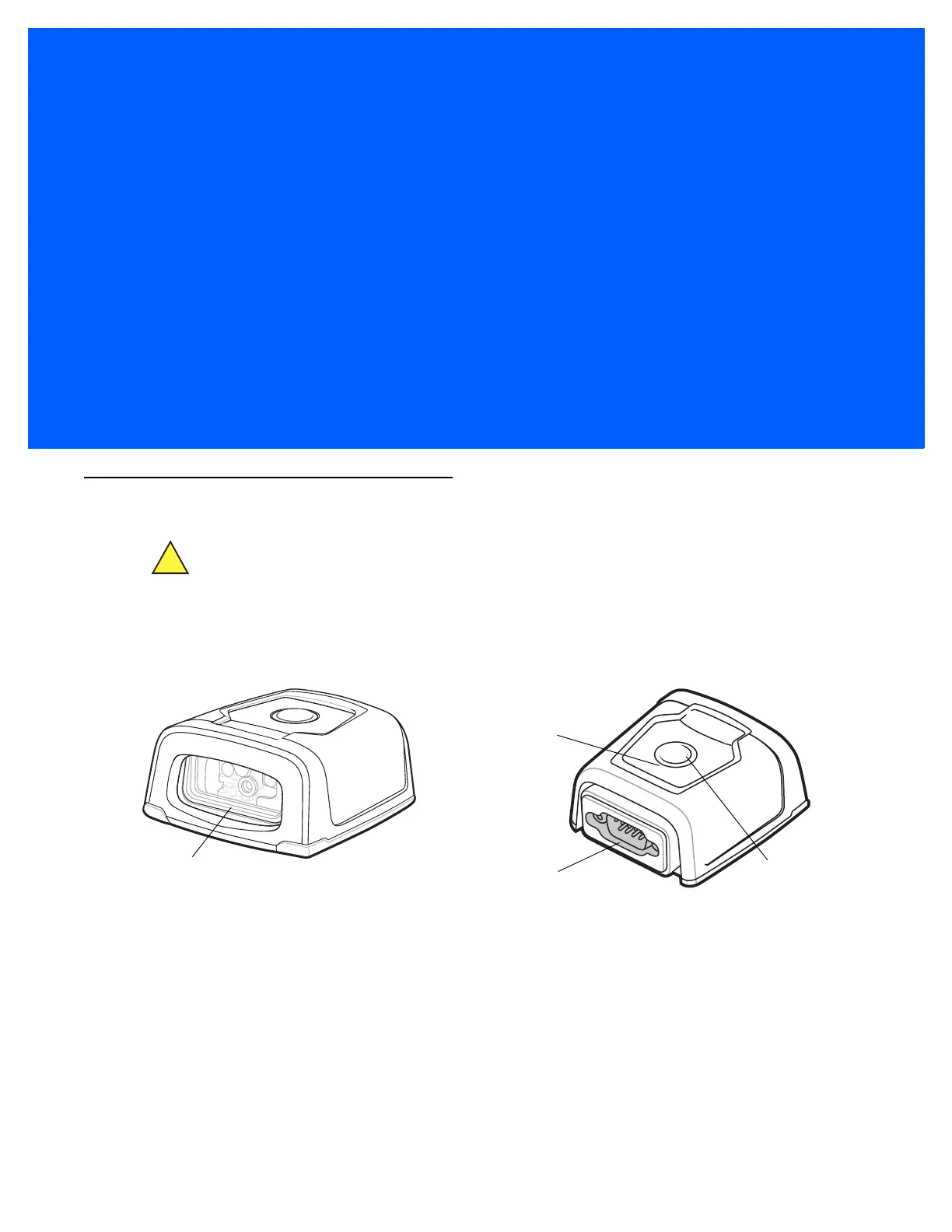

Figure 1-1 DS457 Fixed Mount Imager
This integration guide includes programming parameters and describes the theory of operation, installation,
specifications, and configuration.
CAUTION Use of controls, adjustments or procedures other than those specified here can result in
hazardous laser light exposure.
!
Indicator LED
Trigger Button
I/O Connector
Imager Window

Zebra DS457 Specifications

General

Type	Fixed bar code reader
Wavelength	655 nm
Sensor type	-
Scanner type	1D/2D
Optical sensor resolution	752 pixels
Standard interfaces	USB
Connectivity technology	Wired
Input voltage	5 V
Power consumption	450 mA
Safety	ETL, VDE, CETL, EN60950, Ctick, VCCI
Certification	FCC, RoHS
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Cables included	USB, VGA
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	58.4 mm
Width	62 mm
Height	29.2 mm
Weight	111 g
