Zebra DS457 User Manual

Imager Preferences 7 - 17
Crop to Pixel Addresses
Parameter # 315 (SSI # F4h F0h 3Bh (Top))
Parameter # 316 (SSI # F4h F0h 3Ch (Left))
Parameter # 317 (SSI # F4h F0h 3Dh (Bottom))
Parameter # 318 (SSI # F4h F0h 3Eh (Right))
If Enable Image Cropping is selected, set the pixel addresses from (0,0) to (751,479) to crop to.
Columns are numbered from 0 to 751, rows from 0 to 479. Specify four values for Top, Left, Bottom, and Right,
where Top and Bottom correspond to row pixel addresses, and Left and Right correspond to column pixel
addresses. For example, for a 4 row x 8 column image in the extreme bottom-right section of the image, set the
following values:
Top = 476, Bottom = 479, Left = 744, Right = 751
To set the pixel address to crop to, scan each Pixel Address bar code followed by three bar codes from
Appendix D, Numeric Bar Codes which represent the value. Include leading zeros, so to enter a value of 3, for
example, scan 0, 0, 3.
NOTE The imager has a minimum cropping resolution of four pixels; increment and decrement cropping
addresses in multiples of four. Other values are rounded up. For example, choosing to crop from the top at
addresses 0, 1, or 2 (removing 1, 2, or 3 pixels) has the same result as cropping at address 3; this
removes four rows from the top.

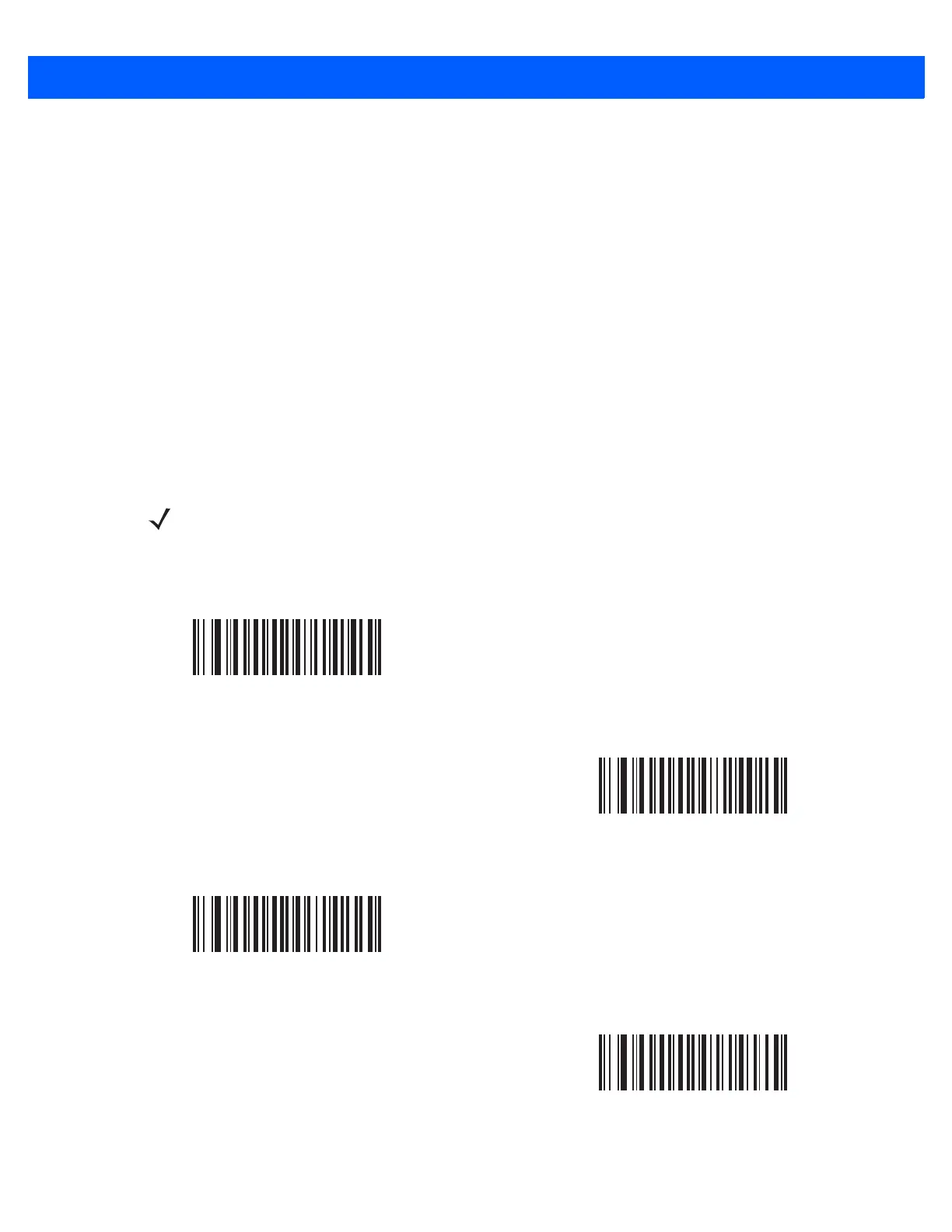

Top Pixel Address
(0 - 479 Decimal)
Left Pixel Address
(0 - 751 Decimal)
Bottom Pixel Address
(0 - 479 Decimal)
Right Pixel Address
(0 - 751 Decimal)

Zebra DS457 Specifications

General

Type	Fixed bar code reader
Wavelength	655 nm
Sensor type	-
Scanner type	1D/2D
Optical sensor resolution	752 pixels
Standard interfaces	USB
Connectivity technology	Wired
Input voltage	5 V
Power consumption	450 mA
Safety	ETL, VDE, CETL, EN60950, Ctick, VCCI
Certification	FCC, RoHS
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Cables included	USB, VGA
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	58.4 mm
Width	62 mm
Height	29.2 mm
Weight	111 g
