Mounting the Stand (optional)
You can attach the base of the stand to a flat surface using two screws or double-sided tape (not provided).
Screw Mount
1. Position the assembled base on a flat surface.
2. Screw one #10 wood screw into each screw-mount hole until the base of the stand is secure.
Tape Mount
1. Peel the paper liner off one side of each piece of tape and place the sticky surface over each of the three
rectangular tape areas.
2. Peel the paper liner off the exposed sides of each piece of tape and press the stand on a flat surface until
it is secure.

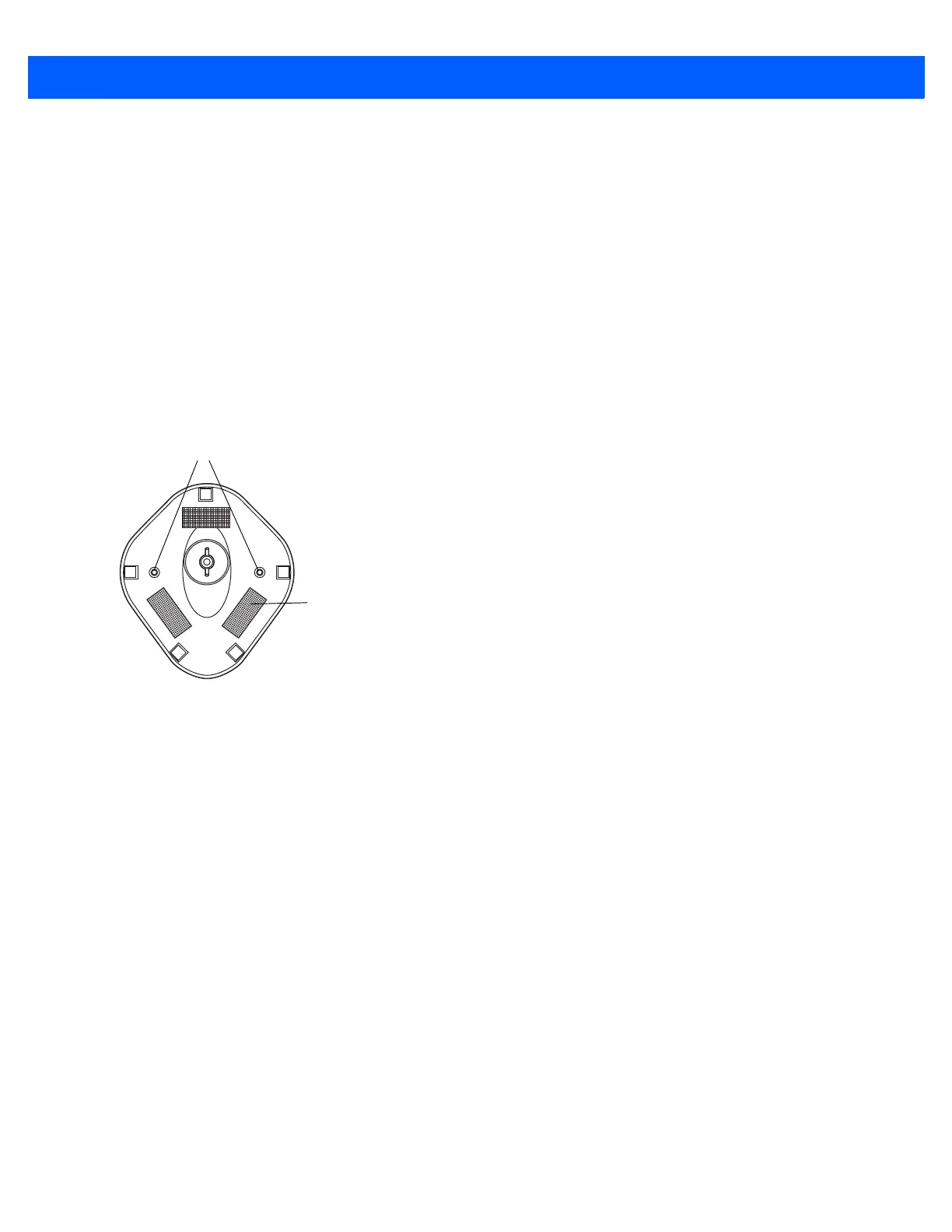

Figure 2-3 Mounting the Stand
Two screw-mount holes
Double-sided tape
areas (3 places)
(dimensions = 1” x 2”)

Zebra DS457 Specifications

General

Type	Fixed bar code reader
Wavelength	655 nm
Sensor type	-
Scanner type	1D/2D
Optical sensor resolution	752 pixels
Standard interfaces	USB
Connectivity technology	Wired
Input voltage	5 V
Power consumption	450 mA
Safety	ETL, VDE, CETL, EN60950, Ctick, VCCI
Certification	FCC, RoHS
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Cables included	USB, VGA
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	58.4 mm
Width	62 mm
Height	29.2 mm
Weight	111 g
