2 - 14 DS457 Fixed Mount Imager Integration Guide

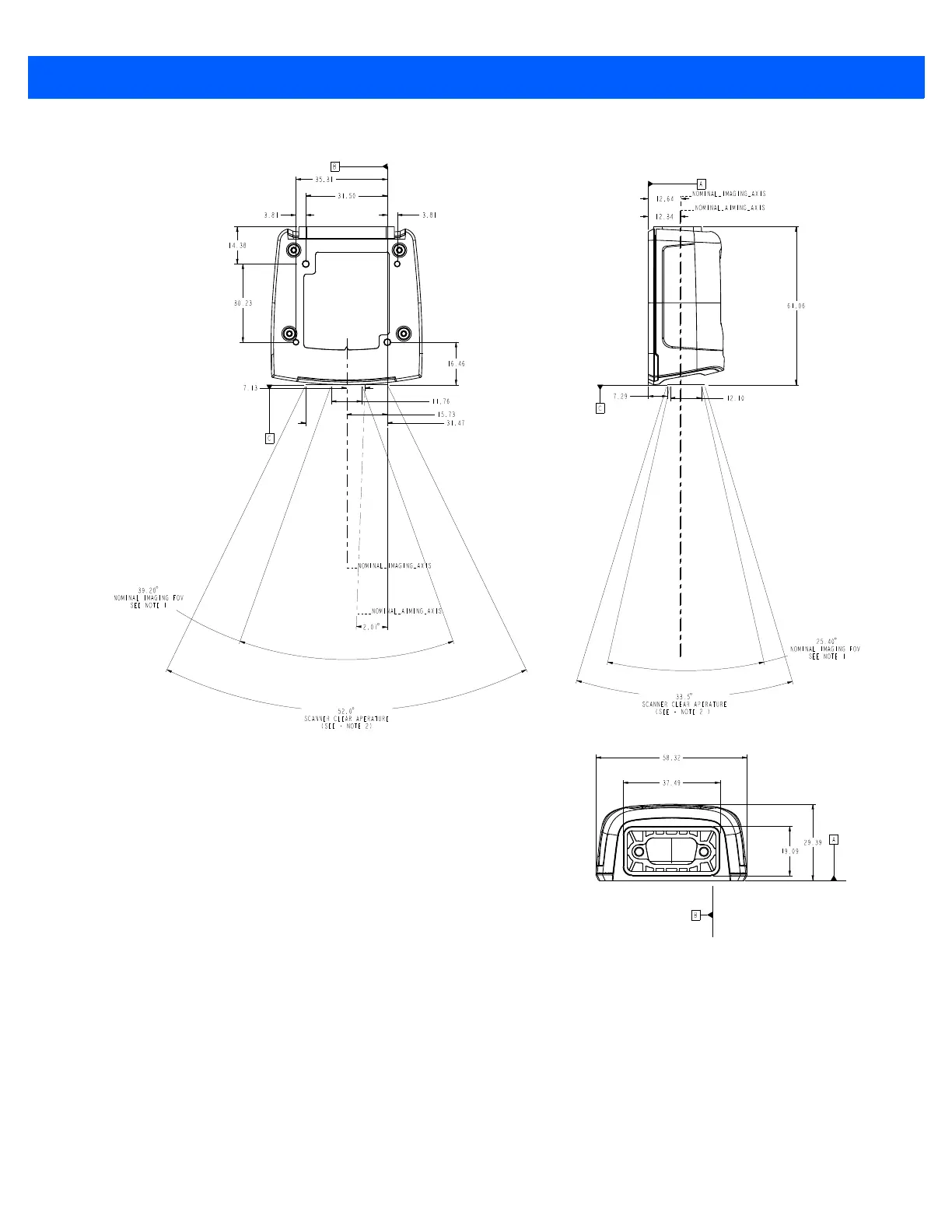

Figure 2-11 DS457 Optical Path and Exit Window
Notes:
1. Imaging axis pointing tolerance vs. datums ABC:
± 4º horizontal; ± 3º vertical
2. Clipping the imager clear aperture is not permitted.
3. Dimensions are in mm.
4. User mounting tolerances are not included.
