Data Capture
118
Barcode Capture with RS507/RS507X Hands-Free Imager
Pair the RS507/RS507X with the MC33XX. See Pairing the RS507/RS507X/RS6000/DS3678 Using SSI on page
123 or Pairing the RS507/RS507X/RS6000 Hands-Free Imager Bluetooth HID on page 124.
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
2. Point the RS507/RS507X at a barcode.

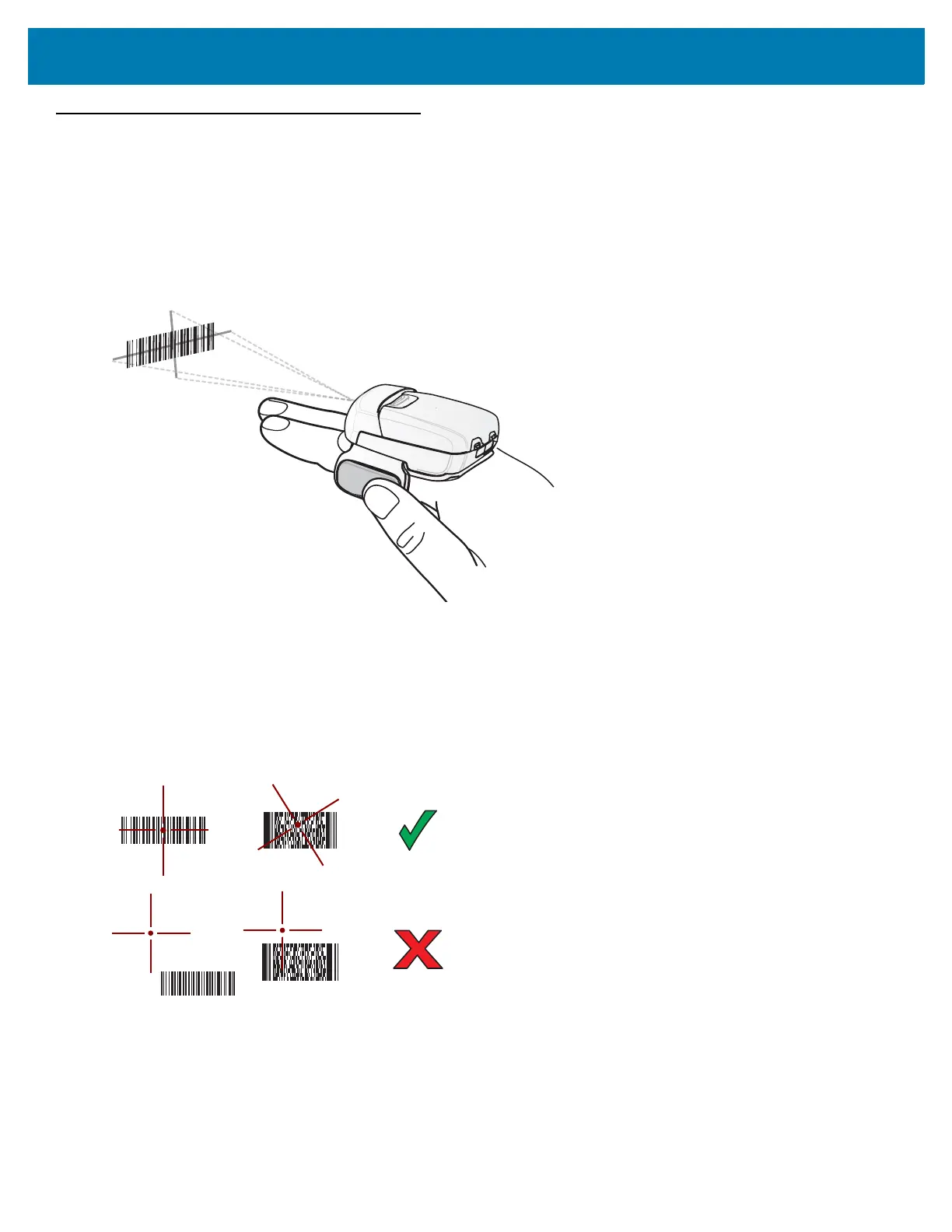

Figure 102 Barcode Scanning with RS507/RS507X
3. Press and hold the trigger.
The red laser aiming pattern turns on to assist in aiming. Ensure the barcode is within the area formed by the
cross-hairs in the aiming pattern. The aiming dot is used for increased visibility in bright lighting conditions.
The RS507/RS507X LEDs light green, a beep sounds to indicate the barcode was decoded successfully. Note
that when the RS507/RS507X is in Pick List Mode, the RS507/RS507X does not decode the barcode until the
center of the crosshair touches the barcode.
Figure 103 Aiming Pattern
