Data Capture
119

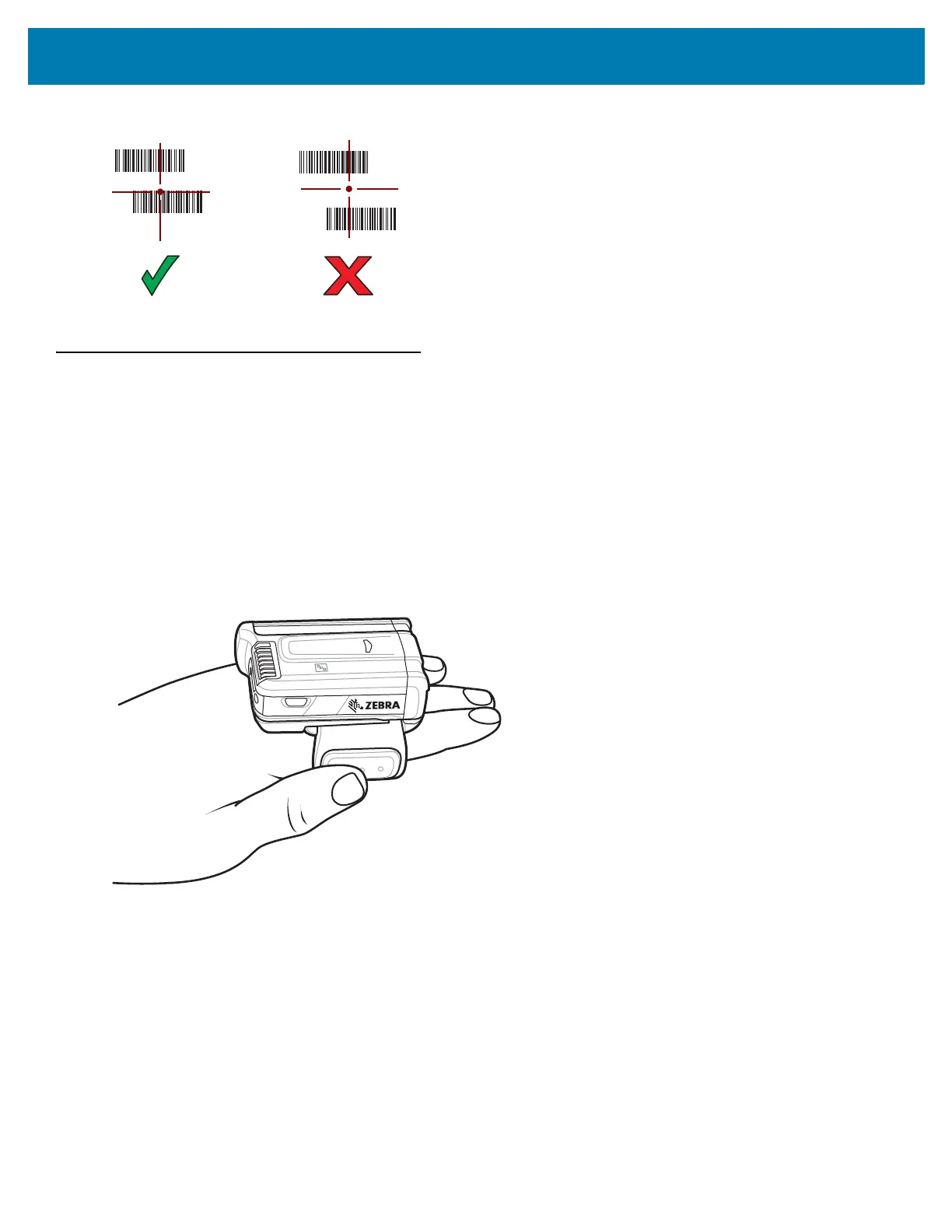

Figure 104 Barcodes in Aiming Pattern
4. The captured data appears in the text field.
Barcode Capture with RS6000 Bluetooth Ring Scanner
To read a barcode, a scan-enabled application is required. The MC33XX contains the DataWedge application that
allows the user to enable the scanner to decode barcode data and display the barcode content. See DataWedge
Demonstration on page 68 for more information on launching DataWedge.
Pair the RS6000 with the MC33XX. See Pairing the RS507/RS507X/RS6000/DS3678 Using SSI on page 123 or
Pairing the RS507/RS507X/RS6000 Hands-Free Imager Bluetooth HID on page 124 for more information.
1. Ensure that an application is open on the device and a text field is in focus (text cursor in text field).
2. Point the RS6000 at a barcode.
Figure 105 Barcode Scanning with RS6000
3. Press and hold the trigger.
The red laser aiming pattern turns on to assist in aiming. Ensure the barcode is within the area formed by the
cross-hairs in the aiming pattern. The aiming dot is used for increased visibility in bright lighting conditions.
The RS6000 LEDs light green, a beep sounds to indicate the barcode was decoded successfully. Note that
when the RS6000 is in Pick List Mode, the RS6000 does not decode the barcode until the center of the
crosshair touches the barcode.
