Accessories
187
Replacement Hand Strap for MC33XX-G
To install the hand strap:
1. Thread the lanyard loop through the opening near the base of the trigger handle.

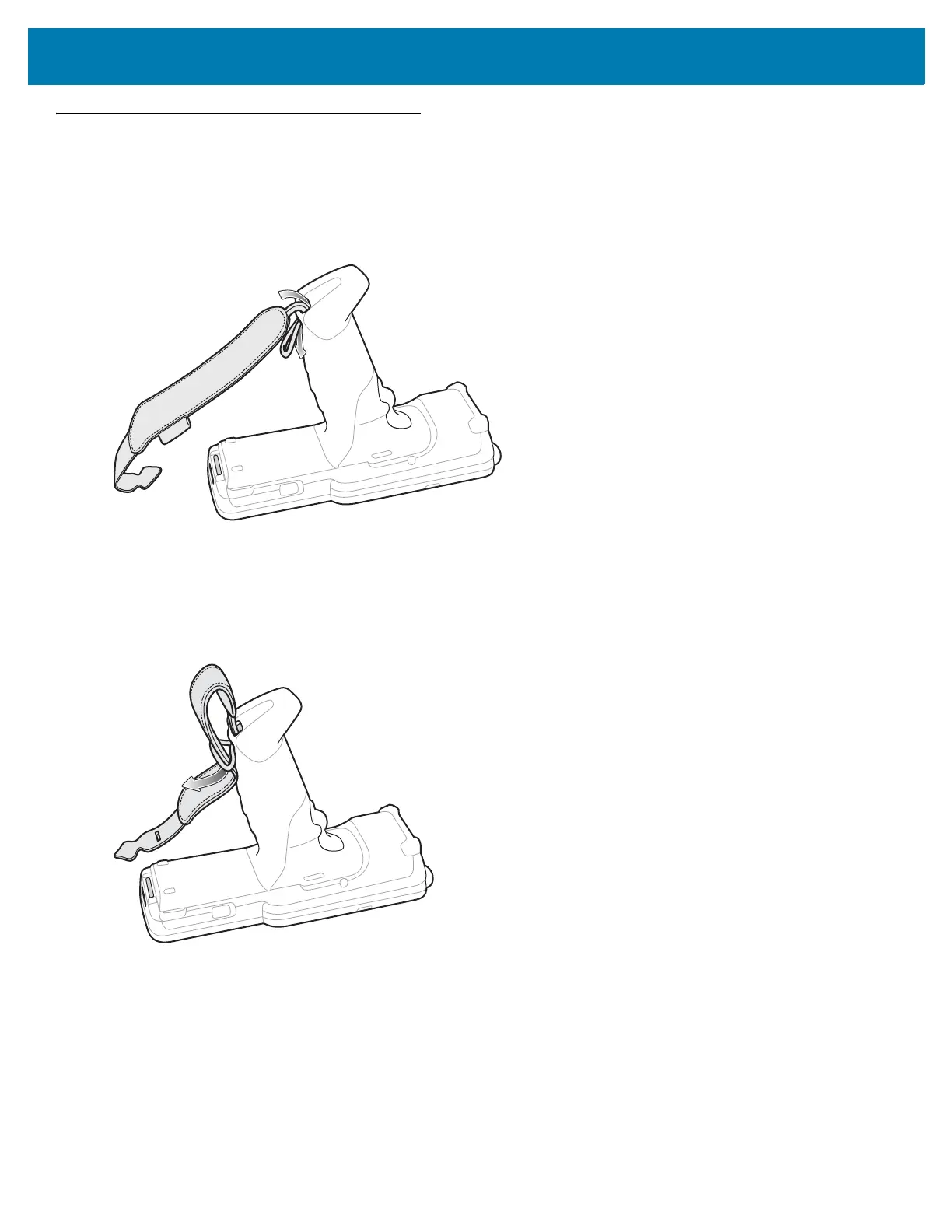

Figure 54 Insert Loop Through Handle Slot
2. Insert the top end of the hand strap through the loop.
Figure 55 Thread Hand Strap Through Loop
3. Thread the hand strap through the lanyard.
4. Pull the hand strap through the loop.
5. Thread the end of the hand strap with the tab through the slot on the bottom of the MC33XX-G.
