Data Capture
124

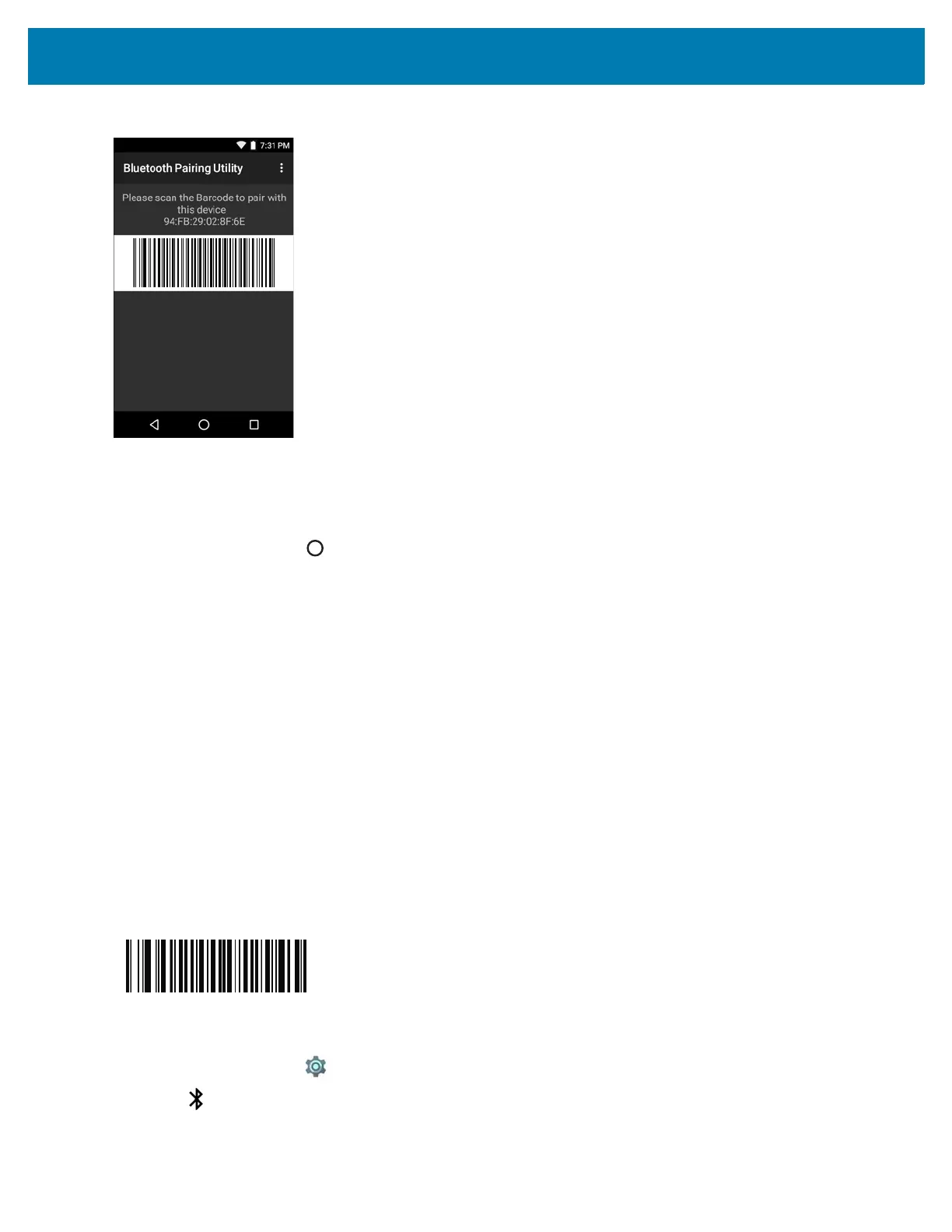

Figure 114 Bluetooth Pairing Utility
4. Using the RS507/RS507X/RS6000, scan the barcode on the screen.
The RS507/RS507X/RS6000 emits a high/low/high/low beeps. The Scan LED flashes green indicating that the
RS507/RS507X/RS6000 is attempting to establish connection with the MC33XX. When connection is
established, the Scan LED turns off and the RS507/RS507X/RS6000 emits one string of low/high beeps.
5. On the MC33XX, touch .
Pairing the RS507/RS507X/RS6000 Hands-Free Imager Bluetooth HID
An RS507/RS507X/RS6000 Hands-free Imager can be used with the device to capture barcode data.
1. Ensure that Bluetooth is enabled on both devices.
2. Ensure that the Bluetooth device to discover is in discoverable mode.
3. Ensure that the two devices are within 10 meters (32.8 feet) of one another.
4. Place the RS507/RS507X/RS6000 in Human Interface Device (HID) mode. If the RS507/RS507X/RS6000 is
already in HID mode, skip to step 5.
a. Remove the battery from the RS507/RS507X/RS6000.
b. Press and hold the Restore key.
c. Install the battery onto the RS507/RS507X/RS6000.
d. Keep holding the Restore key for about five seconds until a chirp is heard and the Scan LEDs flash green.
e. Scan the barcode below to place the RS507/RS507X/RS6000 in HID mode.
Figure 115 RS507/RS507X/RS6000 Bluetooth HID Barcode
5. Remove the battery from the RS507/RS507X/RS6000.
6. Re-install the battery into the RS507/RS507X/RS6000.
7. On the MC33XX, touch .
8. Touch Bluetooth.
