Accessories
120
USB Charge/Com Snap-o
n Cup
The USB Charge/Com Snap-on Cup:
•
Provides 5 VDC power to operate the de
vice and to charge the battery.
•
Provides power and/or communication wit
h the host computer over USB to the device.

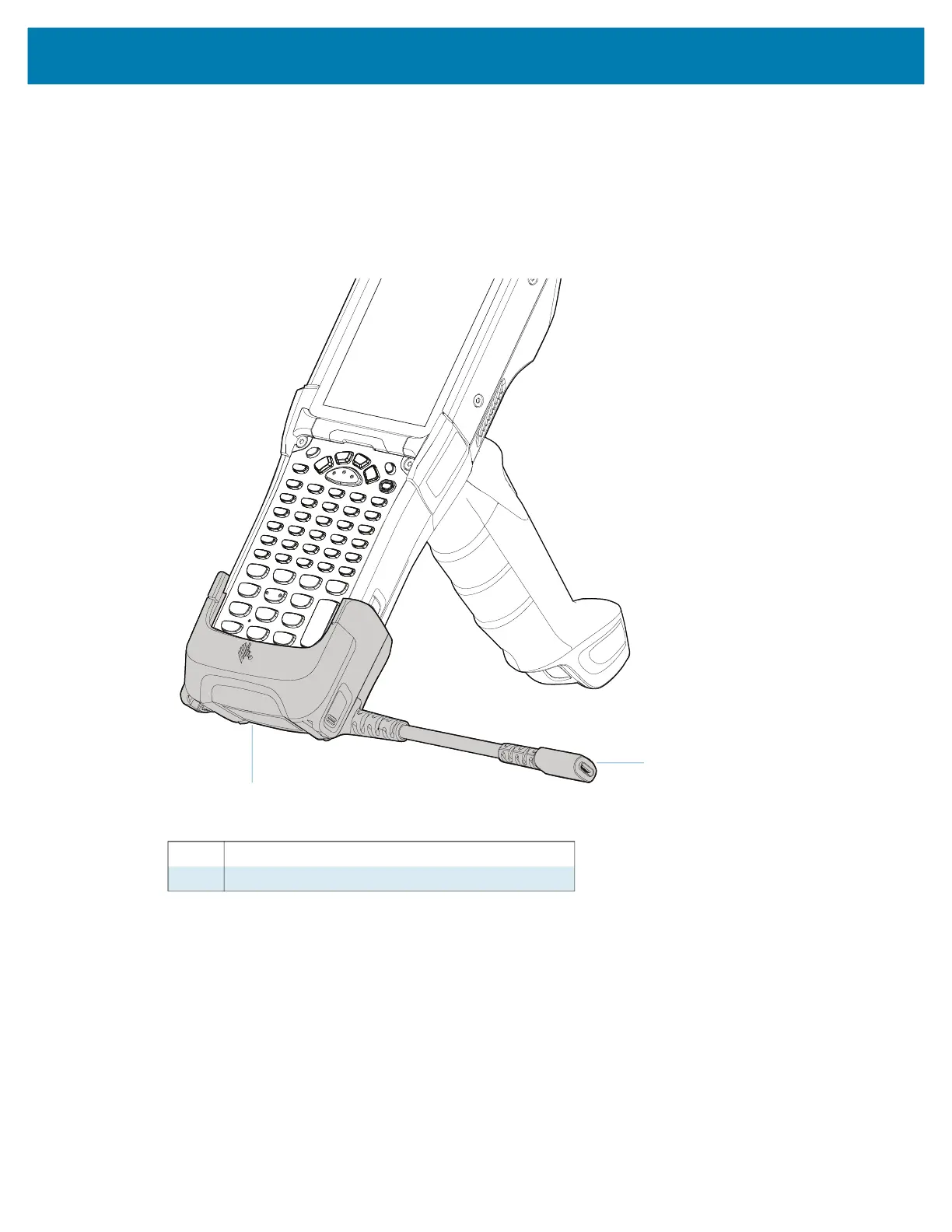

Figure 43
USB Charge/Com Snap-on Cup
1
Pigtail with USB socket
2
USB charge/com snap-on
cup
1
2
119
121
Table of Contents
About This Guide
12
Configurations
12
Notational Conventions
13
Icon Conventions
13
Service Information
13
Determining Software Versions
14
Determining the Serial Number
14
Getting Started
16
Unpacking
16
Device Features
17
Setting Up the Device
19
Installing a microSD Card
19
Installing the Battery
25
Charging the Battery
25
Backup Power
26
Zebra Visibility Services
26
Replacing the Battery
27
Using the Device
29
Home Screen
29
Setting Home Screen Rotation
30
Status Bar
30
Managing Notifications
32
Opening the Quick Access Panel
33
Editing Icons on the Quick Settings Bar
34
Battery Management
34
Checking Battery Status
34
Monitoring Battery Usage
34
Low Battery Notification
35
Interactive Sensor Technology
35
Waking the Device
35
USB Communication
36
Transferring Files
36
Transferring Photos
36
Disconnect from the Host Computer
36
Settings
37
Accessing Settings
37
Display Settings
37
Setting the Screen Brightness Manually
37
Setting the Screen Brightness Automatically
37
Setting Night Light
37
Setting Screen Rotation
38
Setting Screen Timeout
38
Lock Screen Display
38
Setting Font Size
39
Touch Panel Mode
39
Setting the Date and Time
40
General Sound Setting
40
Sound Options
40
Setting Wake-Up Sources
41
Remapping a Button
41
Keyboards
42
Keyboard Configuration
42
Using the Android and Gboard Keyboards
42
Using the Enterprise Keyboard
43
Language Usage
43
Changing the Language Setting
44
Adding Words to the Dictionary
44
Notifications
44
Setting App Notifications
44
Applications
46
Accessing Apps
49
Switching Between Recent Apps
49
Battery Manager
49
Opening Battery Manager
49
Battery Manager Information Tab
49
Heater Control
51
Status
52
Advanced
52
Camera
53
Taking Photos
53
Taking a Panoramic Photo
54
Recording Videos
55
Photo Settings
56
Video Settings
57
DataWedge Demonstration
58
Scanner Selection
59
PTT Express Voice Client
60
PTT Express User Interface
60
PTT Audible Indicators
61
PTT Notification Icons
61
Enabling PTT Communication
61
Selecting a Talk Group
62
PTT Communication
62
Disabling PTT Communication
63
RxLogger
64
RxLogger Configuration
64
Configuration File
64
Enabling Logging
64
Disabling Logging
64
Extracting Log Files
64
Backing Up
64
RxLogger Utility
65
Sound Recorder
65
Data Capture
66
Introduction
66
Integrated Imager
66
Operational Modes
66
Laser Scanner
67
RS507/RS507X Hands-Free Imager
67
RS5100 Ring Scanner
68
RS6000 Bluetooth Ring Scanner
68
DS3678 Digital Scanner
68
Scanning Considerations
69
Barcode Capture with Imager
69
Barcode Capture with Laser Scanner
70
Scanning with RS507/RS507X Hands-Free Imager
71
Scanning with RS6000 Bluetooth Ring Scanner
73
Scanning with the DS3608 USB Scanner or DS3678 Bluetooth Scanner
74
Pairing the RS507/RS507X/RS6000 Hands-Free Imager
75
Pairing Using Near Field Communication
75
Pairing in HID Mode Using Near Field Communication
76
Pairing Using Simple Serial Interface (SSI)
77
Pairing Using Bluetooth Human Interface Device
78
Pairing a Bluetooth Scanner
79
Pairing Using Bluetooth Human Interface Device
79
DataWedge
80
Enabling DataWedge
80
Disabling DataWedge
80
Supported Decoders
80
Wireless
83
Wireless Local Area Networks
83
Connecting to a Wi-Fi Network
84
Removing a Wi-Fi Network
84
WLAN Configuration
84
Configuring a Secure Wi-Fi Network
84
Manually Adding a Wi-Fi Network
85
Configuring for a Proxy Server
86
Configuring the Device to Use a Static IP Address
87
Wi-Fi Preferences
87
Additional Wi-Fi Settings
88
Wi-Fi Direct
88
Bluetooth
89
Adaptive Frequency Hopping
89
Security
90
Bluetooth Profiles
90
Bluetooth Power States
91
Bluetooth Radio Power
91
Discovering Bluetooth Device(s)
92
Changing the Bluetooth Name
92
Connecting to a Bluetooth Device
92
Selecting Profiles on the Bluetooth Device
92
Unpairing a Bluetooth Device
93
Cast
93
Near Field Communications
93
Reading NFC Cards
94
Sharing Information Using NFC
94
Enterprise NFC Settings
95
Accessories
96
Battery Charging
100
Main Battery Charging
100
Spare Battery Charging
100
Charging Temperature
101
1-Slot USB Charge Cradle with Spare Battery Charger
102
Setup
104
Charging the Device
105
4-Slot Charge Only ShareCradle
106
Setup
107
Charging the Devices
108
4-Slot Ethernet ShareCradle
109
Setup
110
Charging the Devices
111
Daisy-chaining Ethernet ShareCradles
111
4-Slot Spare Battery Charger
116
Setup
116
16-Slot Spare Battery Charger
118
Setup
118
USB Charge/Com Snap-on Cup
120
Connecting to the Device
121
Connecting the USB Charge/Com Snap-on Cup Cable to Host Computer
122
Charging the Device
123
Disconnecting the USB Charge/Com Snap-on Cup
124
MC93XX Charge Only Adapter
125
Charge Only Adapter Installation
126
Rubber Boot
129
Installing the Hand Strap
130
Un-powered Forklift Mount
131
4-Slot Charge Only ShareCradle Rack Installation
132
Rack Mount Installation
135
Wall Installation
138
Bottom Tray Assembly
138
Bracket Wall Mounting
138
Application Deployment
140
Security
140
Secure Certificates
140
Installing a Secure Certificate
140
Configuring Credential Storage Settings
141
Development Tools
141
Android Application Development
141
EMDK for Android
142
StageNow
142
GMS Restricted
142
ADB USB Setup
142
Enabling USB Debugging
142
Application Installation
143
Installing Applications Using the USB Connection
143
Installing Applications Using the Android Debug Bridge
144
Installing Applications Using a microSD Card
144
Uninstalling an Application
145
Performing a System Update
145
Downloading the System Update Package
145
Performing a System Update Using microSD Card
146
Performing a System Update Using ADB
146
Verifying System Update Installation
147
Enterprise Reset
147
Performing an Enterprise Reset From Device Settings
147
Downloading the Enterprise Reset Package
147
Performing an Enterprise Reset Using microSD Card
147
Performing an Enterprise Reset Using ADB
148
Performing a Factory Reset
149
Downloading the Factory Reset Package
149
Performing a Factory Reset Using microSD Card
149
Performing a Factory Reset Using ADB
149
Storage
150
Random Access Memory
150
Internal Storage
151
External Storage
151
Enterprise Folder
152
Managing Apps
152
App Details
152
Managing Downloads
153
Keypads
154
Introduction
154
Removing and Replacing Keypads
154
58-Keys Alpha Numeric Function Keypad
159
53-Keys Standard Keypad
162
53-Keys IBM-5250 Emulator Keypad
165
53-Keys IBM-3270 Emulator Keypad
168
53-Keys VT Emulator Keypad
171
43-Keys Shifted Alpha Keypad
174
34-Keys Numeric Keypad
177
29-Keys Shifted Alpha Keypad
180
Keypad Special Functions
183
Special Characters
185
Maintenance and Troubleshooting
187
Maintaining the Device
187
Battery Safety Guidelines
187
Cleaning Instructions
188
Approved Cleanser Active Ingredients
188
Harmful Ingredients
188
Device Cleaning Instructions
189
Special Cleaning Notes
189
Cleaning Materials Required
189
Cleaning Frequency
189
Cleaning the Device
189
Cleaning Battery Connectors
190
Cleaning Cradle Connectors
190
Troubleshooting the Device
190
1-Slot USB Charging Cradle Troubleshooting
193
4-Slot Charge Only Cradle Troubleshooting
194
4-Slot Ethernet Cradle Troubleshooting
195
4-Slot Spare Battery Charger Troubleshooting
196
16-Slot Spare Battery Charger Troubleshooting
196
Specifications
198
Technical Specifications
198
SE965 Decode Zone
198
SE4750-SR Decode Zone
199
SE4770-SR Decode Zones
200
SE4850-ER Decode Zone
200
I/O Connector Pin-Outs
202
MC93XX Accessory Specifications
203
1-Slot USB Charge Cradle with Spare Battery Charger Technical Specifications
203
4-Slot Charge Only ShareCradle Technical Specifications
203
4-Slot Ethernet ShareCradle Technical Specifications
204
4-Slot Spare Battery Charger Technical Specifications
204
16-Slot Spare Battery Charger Technical Specifications
205
USB Charge/Com Snap-on Cup Technical Specifications
206
