Keypads
168
53-Keys IBM-3270 Emulator Keypad
The IBM-3270 emulator keypad contains a Power button, application keys, scroll keys and a function key.
The keypad is color-coded to indicate the alternate function key (blue, green, orange) values. Note that
keypad functions can be changed by an application so the device’s keypad may not function exactly as
described. See the Key Descriptions table for key and button details.

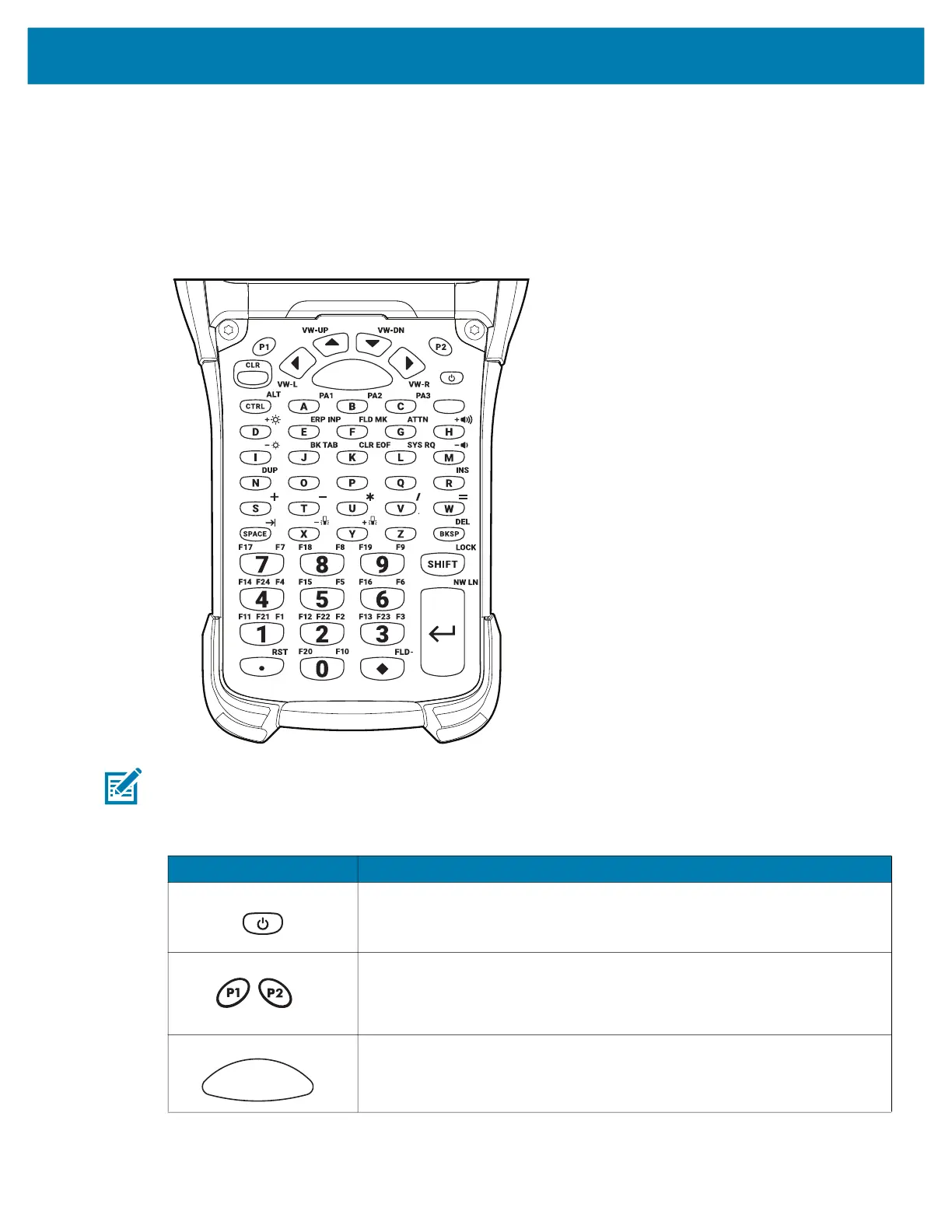

Figure 60 53-Keys IBM-3270 Emulator Keypad
NOTE: The IBM-3270 emulator configuration is only used when the device is running the 3270 emulation
software.
Table 14 IBM-3270 Emulator Descriptions
Key Description
Power (red) Turns the device on and off.
Performs a warm boot and a hard reset. See Resetting the Device for more
information.
P1/P2 User programmable keys:
• By default, P1 is the dedicated PTT key.
• By default, P2 acts like another Scan key.
Scan (yellow) Activates the scanner/imager in a scan enabled application.
