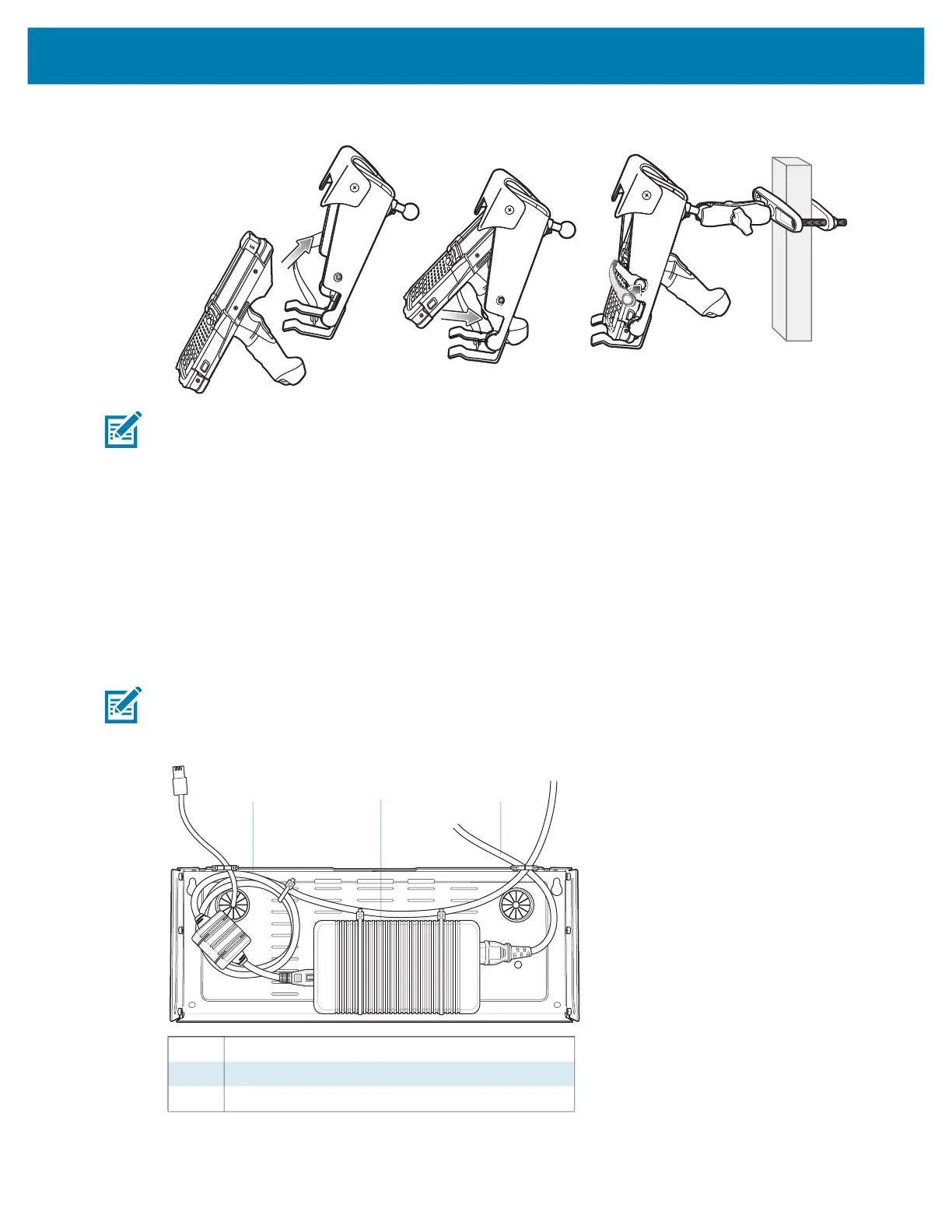

Figure 51 Insert Device into Forklift Mount Holder, Rotate and Snap (Option 2)
NOTE: Use strap in this orientation for added retention of the device.
4-Slot Charge Only ShareCradle Rack Installation
Use the Rack/Wall Mount Bracket to mount a 4-slot charge only sharecradle on a rack. When installing on
a rack, first assemble the bracket and cradles/chargers and then install the assembly on the rack.
1. Place the power supply in bottom tray.
2. Connect AC line cord to power supply.
3. Connect DC line cord to power supply.
4. Secure power supply and cables to bottom tray with tie wraps.
NOTE: Ensure tie wrap buckle is on side of power supply. Tie wrap buckle on top of power supply
interferes with top tray.
5. Route cables through cable slots.
1 DC line cord
2 Power supply
3 AC line cord
1 32
