53-Keys Standard Keypad
The 53-key keypad contains a Power button, application keys, scroll keys and function keys. The keypad is
color-coded to indicate the alternate function key (blue) values. Note that keypad functions can be
changed by an application so the device’s keypad may not function exactly as described. See the Key
Descriptions table for key and button details, and the Keypad Special Functions table for the keypad’s
various functions.

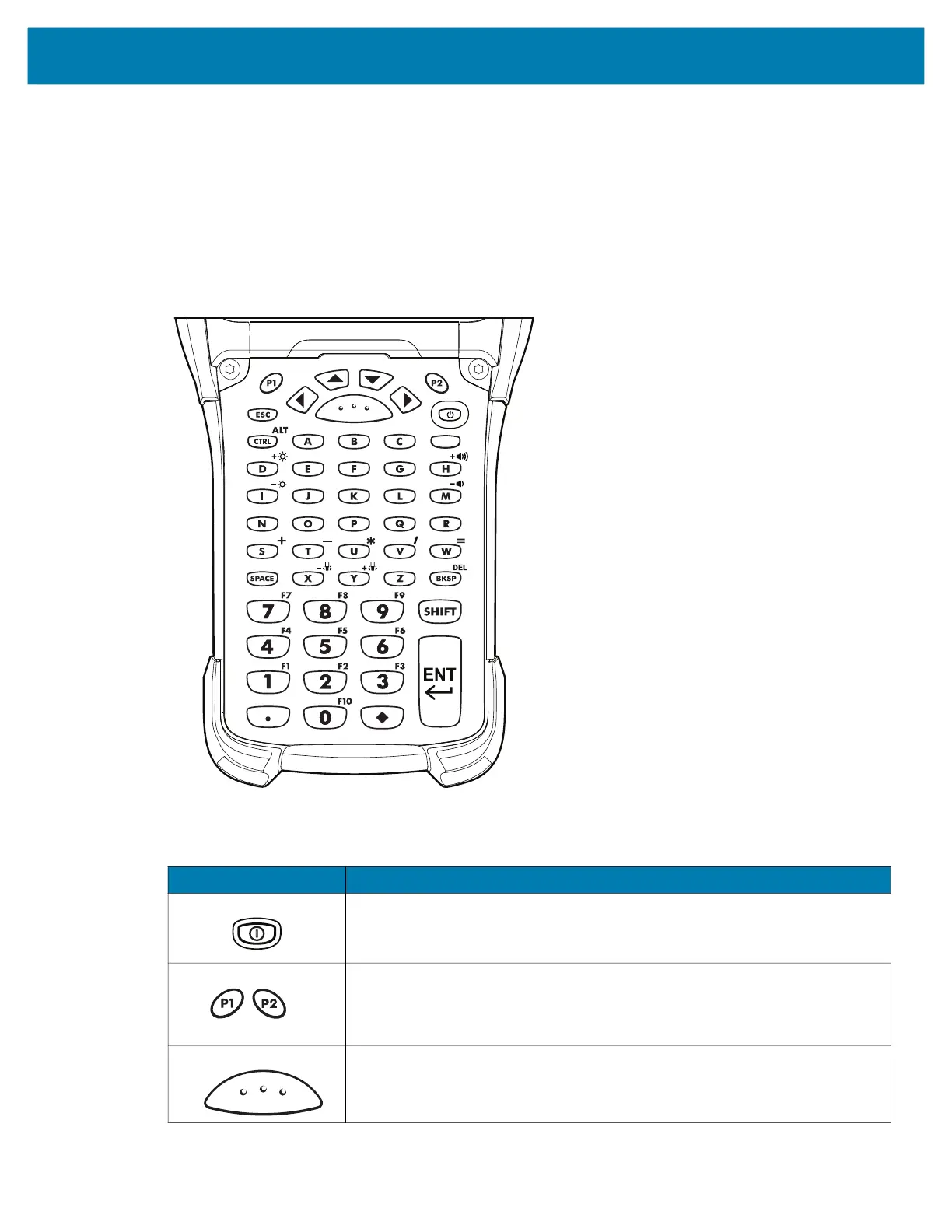

Figure 58 53-Keys Standard Keypad
Table 12 53-Key Standard Keypad Key Descriptions
Key Description
Power (Red) Turns the device on and off.
Performs a warm boot and a hard reset. See Resetting the Device for more
information.
P1 / P2 User programmable keys:
• By default, P1 is the dedicated PTT key.
• By default, P2 acts like another Scan key.
Scan (Yellow) Activates the scanner/imager in a scan enabled application.
