Rack Mount Installation
NOTE: Use screws provided with rack system. Refer to the rack user documentation for instructions.
1. Secure mounting brackets to both sides of top tray with four M5 screws (two on each side). For 4-Slot
cradles, position the flange for horizontal installation. For 4-Slot Battery Chargers, position the flange
for 25° installation.

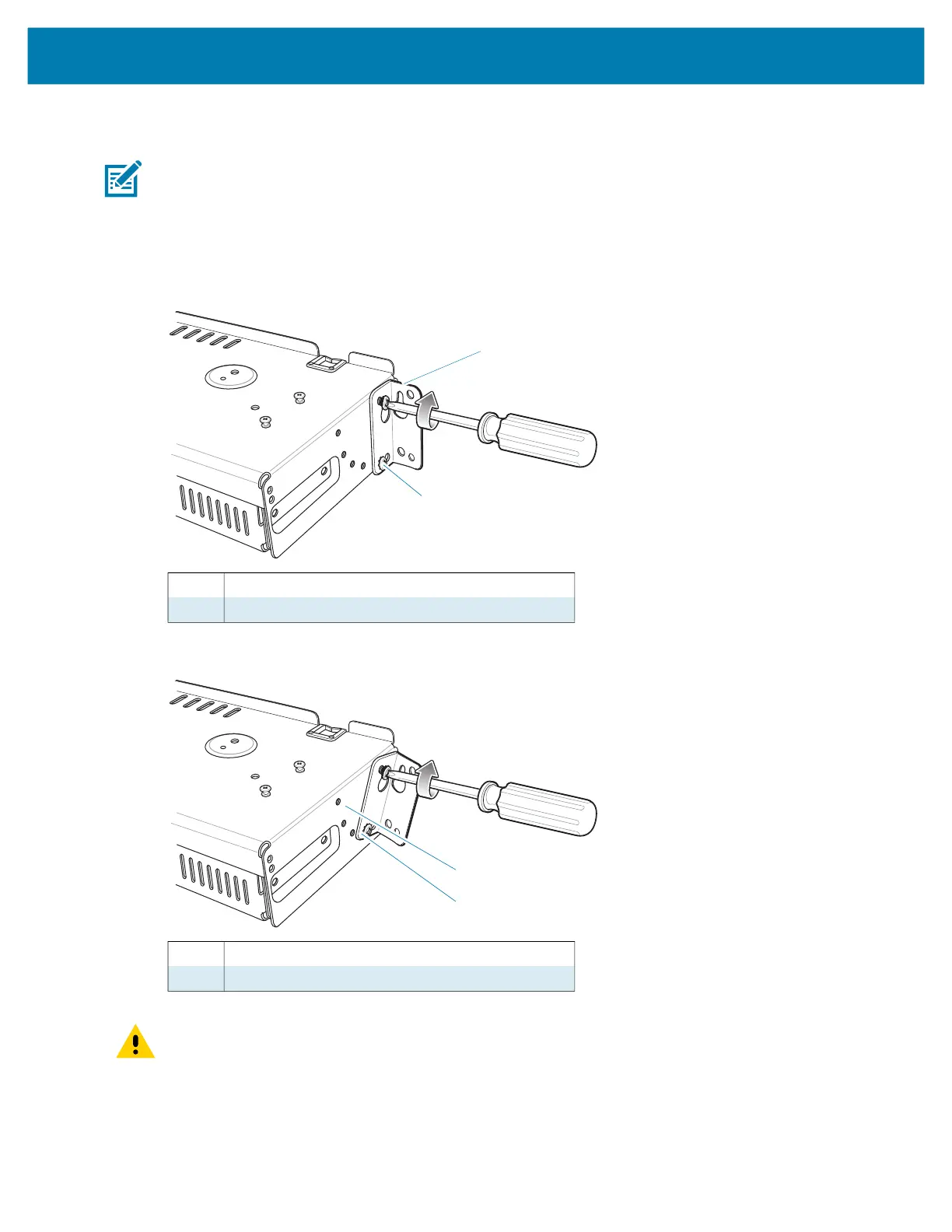

Figure 52 Flange Horizontal Position (4-Slot Cradles)
Figure 53 Flange 25° Position (4-Slot Battery Chargers)
CAUTION: Install mounting bracket with 4-Slot cradle at a maximum height of four feet from ground.
Install mounting bracket with 4-Slot Battery Charger at a maximum height of three feet from ground.
1 Flange
2 Fifth screw hole
1 Top screw hole
2 Flange
2
1
1
2
