Accessories
136
NOTE: Distance between two horizontal mounted brackets should be at least 14” apart (from top of one
flange to the top of the next flange).
Distance between a horizontal mounted bracket and a 25° mounted bracket should be at least 16.25” apart
(from top of one flange to the top of the next flange).
There should be enough clearance (2.75”) between the top of the device and the bottom of the mounting
bracket above.
2. Install two rack system screws for top of mounting brackets. The screw heads should protrude half way
from the rail.

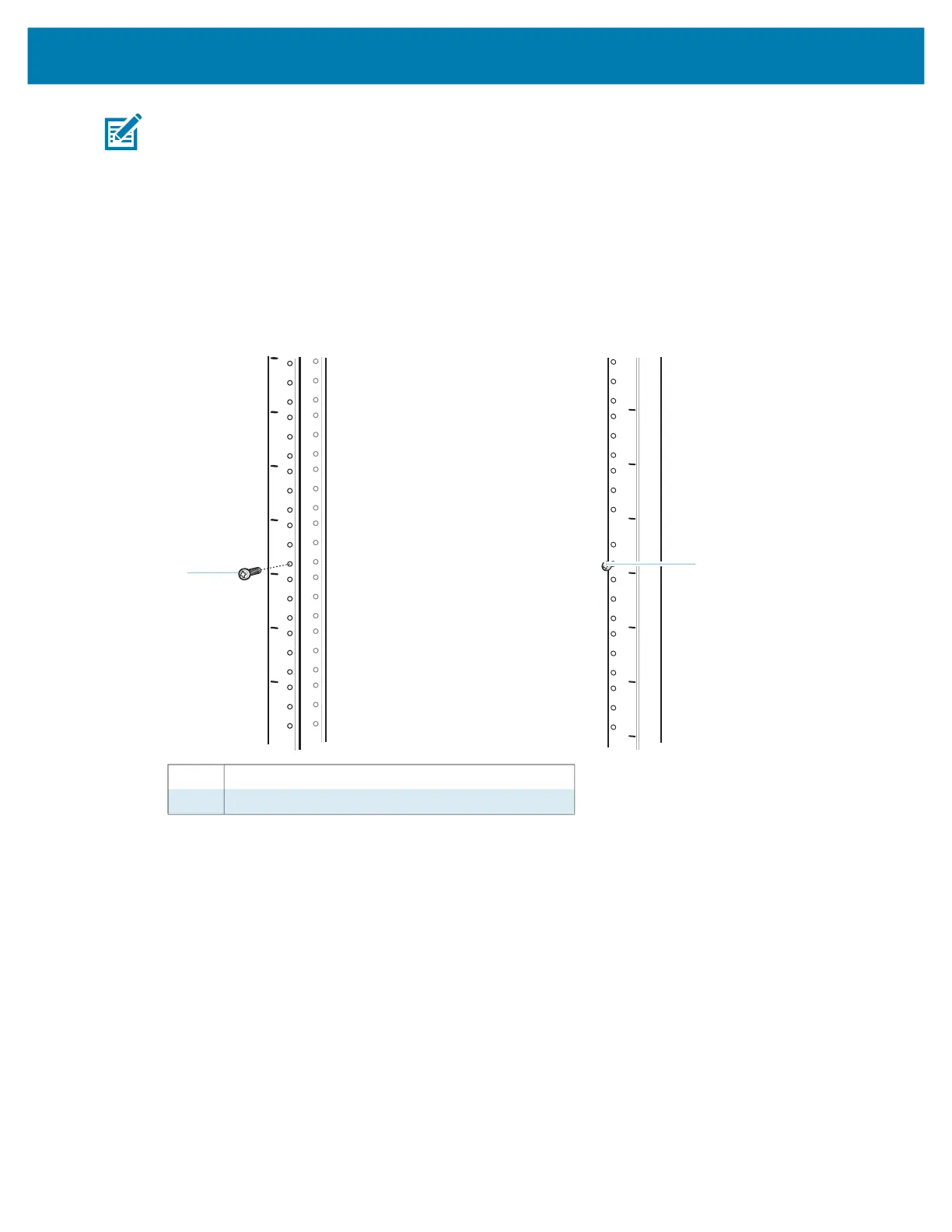

Figure 54 Install Rack System Screws
3. Align the mounting bracket’s top mounting key holes with the screws.
4. Place the brackets on the screws.
1 Rack screw
2 Rack screw
2
1
