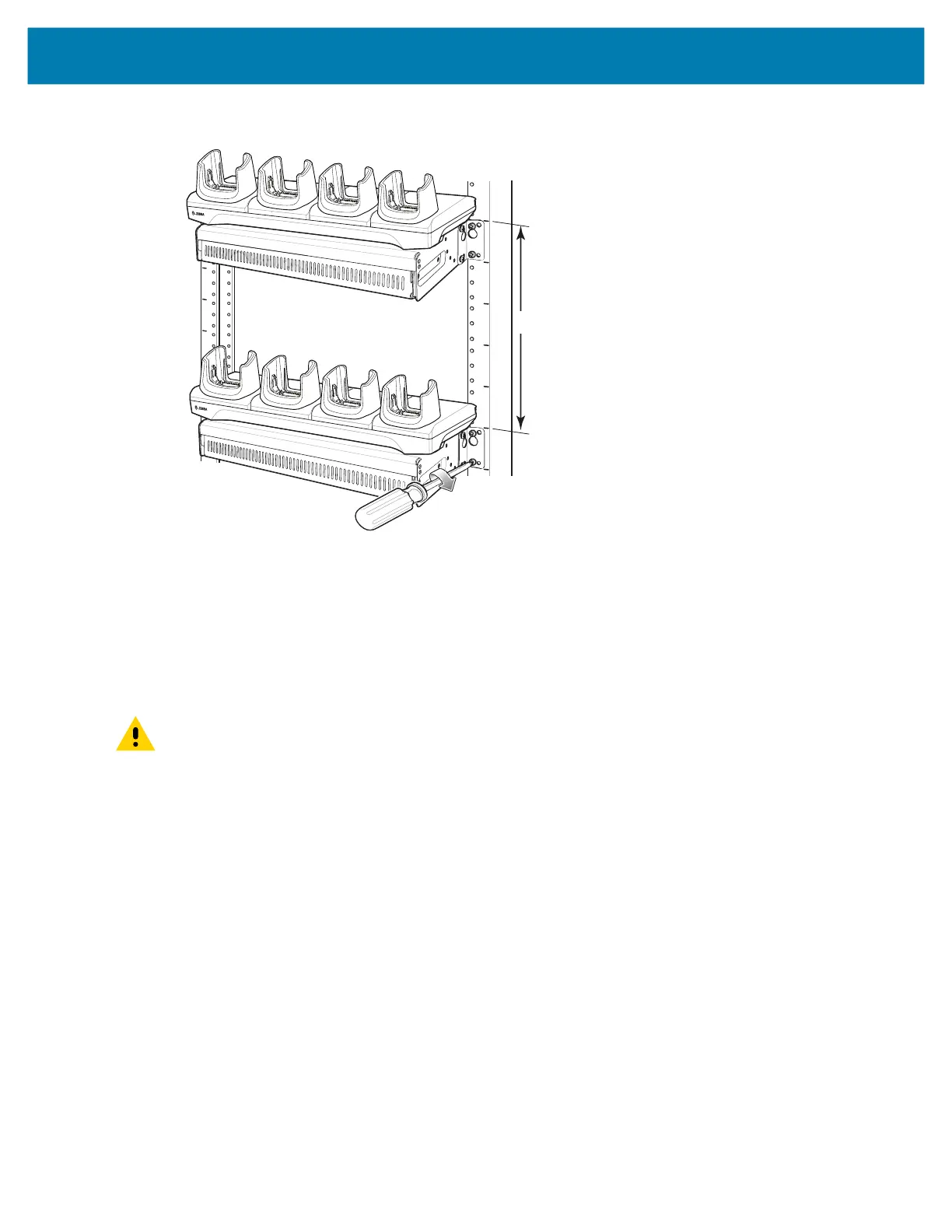

Figure 55 Secure Bracket to Rack (Horizontal Position Shown)
5. Secure the top screws.
6. Install bottom screws and tighten screws.
7. Route cables and connect to power source.
CAUTION: Installer should ensure that all building codes are followed when connecting the power supplies
to an AC power source.
While installing the brackets, power supplies and cables:
• Use tie wraps to secure cables to the bracket and rails.
• Coil cables wherever possible.
• Route power cables along the rails.
Route inter-cradle cables to the side rails and then from the rails to the bracket.
14 “
MC93
MC93
MC93
MC93
MC93
MC93
MC93
MC93
