Wall Installation
Use the Rack/Wall Mount Bracket to mount four 4-Slot Battery Chargers or a cradle on a wall. When
installing on a wall, first assemble the bottom tray, install the bottom tray on the wall and then assemble the
top tray.
Use mounting hardware (screws and/or anchors) appropriate for the type of wall mounting the bracket
onto. The Mount Bracket mounting slots dimensions are 5 mm (0.2 in.). Fasteners must be able to hold a
minimum of 20 Kg (44 lbs.)
For proper installation consult a professional installer. Failure to install the bracket properly can possibly
result in damage to the hardware.
CAUTION: Install mounting bracket with 4-Slot cradle at a maximum height of four feet from ground.
Install mounting bracket with 4-Slot Battery Charger at a maximum height of three feet from ground.
Bottom Tray Assembly
See steps 1 through 5 in 4-Slot Charge Only ShareCradle Rack Installation on page 132 for instructions.
Bracket Wall Mounting
1. Drill holes and install anchors according to the template supplied with the bracket.
2. Install two screws for bottom of bracket. The screw heads should protrude 2.5 mm (0.01”) from the wall.

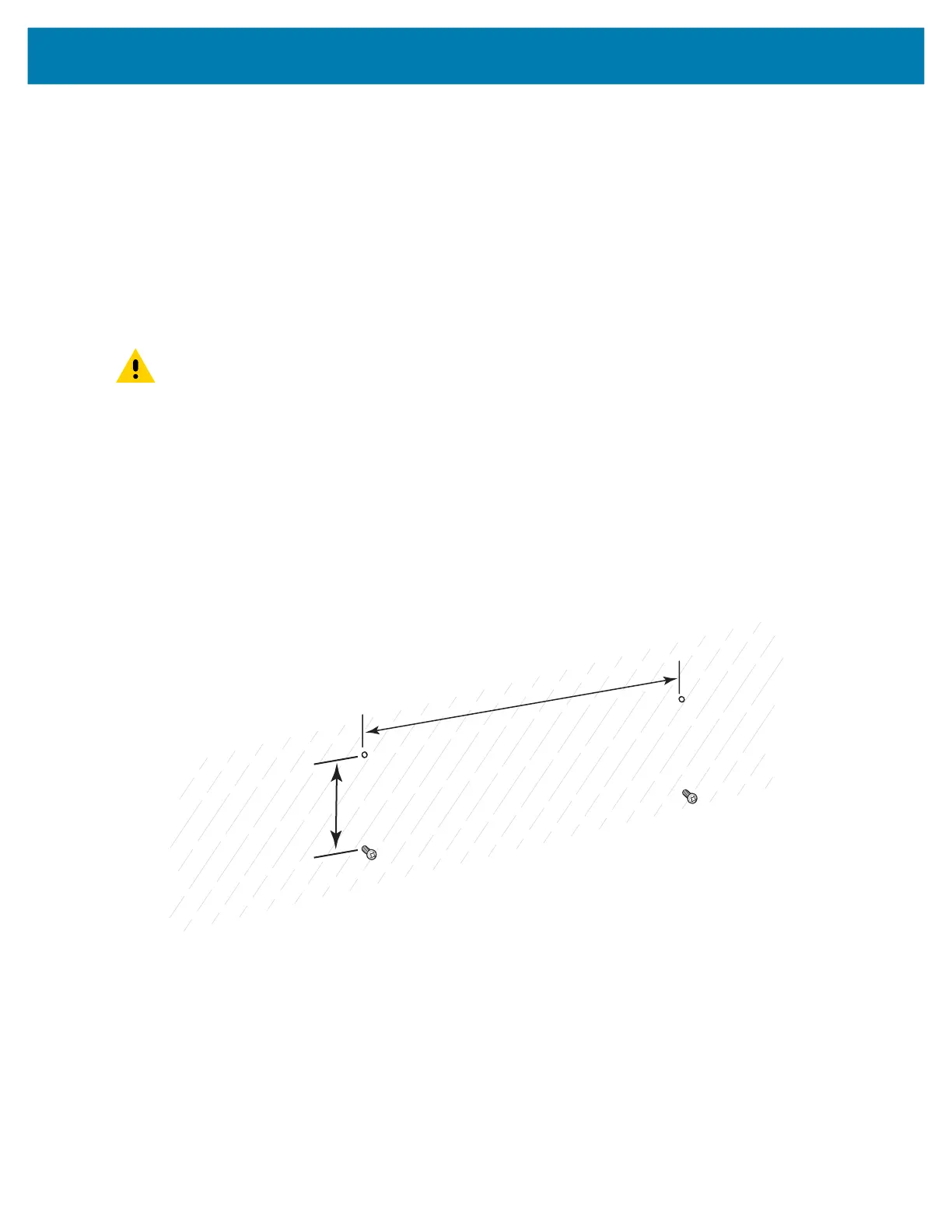

Figure 56 Horizontal Mounting Template
3. Align the mounting bracket’s bottom mounting key holes with the screws.
22.85 mm
398 mm
