Getting Started
17
Device Features

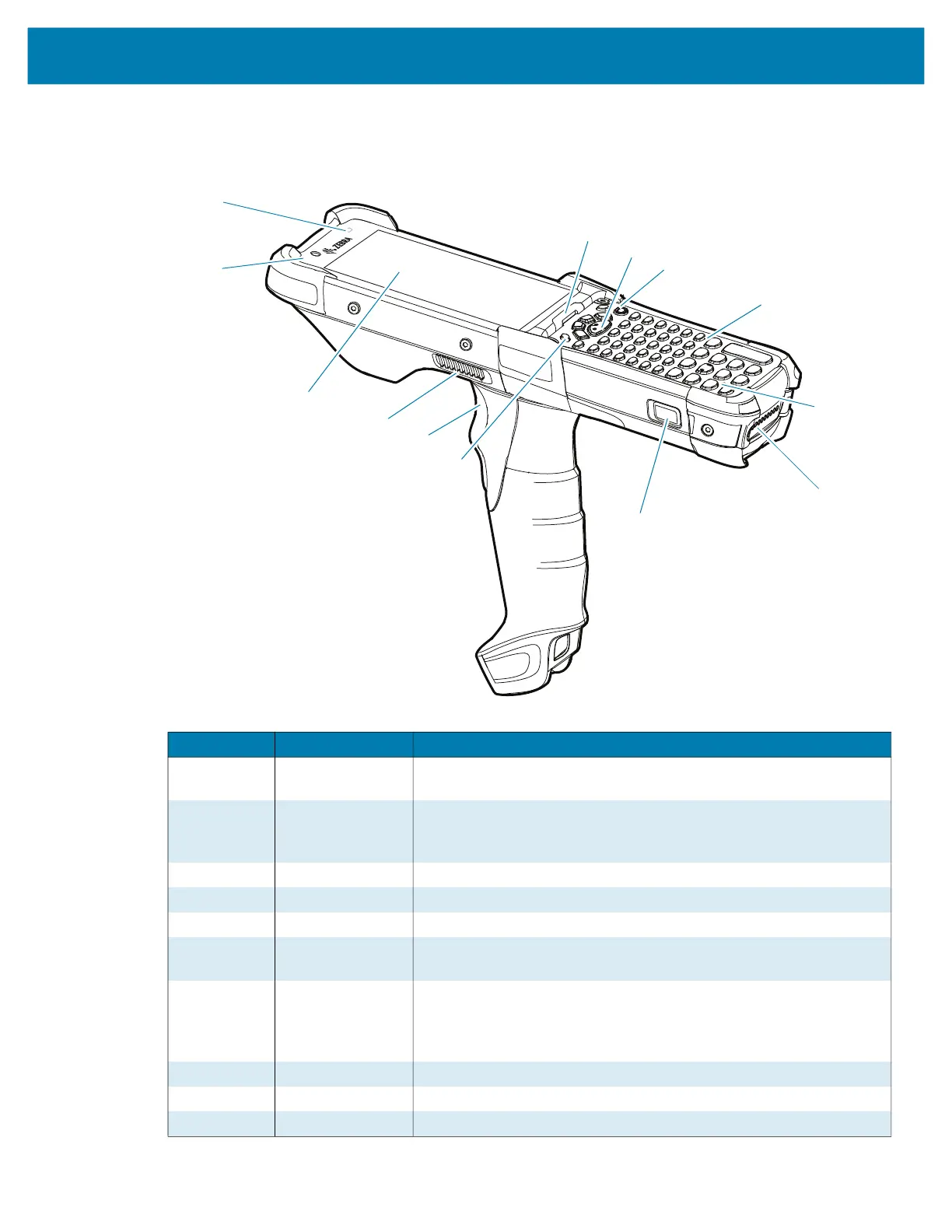

Figure 1 Device Front View
Number Item Function
1 Ambient light
sensor
Controls display and keyboard backlight.
2 Front facing
camera
Use to take photos and videos.
The front camera is available only on the premium configurations.
3 Display Displays all information needed to operate the device.
4 Speaker side port Provides audio output for video and music playback.
5 Trigger Initiates data capture when a scan application is enabled.
6 P1 - Dedicated
PTT key
Initiates push-to-talk communications (programmable).
7 Battery release
latch
Releases the battery from the device.
To release the battery, simultaneously press the battery release
latches on both the sides of the device.
8 Battery Provides power for operating the device.
9 Microphone Use for communications in Handset mode.
10 Keypad Use to enter data and navigate on screen functions.
1
2
11
10
9
8
12
13
7
5
3
4
6
