Accessories 6 - 13

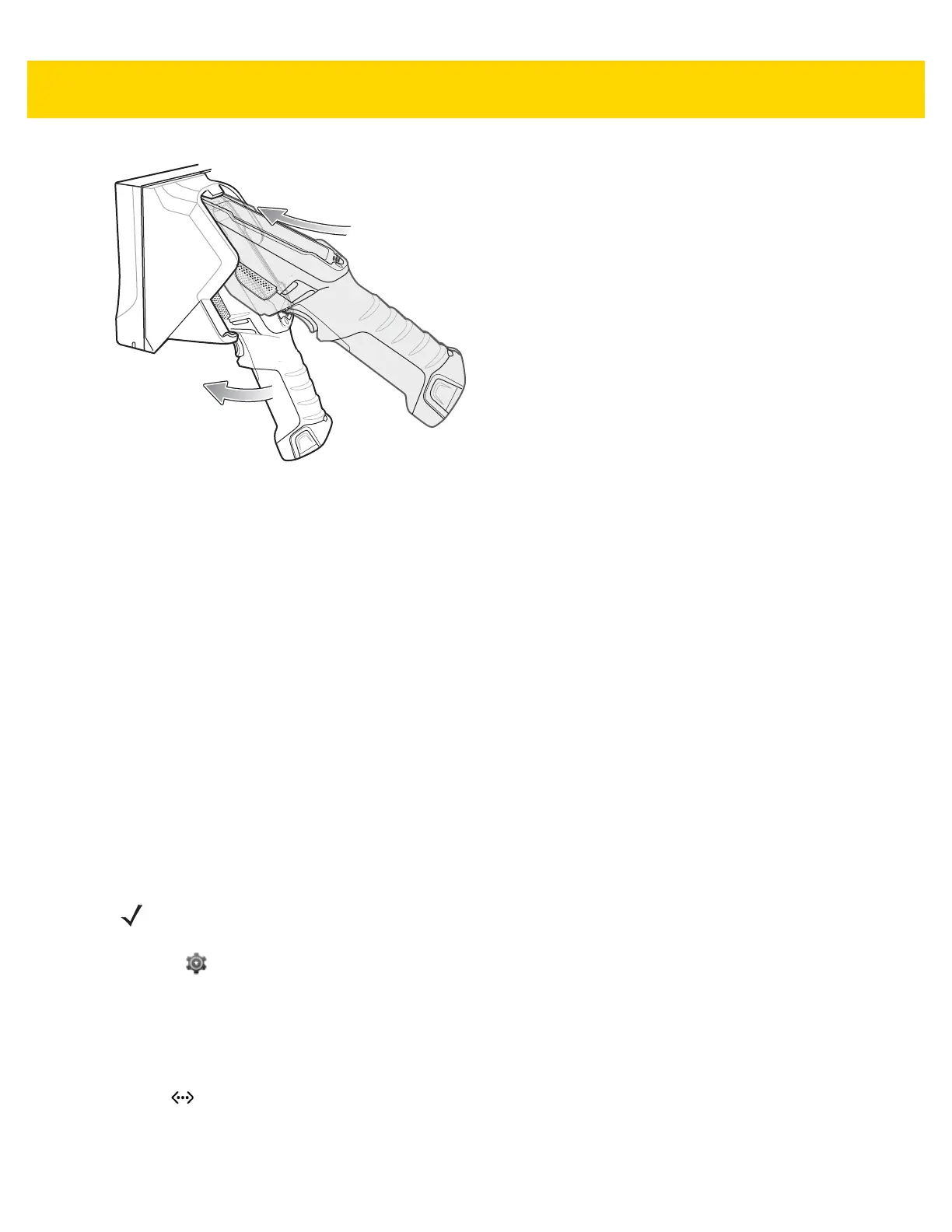

Figure 6-8 Insert TC8000 into Cradle
2. Ensure that the TC8000 is properly seated in the charge well.
Battery Charging
Main Battery Charging
The TC8000 Charging/Scan LED indicates the status of the battery charging in the device. See Table 1-3 on page
1-9. The 6,700 mAh battery fully charges in less than four hours at room temperature.
Charging Temperature
Charge batteries in temperatures from 0 °C to 40 °C (32 °F to 104 °F). The battery charger always performs battery
charging in a safe and intelligent manner. At higher temperatures (e.g. approximately +37 °C (+98 °F)) the battery
charger may for small periods of time alternately enable and disable battery charging to keep the battery at
acceptable temperatures. The battery charger indicates when charging is disabled due to abnormal temperatures
via its LED.
Establishing Ethernet Communication
1. Touch .
2. Touch Ethernet.
3. Slide the Ethernet switch to the ON position.
4. Insert the device into a slot.
5. The icon appears in the Status bar.
6. Touch Eth0 to view Ethernet connection details.
NOTE
Refer to the TC8000 Integrator Guide for information on configuring the Ethernet settings.
