Pairing the RS507 Hands-Free Imager Using Bluetooth HID
An RS507 Hands-free Imager can be used with the device to capture bar code data.
1. Ensure that Bluetooth is enabled on both devices.
2. Ensure that the Bluetooth device to discover is in discoverable mode.
3. Ensure that the two devices are within 10 meters (32.8 feet) of one another.
4. Place the RS507 in Human Interface Device (HID) mode. If the RS507 is already in HID mode, skip to step 5.
a. Remove the battery from the RS507.
b. Press and hold the Restore key.
c. Install the battery onto the RS507.
d. Keep holding the Restore key for about five seconds until a chirp is heard and the Scan LEDs flash green.
e. Scan the bar code below to place the RS507 in HID mode.

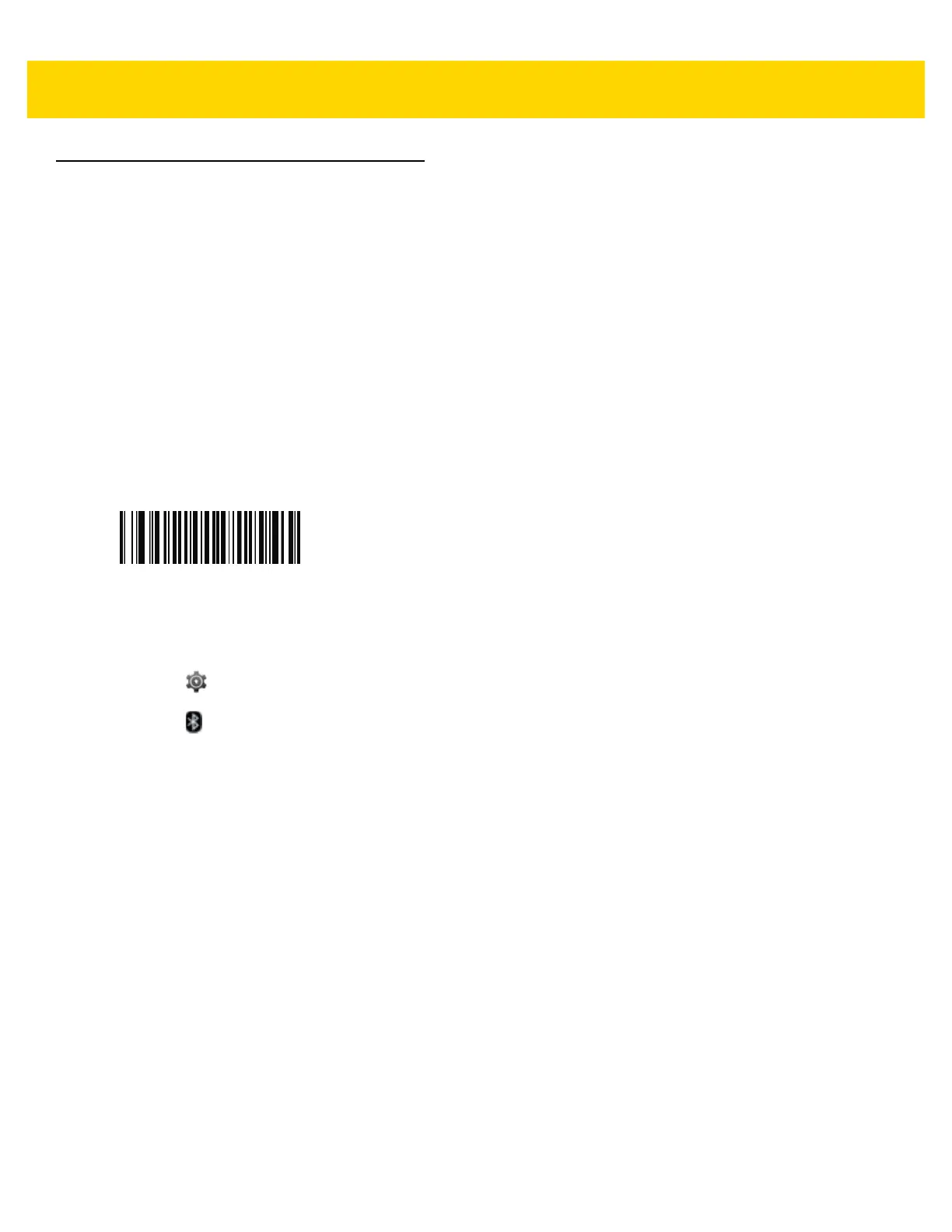

Figure 3-12 RS507 Bluetooth HID Bar Code
5. Remove the battery from the RS507.
6. Re-install the battery into the RS507.
7. Touch .
8. Touch Bluetooth.
9. Touch SCAN FOR DEVICES. The device begins searching for discoverable Bluetooth devices in the area and
displays them under AVAILABLE DEVICES.
10. Scroll through the list and select RS507.
The device connects to the RS507 and Connected appears below the device name. The Bluetooth device is
added to the Bluetooth devices list and a trusted (“paired”) connection is established.
