AAON ASM02780 User Manual

4-11
Pioneer Gold 3.00 Controller Technical Guide
Increasing Data Signal Integrity
You can increase data signal integrity by installing a 120
ohm termination resistor on either the Touchscreen Sensor or
the Pioneer Gold Controller’s main board. The Pioneer Gold
Controller and Touchscreen Sensor both have the resistor
installed before they are shipped.
On the Touchscreen Sensor, install the resistor between terminals
A- and B+. See Figure 4-20, this page.
On the PG Controller’s main board, install the resistor on
connector “J8” between terminals A- and B+.

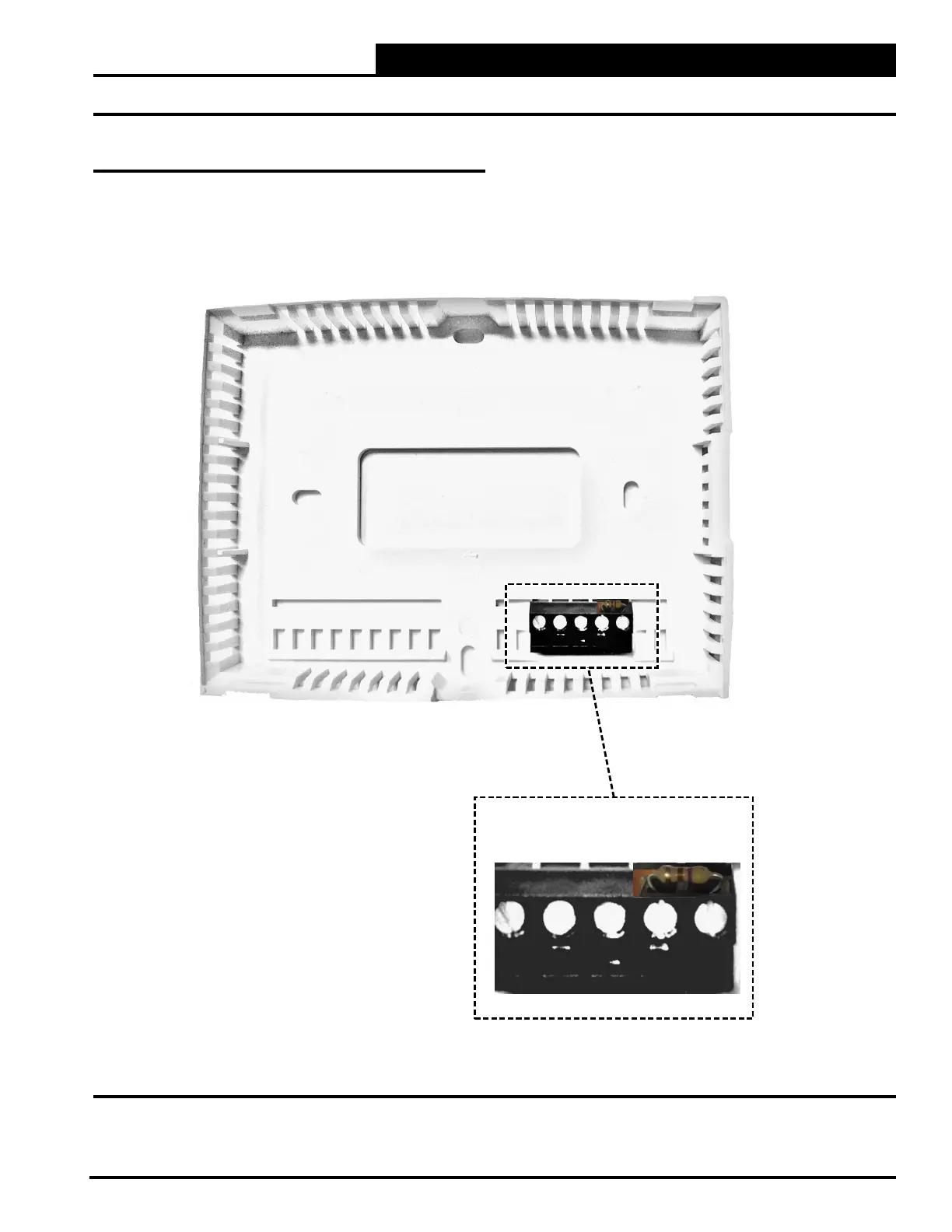

Figure 4-20: Installing the Resistor in the Touchscreen Sensor
Pioneer Gold Touch Screen
Space and Humidity Sensor
(Inside Back Cover)
24 S A
B
C
AAON Resistor
120 OHM 1/4W 5%
P/N: G060090
TROUBLESHOOTING
Increasing Data Signal Integrity on the RS-485 Communications
