Pioneer Gold 3.00 Controller Technical Guide
PRISM 2 OVERVIEW
Controller Status Screen
Controller Status Screen
After successful Prism 2 installation and job-site setup, you will
be able to access the Pioneer Gold Status Screen. See Figure
3-1, this page.
Besides displaying the current operating status and inputs and
outputs, from this screen you can force occupancy, set schedules,
view alarms, and access and change setpoints.
NOTE: Only the Administrator and top level users can
access and change setpoints and schedules.
The following status points are displayed
in the Pioneer Gold Controller Status
Screen shown above:
• Mode of Operation
• Active Cooling Setpoint
• Space Temp
• Leaving Water Temp 1
• Supply Air Temp
• Leaving Water Temp 2
• Indoor Humidity
• Entering Hot Water Temp
• 
• Reversing Valve Status
• Evap Coil Pressure
• Occupancy Status
• Suction Pressure
• Hot Water Valve Position
• Discharge Pressure
• Entering Water Temp
• Water Valve Status
• Waterside Economizer
• Active Heating Setpoint
• 
• 
• Thermostat Calls
• Compressor Interlock 1 (DI1)
• Compressor Interlock 2 (DI2)
• Force Mode
• Damper Override
• Alarm Indicator
• Fan Signal
• Low Speed Fan
• High Speed Fan
• Compressor Stage 1
• Compressor Stage 2
• Compressor Stage 3
• Compressor Percentage
• 
• 
• 
• High Pressure Switch
• Low Pressure Switch
• Auxiliary Alarm
• Emergency Shutdown
• 24 Hour Operation

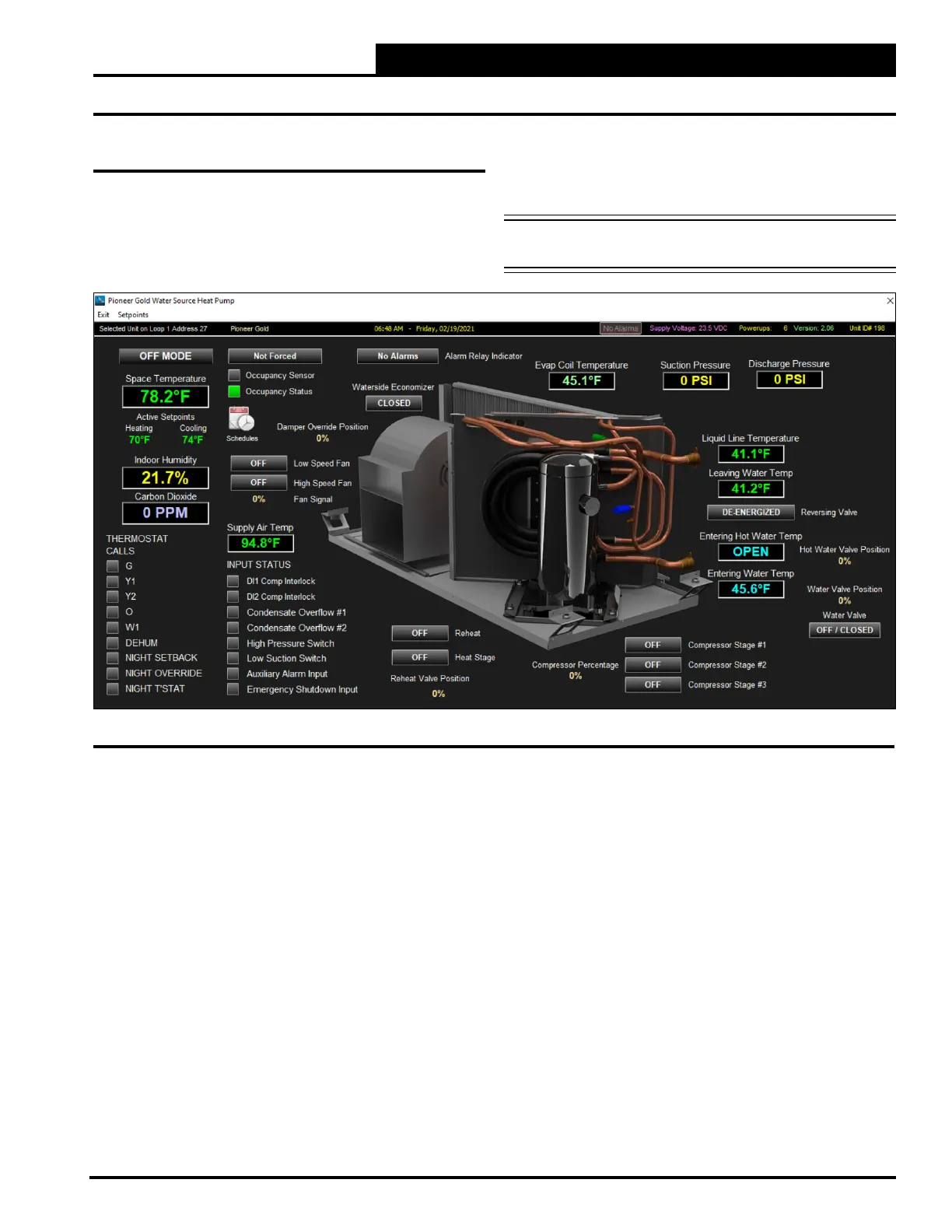

Figure 3-1: Pioneer Gold Controller Status Screen
