Pioneer Gold 3.00 Controller Technical Guide
WIRING
Touchscreen Space and Relative Humidity Sensor Wiring

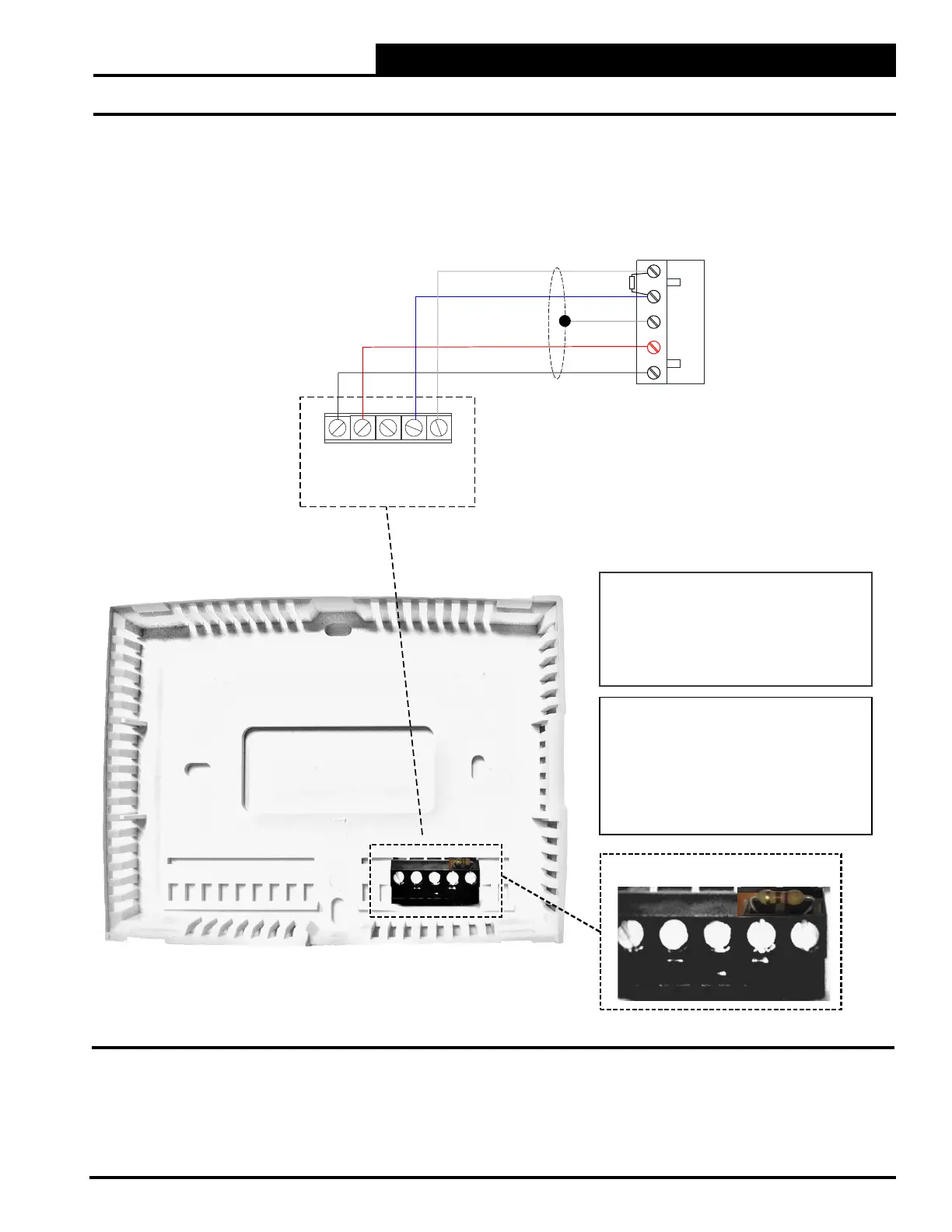

Figure 1-11: Pioneer Gold Touchscreen Space and Humidity Sensor Wiring
Pioneer Gold Touch Screen
Space and Humidity Sensor
(Inside Back Cover)
24 BC
AAON Resistor
120 OHM 1/4W 5%
P/N: G060090
AS
T-STAT Terminal Block on Pioneer
Gold Controller Board
Wiring Notes:
1. All wiring to be in accordance with local and
national electrical codes and specifications.
2. All communication wiring to be 18-gauge
minimum, two-conductor, twisted-pair with
shield. Use Belden #82760 or equivalent.
A-
B+
C
S
R
(Black)
(Red)
(Shield)
(White)
(Blue)
24 BC
NOTE:
1. S (Shield) should be connected at the
Pioneer Gold Controller but NOT at the
TS Sensor. Tape off the S at the TS Sensor.
2. The A to B & B to A nomenclature in the
drawing is correct. The labeling on the
sensor board is non-standard.
3. Do not remove terminal strip from sensor
base.
S A
T-STAT
See Note 3
See Note 3
