Administrator Settings Screen
Administrator Settings
The Administrator Settings Screen is password protected. This
menu includes all of the Settings Icons of the Manager Settings
 Table 2-3,
this page, for a list of these icons and their functions.
Icon Settings Screen Icons
Setpoints
This icon takes you to the Setpoint Screens
where you can access and change setpoints.
Schedule
This icon takes you to the Set Schedule Screen.
This screen allows you to set the desired
schedule for the controller.
Clock
This icon takes you to the Clock Screen. This
screen allows you to do three things: set the

Saving Time.
Alarms
This icon takes you to the Alarms Screens. The
Alarms Screens display the status of all possible
alarms.
Inputs
This icon takes you to the Inputs Screens. The
Inputs Screens display the status of all possible
inputs connected to the board.
Outputs
This icon takes you to the Outputs Screens. The
Outputs Screens display the status of all possible
outputs connected to the board.
USB
This icon takes you to the USB Screen where

USB, and upload setpoints from USB.
Network
This icon displays Network information where you

Conguration
This icon takes you to the Conguration
Screens where you can access and change

Security
This icon takes you to the Security Screen. This
screen allows you to set the Manager’s password

Table 2-3: Administrator Settings Screen Icons

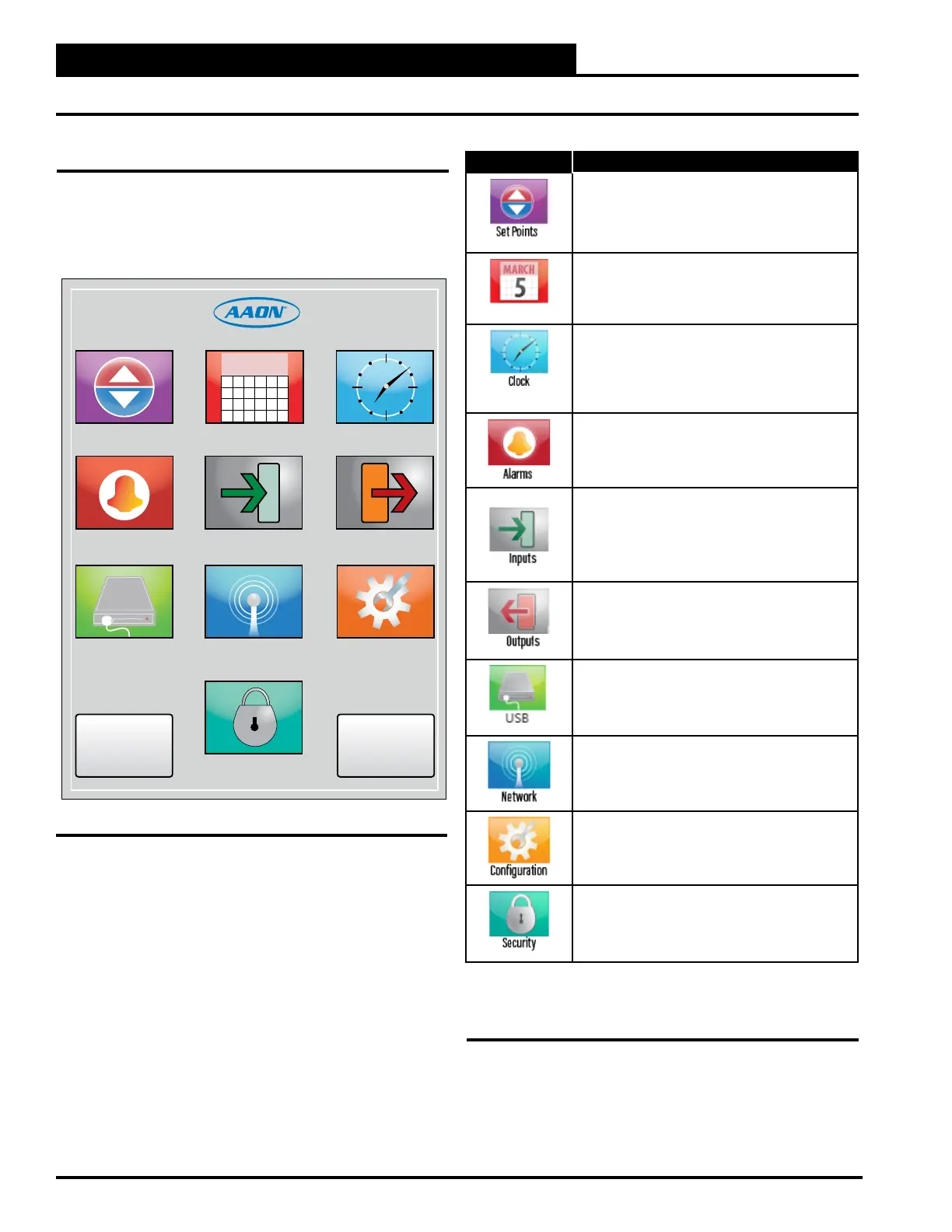

Figure 2-3: Administrator Settings Screen
