AAON ASM02780 User Manual

3-14
Pioneer Gold 3.00 Controller Technical Guide
CONNECTIONS

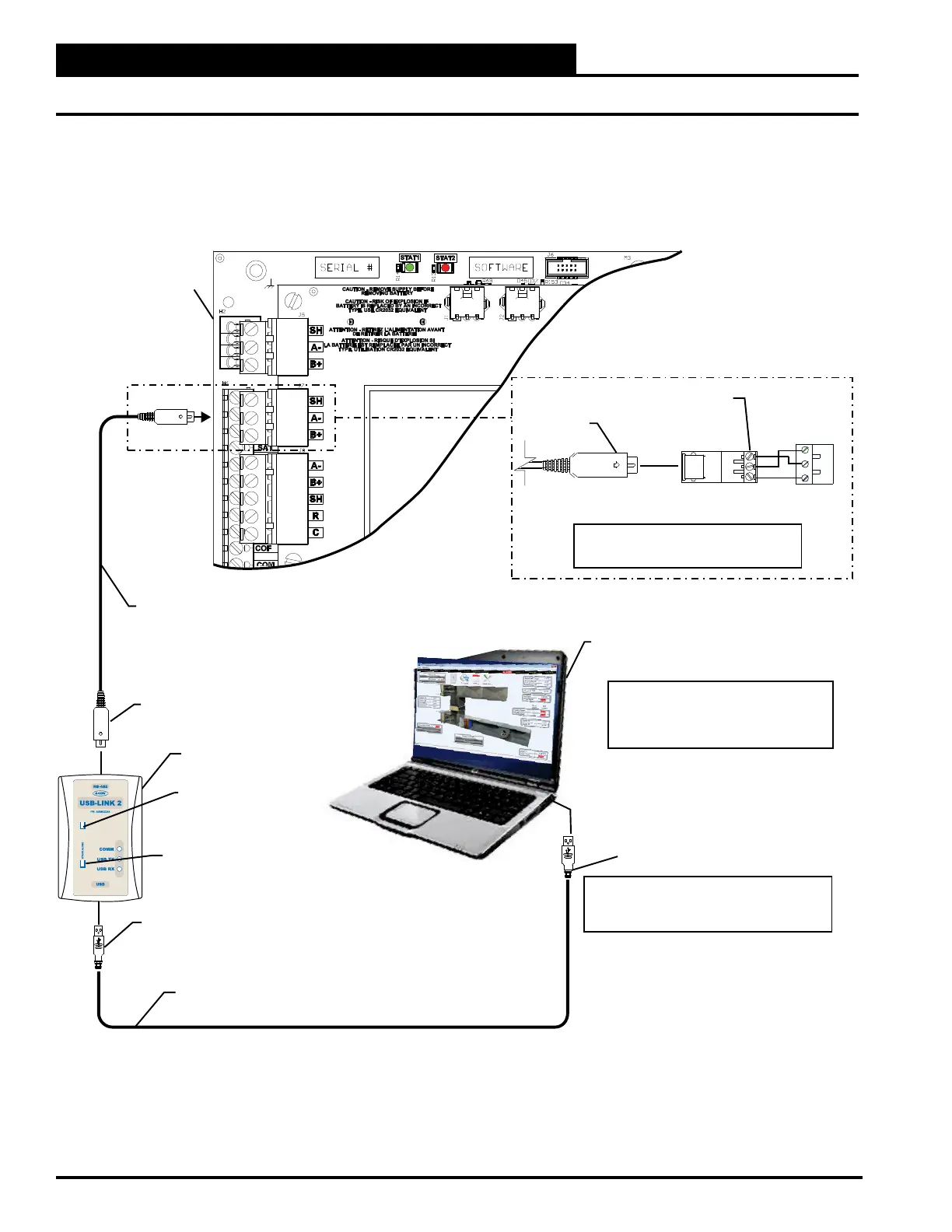

USB-Link 2 Connection
Job-Site Computer
(by others) with Prism 2
Software installed
ASM01963 Adapter
Supplied with USB-Link 2
Mini-DIN cable
USB-Link 2
USB Cable supplied
with USB-Link 2
Connect Type A cable end to USB port on
desktop or laptop personal computer.
Connect Type B Cable End To
USB Port On USB-Link 2.
Connect Mini-DIN cable end to
Mini-DIN port on USB-Link.
Configuration switch must be set to
Stand Alone or Network depending
on the installation.
Mini-DIN cable supplied
with USB-Link
STAND ALONE
NETWORK
Communication speed switch
must be set to High Speed
Pioneer Gold Controller
S
A-
B+
SH
T-
R+
Use the adapter and wire to a terminal block.
To connect the USB-Link 2 to the local communications loop.
NETWORKED
LOW
HIGH
COMM SPEED
COMM CONFIG
NOTE:
This allows communications with all controllers
that are connected to the system.
BACNET
NOTE:
WattComm must be selected as the Protocol
in the Pioneer Gold Touchscreen’s Network
Screen in order to establish a connection with
Prism 2.
NOTE:
USB drivers supplied with the USB-Link 2 must
be installed on the computer before the USB-Link 2
can be used.
