Pioneer Gold 3.00 Controller Technical Guide

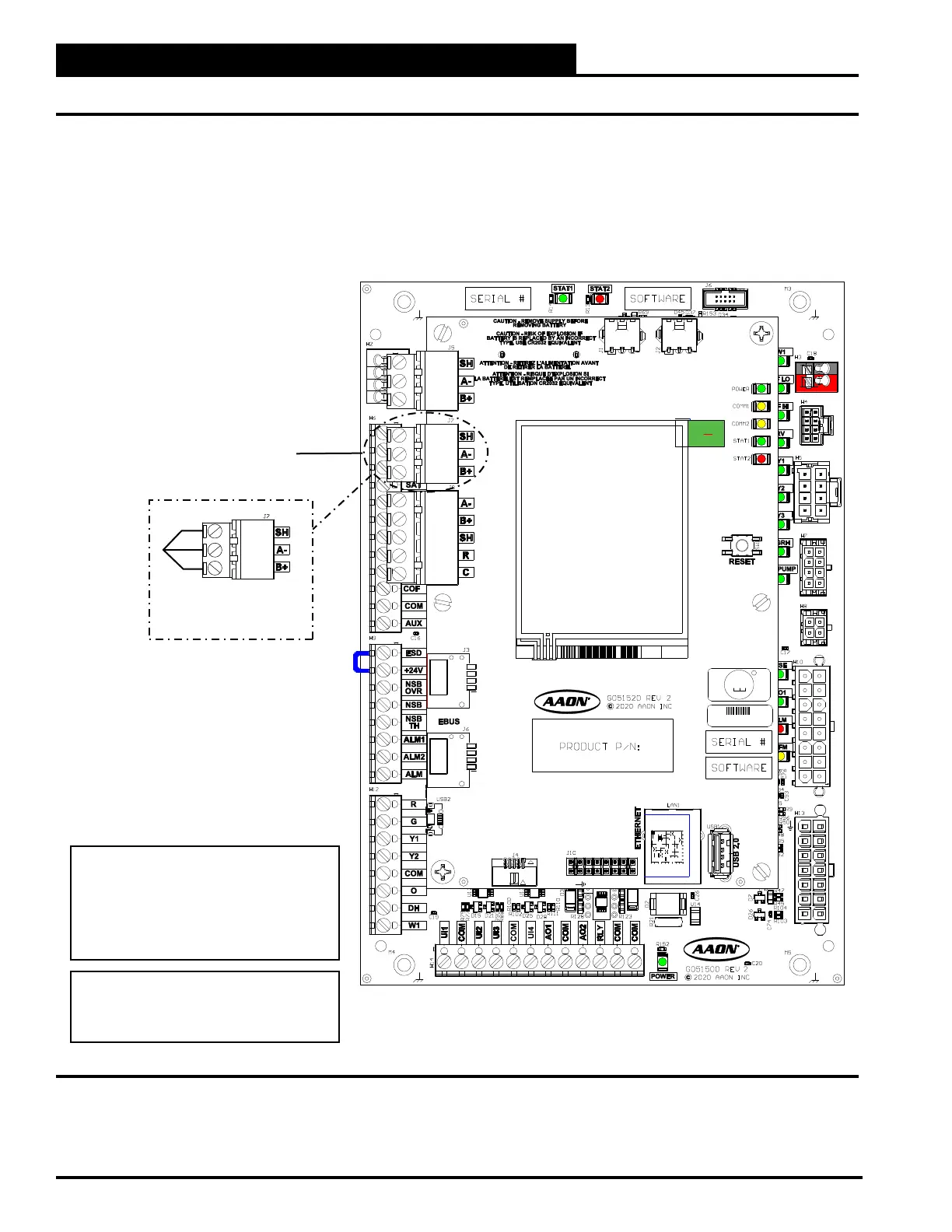

Figure 1-14: BACnet
®
Legacy Connection to MS/TP BAS Network
MS/TP Connection To
BACnet
®
Network
Programming Note:
Use the Network Menu in the Touchscreen
LCD Display to program the BACnet
®
MS/TP
setting.
Wiring Notes:
1. All wiring to be in accordance with local and
national electrical codes and specifications.
2. All communication wiring to be 18-gauge
minimum, two-conductor, twisted-pair with
shield. Use Belden #82760 or equivalent.
Typical terminal blocks. All
wiring to be S (G) to S (G),
A- to A-, and B+ to B+
