Caution:
• Do not drop the charge post. There is a risk of damage.

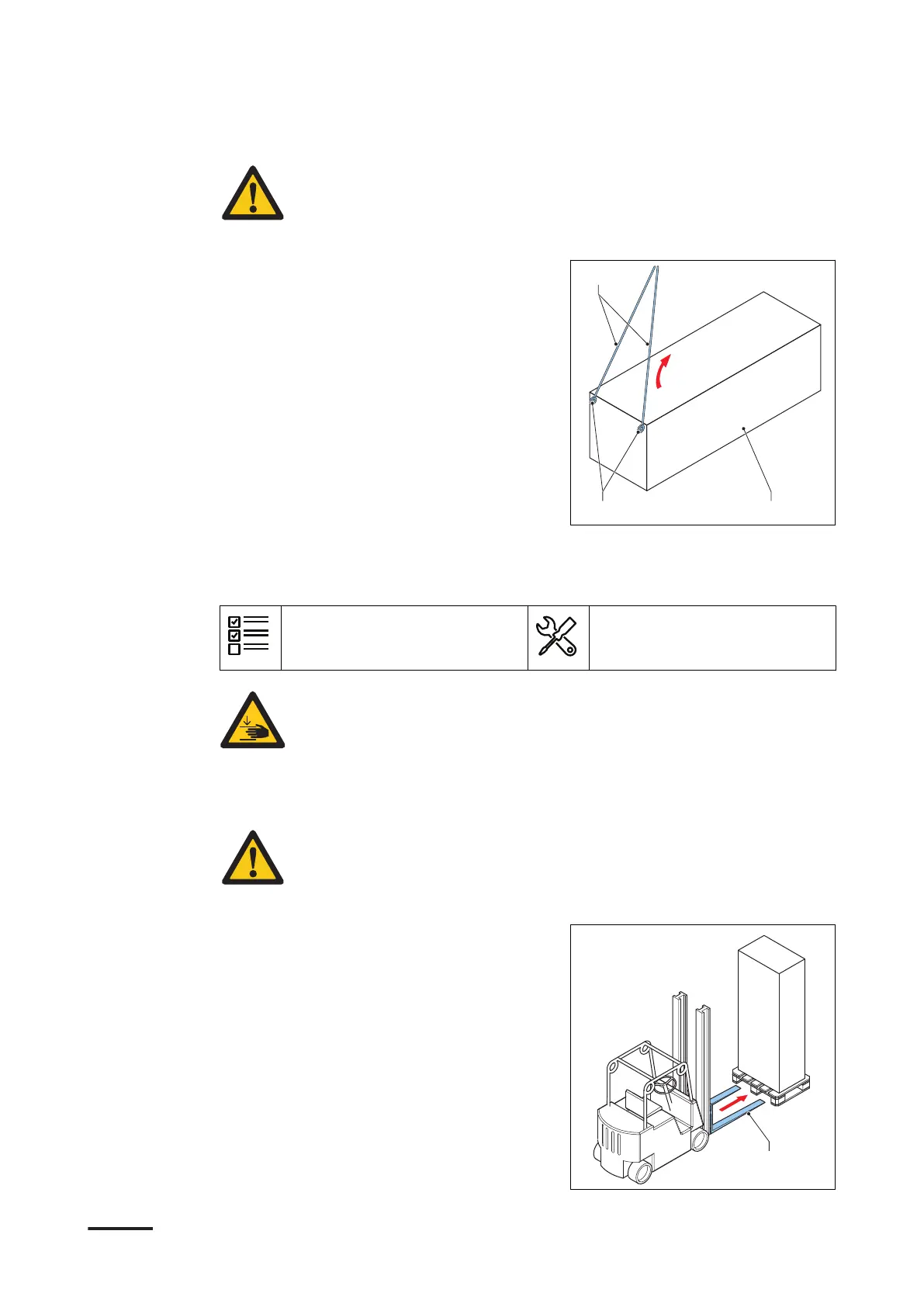

Procedure
1. Install the swivel eye bolts or bolts
with lifting loops (A).
2. Connect the hoisting equipment (B).
3. Carefully tilt the charge post (C) to the
vertical position.
4. Remove the swivel eye bolts or bolts
with lifting loops (A).
5.5.3 Move the cabinet with a forklift truck
Preliminary requirements
1. The cabinet is unpacked.
Refer to section 5.4.
• Forklift truck. Refer to
section 12.3.
Warning:
Risk of pinching or crushing, the cabinet is heavy
• Make sure that the forklift truck can lift the cabinet safely. Obey the
safety instructions that apply to the forklift truck. Take into account
the mass, the dimensions and the center of gravity of the EVSE. Refer
to sections 12.10 and 12.15.
Caution: Do not drop the cabinet.
Procedure
1. Move the forks (A) of the forklift truck
in the gaps at the side of the cabinet.
2. Move the cabinet to the correct
location.
C
B
A
A
Inspection and transport
34 9AKK107992A6488-EN | 004
