Procedure

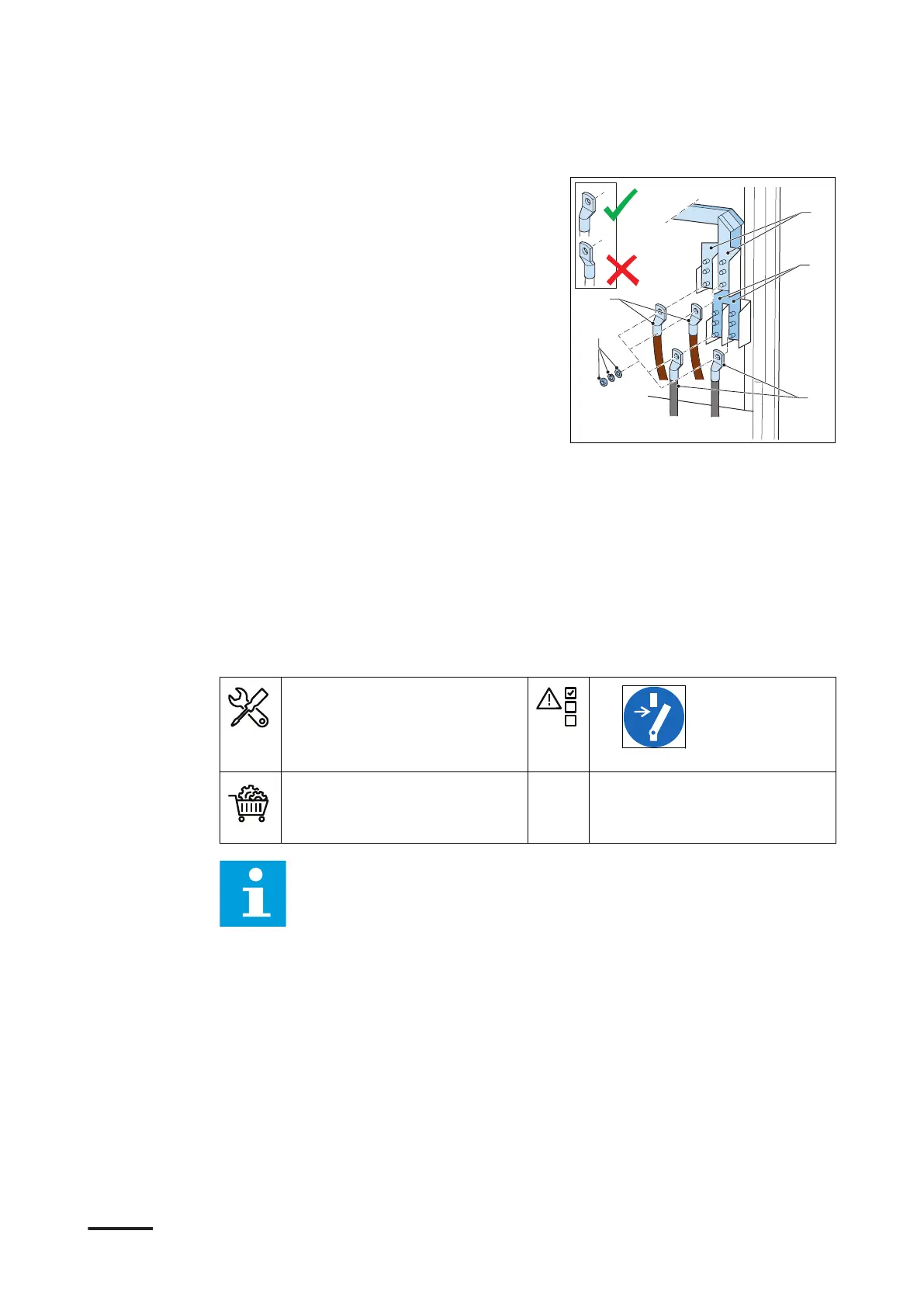

1. Cut the DC power cables to make sure
that the length is sufficient for
connection at the DC busbars (A+) and
(A-).
2. Install the cable lugs. Refer to section
11.1.
3. Remove the nuts and washers (B) from
the bolts of the busbars (A+) and (A-).
4. Connect these cables:
• DC+ cables (C) to the connectors
(A+)
• DC- cables (D) to the connectors
(A-)
5. If you need to stack two DC cables,
make sure that the cable lugs (E) are inversed.
6. Install the nuts and washers on the connector block bolts.
7. Tighten the nuts to the correct torque. For the specification, refer to section
12.14.
7.5 Connect the AC auxiliary power cable in the primary power
cabinet
Preliminary requirements
• Torque screwdriver, cross
• Wire cutter
• Wire stripper pliers
• Crimp pliers
•
• AC auxiliary power cable.
Refer to section 12.19.4.
• Ferrules
Note: The AC auxiliary power cable provides the control power to the
charge post.
B
C
A-
D
A+
Electrical installation of the power cabinet
