ABB HP CP500 - Connect a Wire that Has a Cable Lug; Connect a Wire that Has a Ferrule

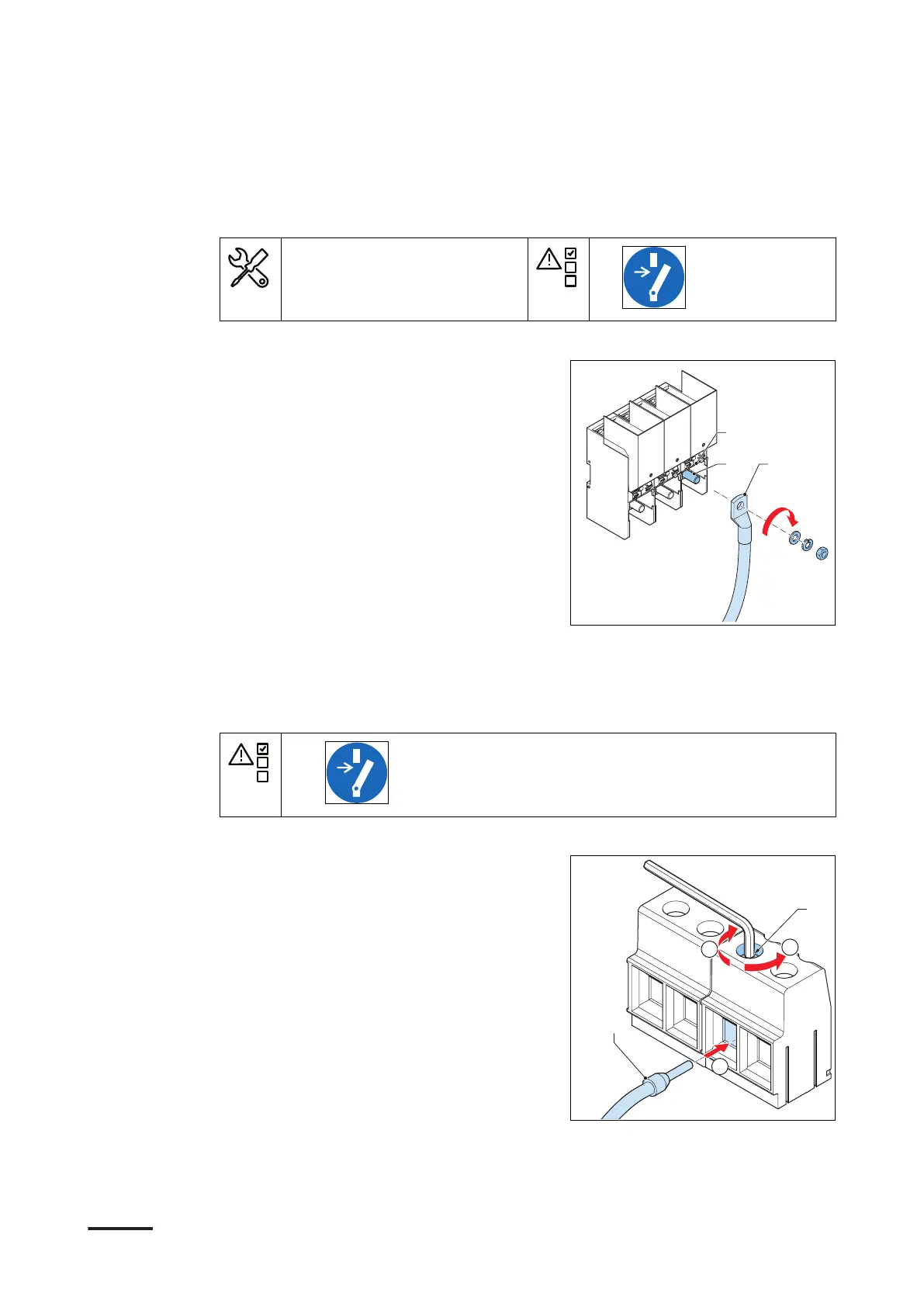

11.4 Connect a wire that has a cable lug
Preliminary requirements
• Torque screwdriver, cross •
Procedure
1. Loosen the bolt of the connection pin
(A) on the busbar (B).
2. Install the eye of the cable lug (C) on
the connection pin.
3. Tighten the bolt of the connection pin
on the busbar to the correct torque.
For the torque specification, refer to
section 12.14.
4. Make sure that unused wires are
protected and cannot touch metal
parts.
11.5 Connect a wire that has a ferrule
Preliminary requirements
•
Procedure
1. Loosen the screw of the connection on
the terminal.
2. Install the ferrule in the connection of
the terminal.
3. Tighten the screw to the correct
torque. For the specifications, refer to
section 12.14.
4. Make sure that unused wires are
protected and cannot touch metal
parts.
A C
B
B
A
1
3
2
Generic procedures
9AKK107992A6488-EN | 004 71
