ABB HP CP500 - Power Cabinet (Custom)

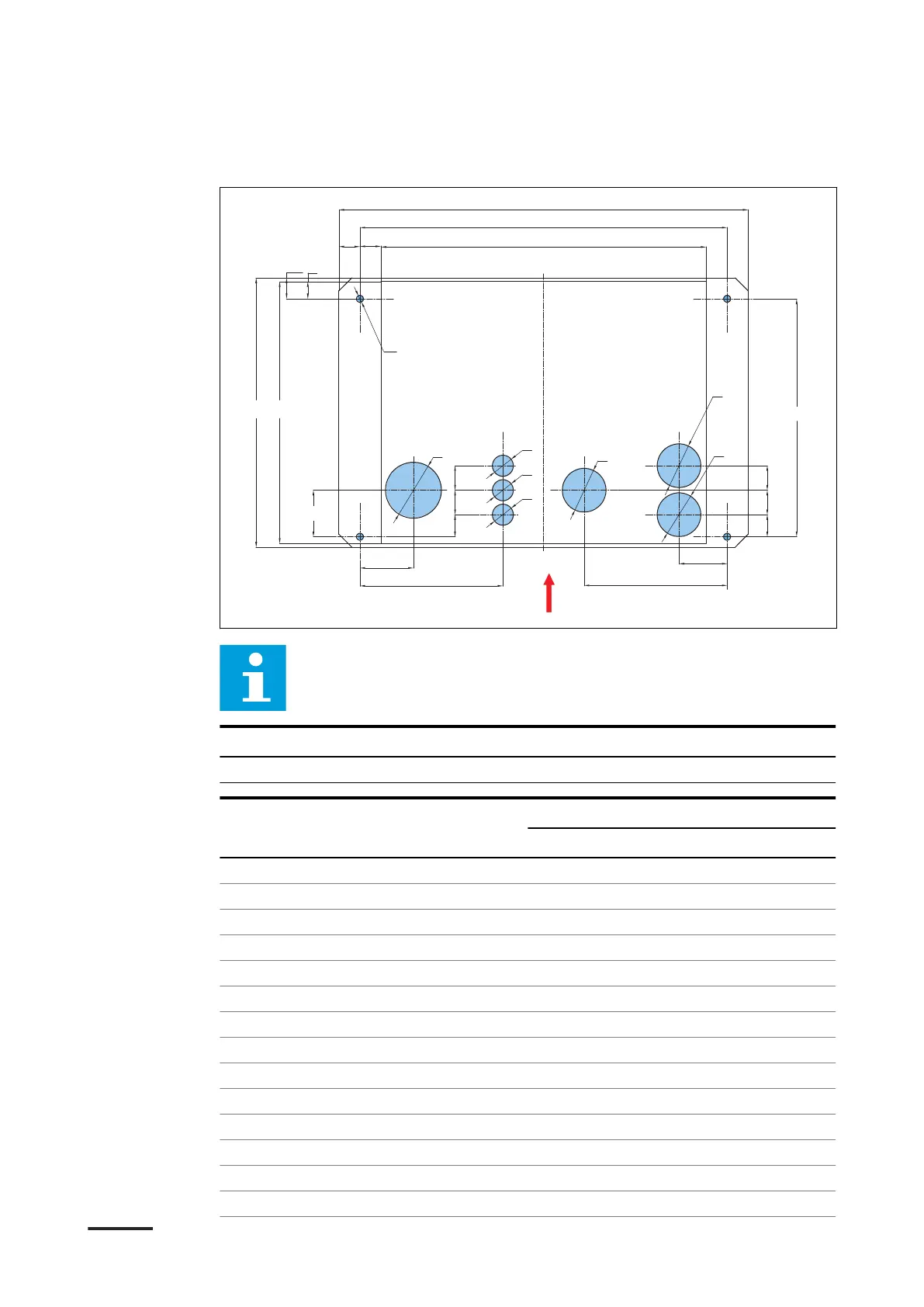

12.17.2 Power cabinet (custom)
Y5
Y6
Y6
Y1
X1
X3
X2
Y3
Y2
Y4
X4
X5
X6
A
C1
C3
C2
C4
X0
Y0
Y9
X8
X7
Y7
Y8
Y8
C7
C6
C5
Y
Note: The arrow shows the front side of the power cabinet.
Parameter Specification
A (4x) For M16 fasteners, depth 60 (2.4)
Parameter Specification
[mm] [in]
X0 1170 46.1
X1 1050 41.3
X2 930 36.6
X3 60 2.4
X4 153 6.0
X5 409 16.1
X6 409 16.1
X7 138 5.4
X8 60 2.4
Y0 770 30.3
Y1 680 26.8
Y2 748 29.4
Y3 49 1.9
Y4 133 5.2
Technical data
90 9AKK107992A6488-EN | 004
