Parameter Specification
[mm] [in]
Z5 Top of the authentication clus-
ter
955 37.6
Z6 Bottom of the touch screen dis-
play
1026 40
Z7 Advised maximum height for
user operable elements if the
EVSE is placed on a curb. This
requires HMI customization.
1118 44
Z8 Top of the touch screen display 1223 48.1

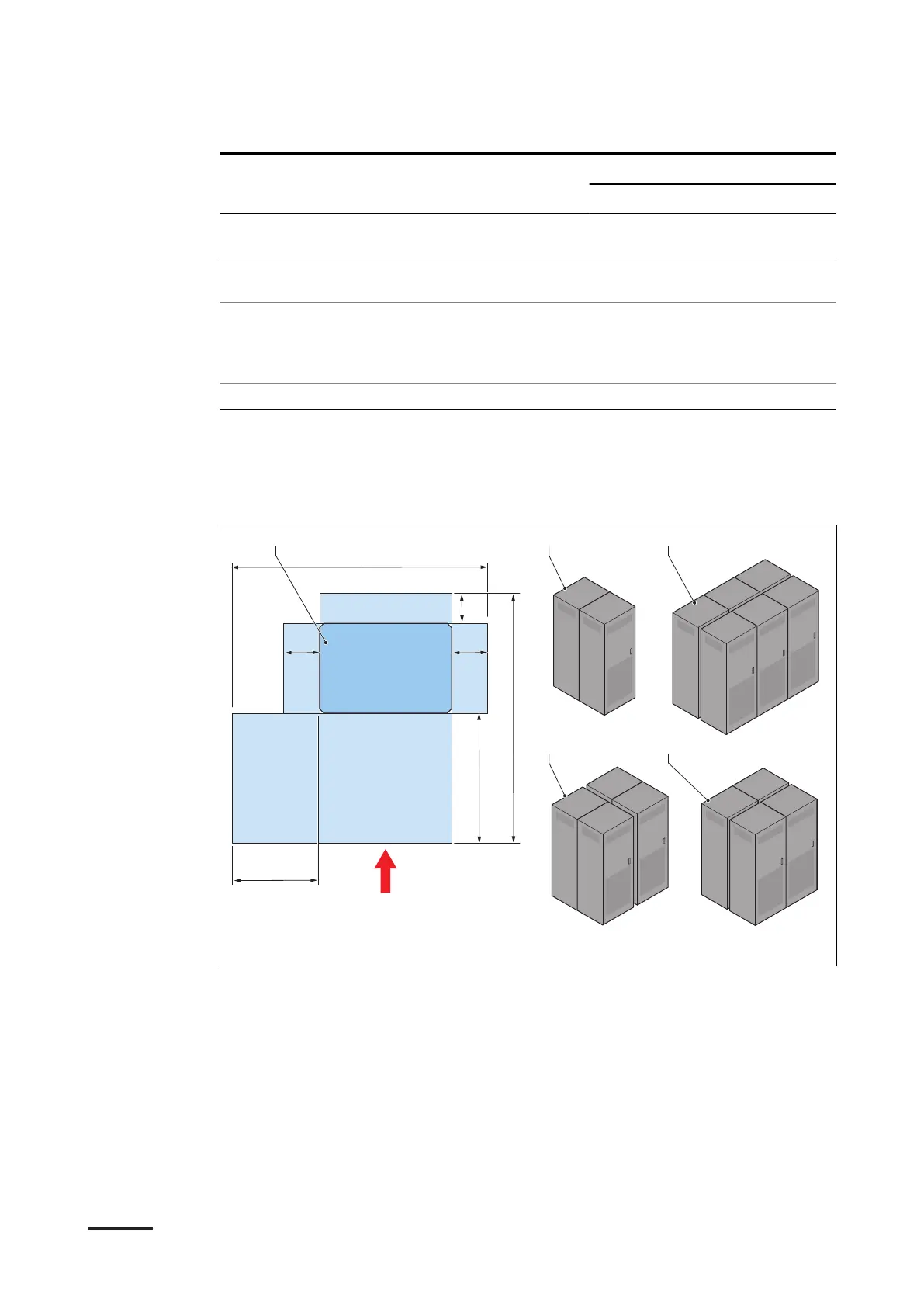

12.16 Space requirements
12.16.1 Power cabinet
A Power cabinet
X1 Total width required for the power
cabinet
X2 Space for air inlet on the side
X3 Space to open the power cabinet
door
Y1 Total depth required for the power
cabinet
Y2 Space to open the power cabinet
door
Y3 Space for air outlet
B Back to back configuration
C Side by side configuration
D Back to back configuration, four
power cabinets
E Side by side configuration, four
power cabinets
Technical data
82 9AKK107992A6488-EN | 004
