ABB HP CP500 - Remove the Protection Plate of the Charge Post; Close the Door of the Charge Post

Procedure

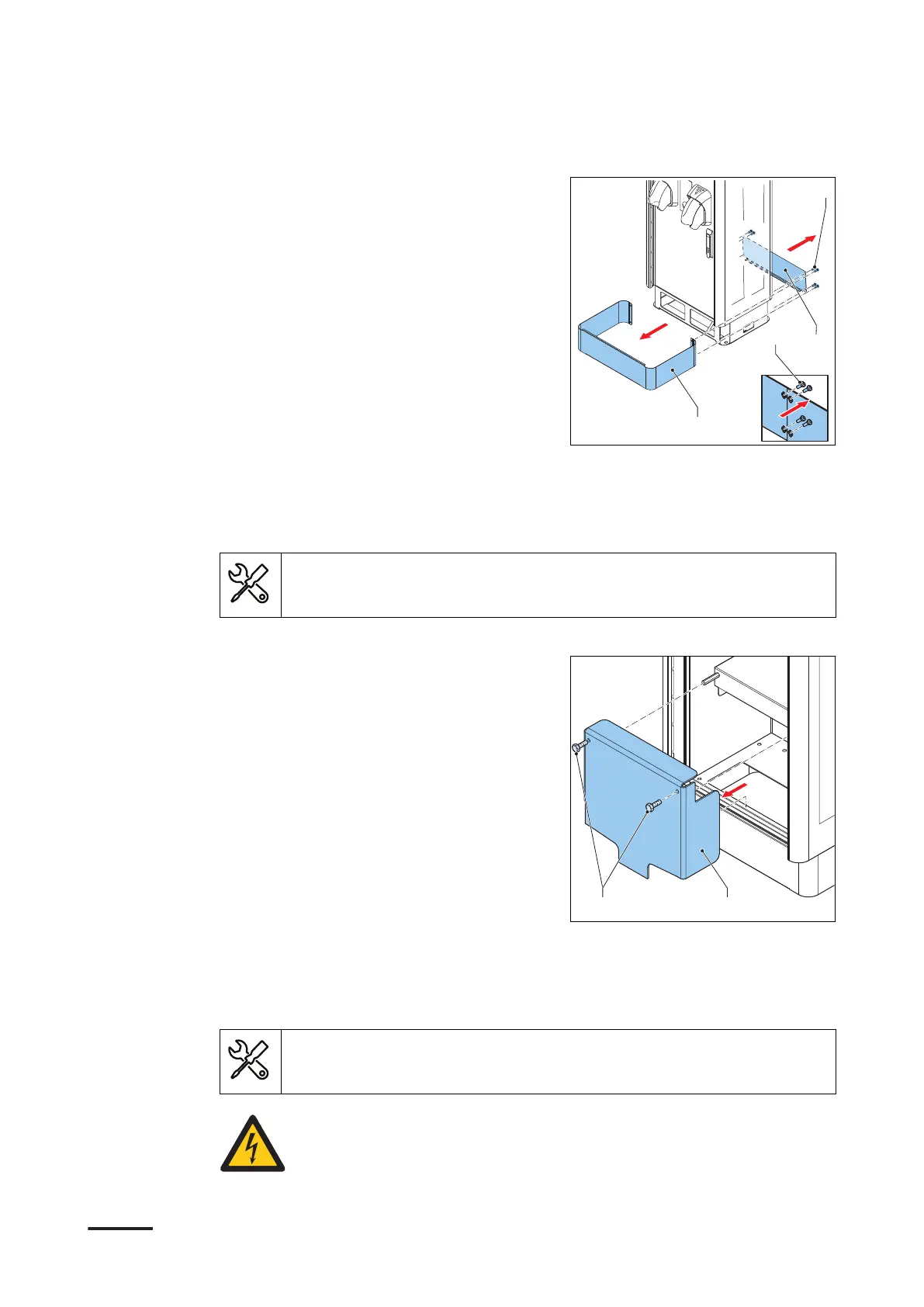

1. Remove these parts:
• Fasteners (A)
• Plinth covers (B)
10.8 Remove the protection plate of the charge post
Preliminary requirements
• Screwdriver, cross
Procedure
1. Remove these parts:
• Fasteners (A)
• Protection plate (B)
10.9 Close the door of the charge post
Preliminary requirements
• Door key of the charge post
Danger:
Hazardous voltage
• Make sure that only qualified personnel has access to the door key.
A
A
A
B
B
BA
Access to parts
9AKK107992A6488-EN | 004 67
