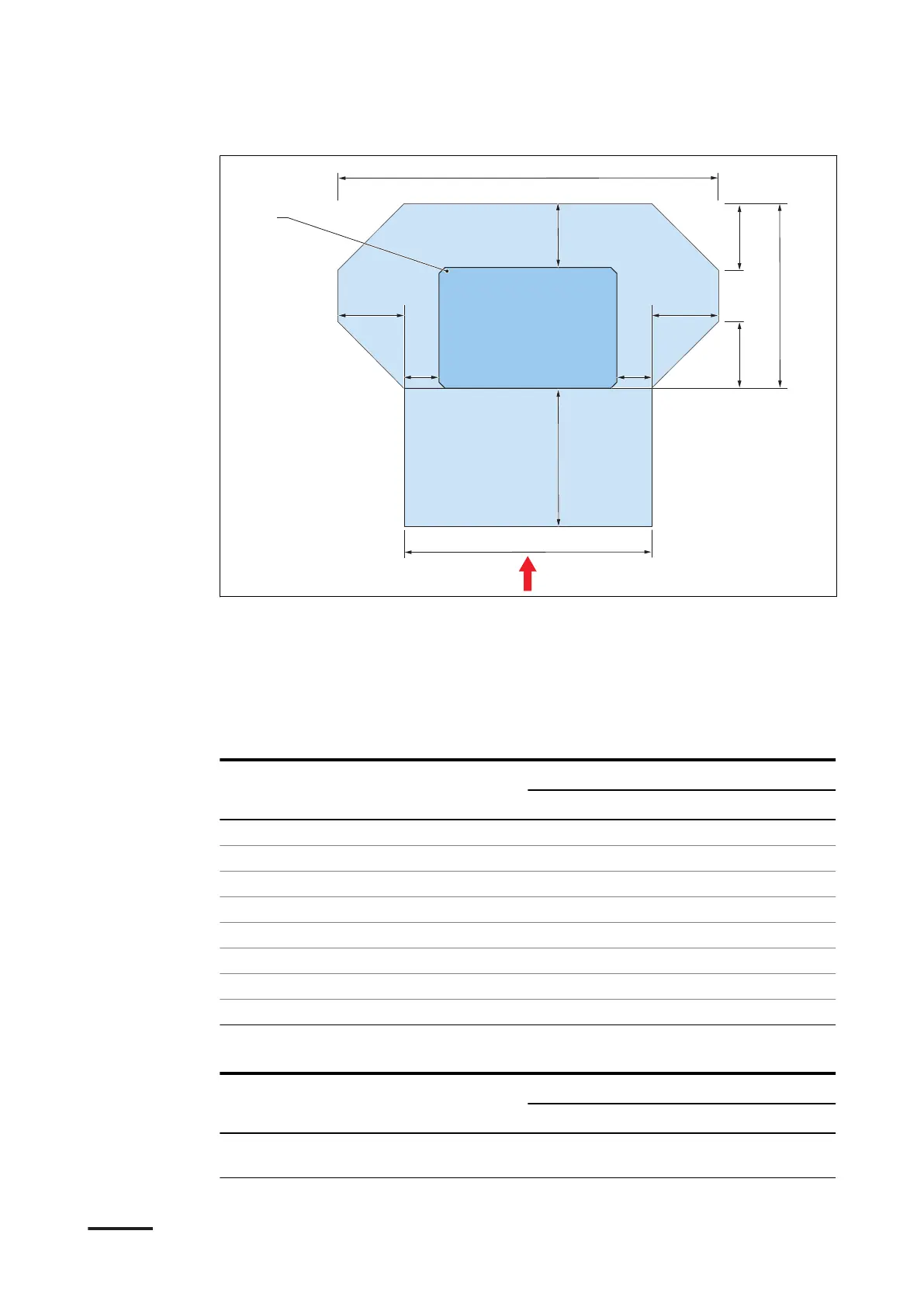

ABB HP CP500 - Distance Requirements between Power Cabinet and Charge Post

Y4
Y3
X1
X3
X2 X2
A
X3
Y1
Y2
X4
Y2
A Charge post
X1 Total width to open the side panels
X2 Required width to open the side
panel
X3 Space required at the sides to open
the door
X4 Total required width to open the
door
Y1 Required depth to open the side
panel
Y2 Required depth to open the side
panel
Y3 Total required width to open side
panels
Y4 Space required to open the door
Parameter Specification
[mm] [in]
X1 1190 46.8
X2 200 7.8
X3 105 4.1
X4 800 31.5
Y1 250 9.8
Y2 200 7.8
Y3 675 26.5
Y4 490 19.3
12.16.4 Distance requirements between power cabinet and charge post
Parameter
Specification
[m] [ft]
Maximum distance between the power
cabinet and the charge post
60 197
Technical data
9AKK107992A6488-EN | 004 85
