ABB HP CP500 - Cable Conduit and Specification Details

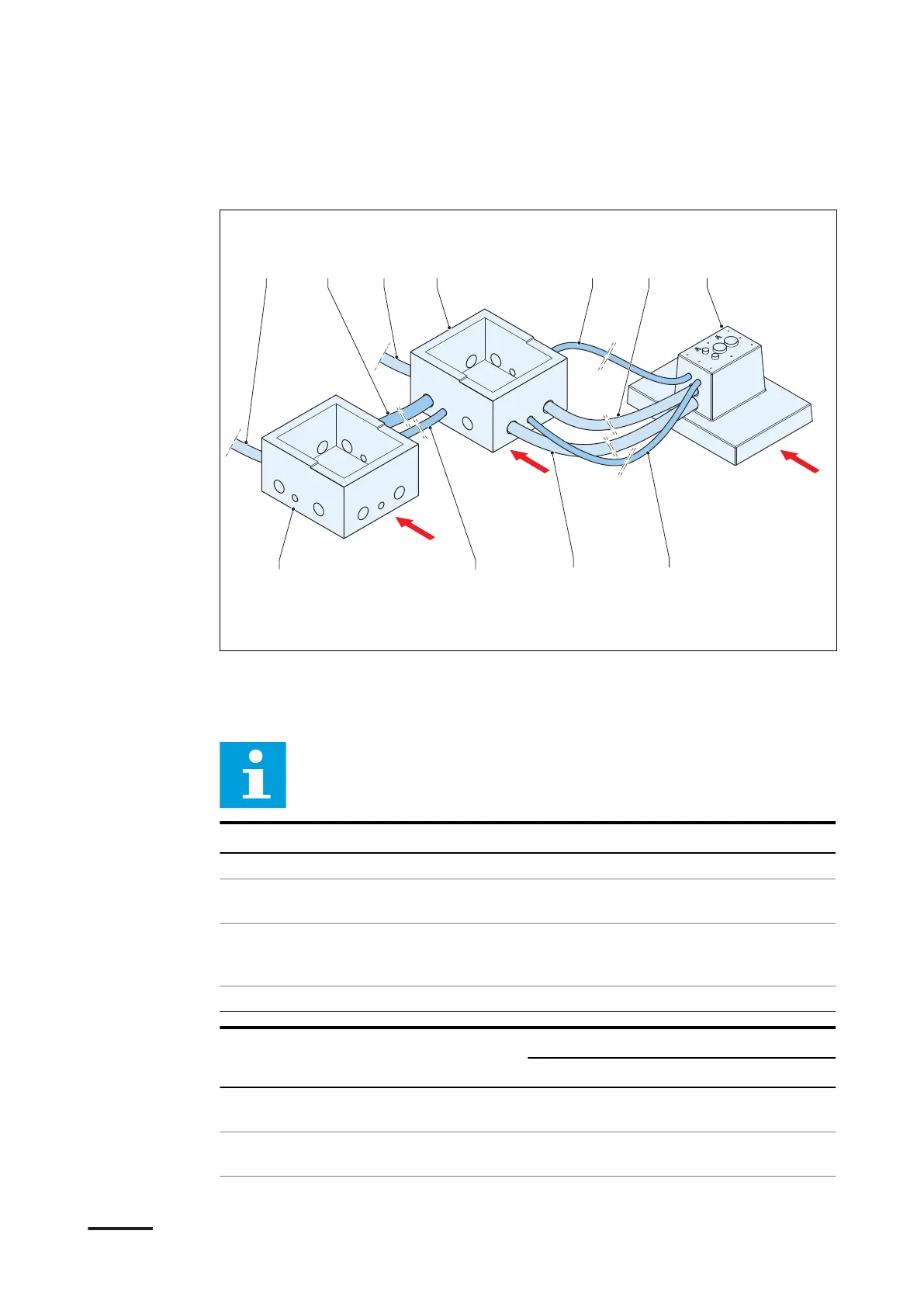

12.18 Overview of the cable conduits
BE CA1F C F
C D
EA2
A1 Foundation of the primary power
cabinet
A2 Foundation of the secondary
power cabinet
B Foundation of the charge post
Note: The arrows show the front side of the charge post and the power
cabinets
Cable conduit Cables
C DC power
D AC auxiliary power
PE
E CAN
Interlock
DC guard
F AC power
Cable conduit Maximum diameter
[mm] [in]
Small holes in the foundation of the
power cabinet
90 3.54
Large holes in the foundation of the
power cabinet
160 6.30
