Procedure
1. Remove these parts:
• Fasteners (A)
• Cover (B)
• Cover (C)

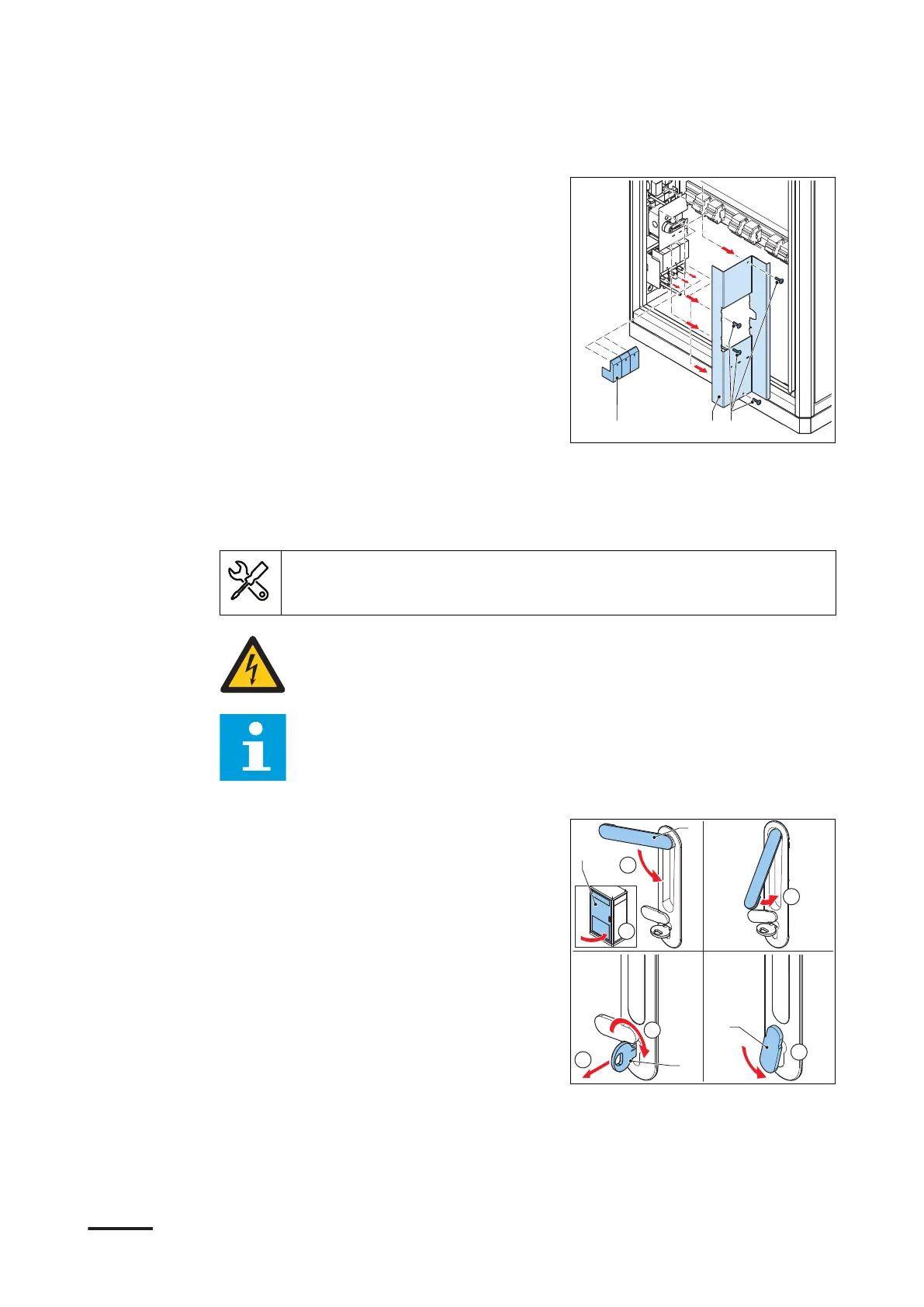

10.5 Close the door of the power cabinet
Preliminary requirements
• Door key to the power cabinet.
Danger:
Hazardous voltage
• Make sure that only qualified personnel has access to the door key.
Note: There is one unique door key for each cabinet.
Procedure
1. Close the door (A).
2. Turn the handle (B) counterclockwise.
3. Push the handle.
4. Turn the door key (C) clockwise to lock
the door.
5. Remove the door key (C).
6. Turn the cover plate (D) to cover the
keyhole.
C B A
A
C
B
6
3
5
4
2
1
D
Access to parts
9AKK107992A6488-EN | 004 65
