10 Access to parts
10.1 Open the door of the power cabinet
Preliminary requirements
• Door key of the power cabinet
Danger:
Hazardous voltage
• Make sure that only qualified personnel has access to the door key.
Note: There is one unique door key for each power cabinet.

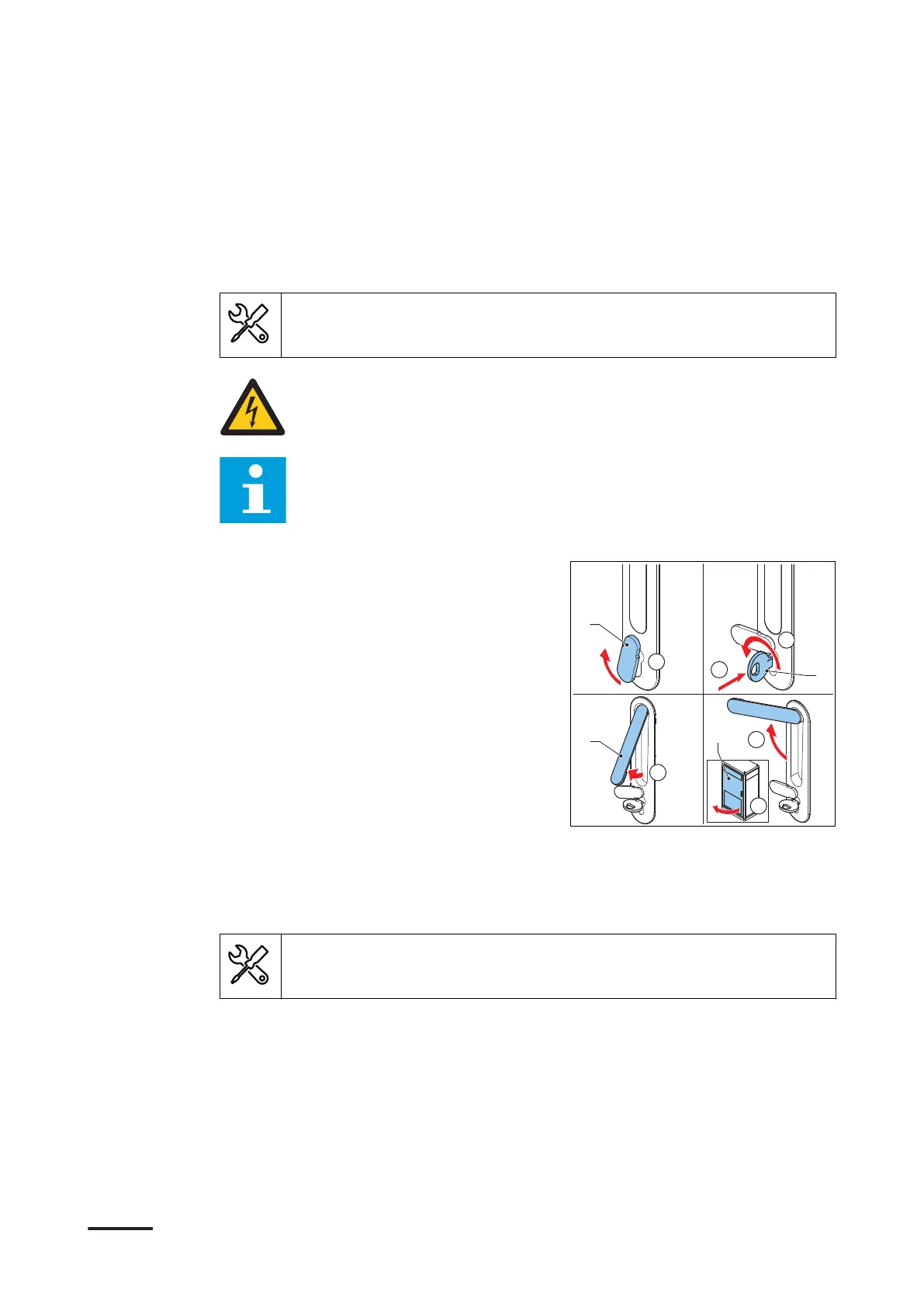

Procedure
1. Turn the cover plate (A).
2. Insert the door key (B).
3. Turn the door key counterclockwise to
unlock the door (C).
4. Pull the handle (D).
5. Turn the handle clockwise.
6. Open the door.
10.2 Remove the plinth covers of the power cabinet
Preliminary requirements
• Screwdriver, cross
D
A
B
C
1
4
2
3
5
6
