ABB HP CP500 - Foundation Specifications

12.17 Foundation specifications
12.17.1 Power cabinet (prefab concrete)
General specifications
Parameter Specification
Type Base monoblock of support for cabinet,
with plasticizer and waterproofing addi-
tive
Concrete class C32 / 40
Exposure class CX4 and XD25 according to UNI
11104:2018

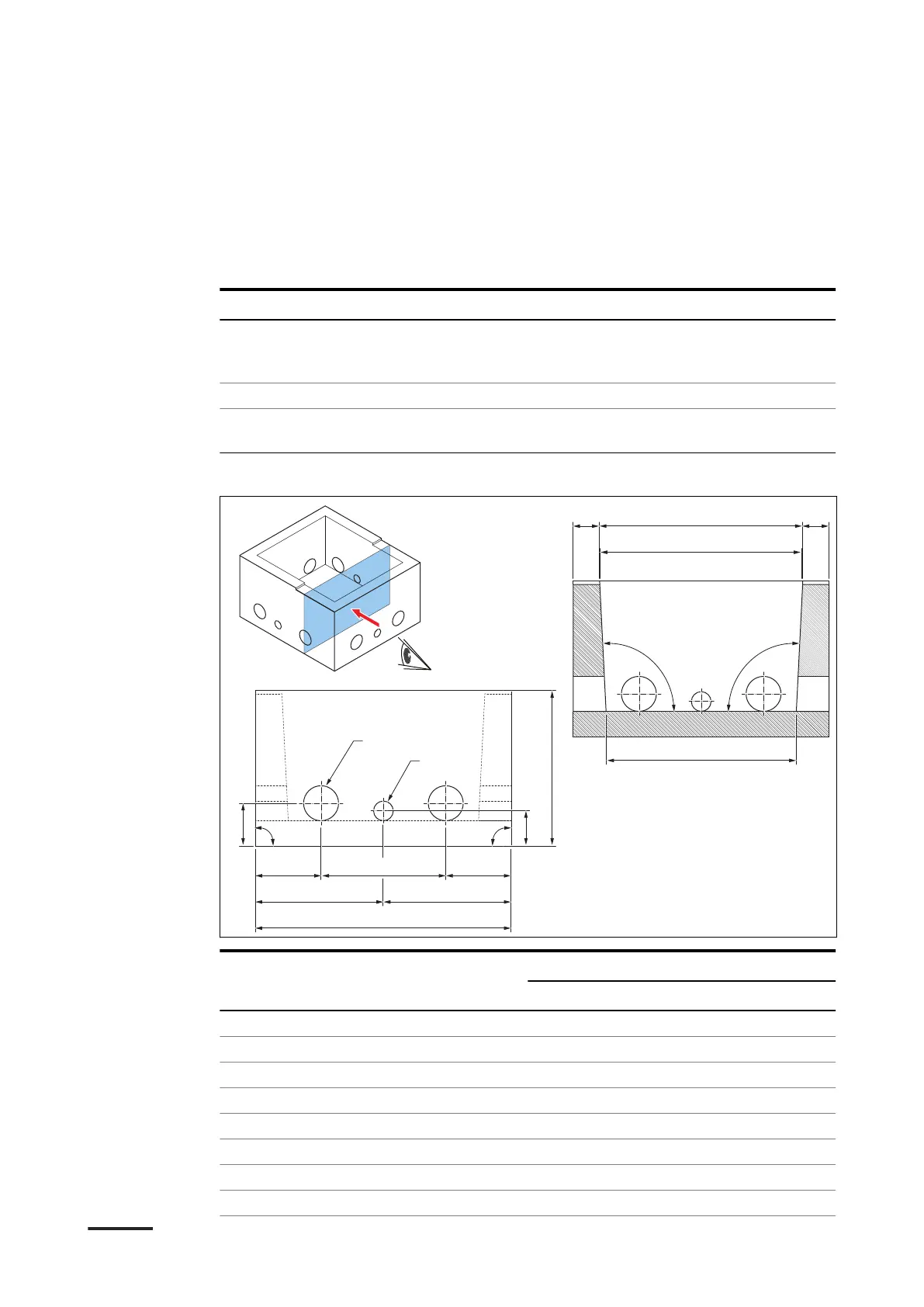

Dimensions, side view
Y5
a1 a1
Y4
Y1
Y2
Y3
Y8Y7 Y9
Y10 Y11
(Y12)
Z2Z1
Z3
a2 a2
D1
D2
Parameter
Specification
[mm] [in]
Y1 120 4.72
Y2 930 36.6
Y3 120 4.72
Y4 928 36.5
Y5 870 34.3
Y6 1170 46.1
Y7 300 11.8
Y8 570 22.4
Technical data
86 9AKK107992A6488-EN | 004
