ABB HP CP500 - Charge Post

Parameter Specification for a single power cabinet
[mm] [in]
X1 1170 47.2
X2 200 7.9
X3 650 25.6
Y1 770 30.3
Y2 1050 41.3
650 25.6
Y3 100 3.9
Parameter Specifications for power cabinets side by side
[mm] [in]
X2 0 0
Y3 100 per power cabinet. 3.9 per power cabinet.
Parameter Specifications for power cabinets back to back
[mm] [in]
X2 100 per power cabinet. 3.9 per power cabinet.
Y3 0 0

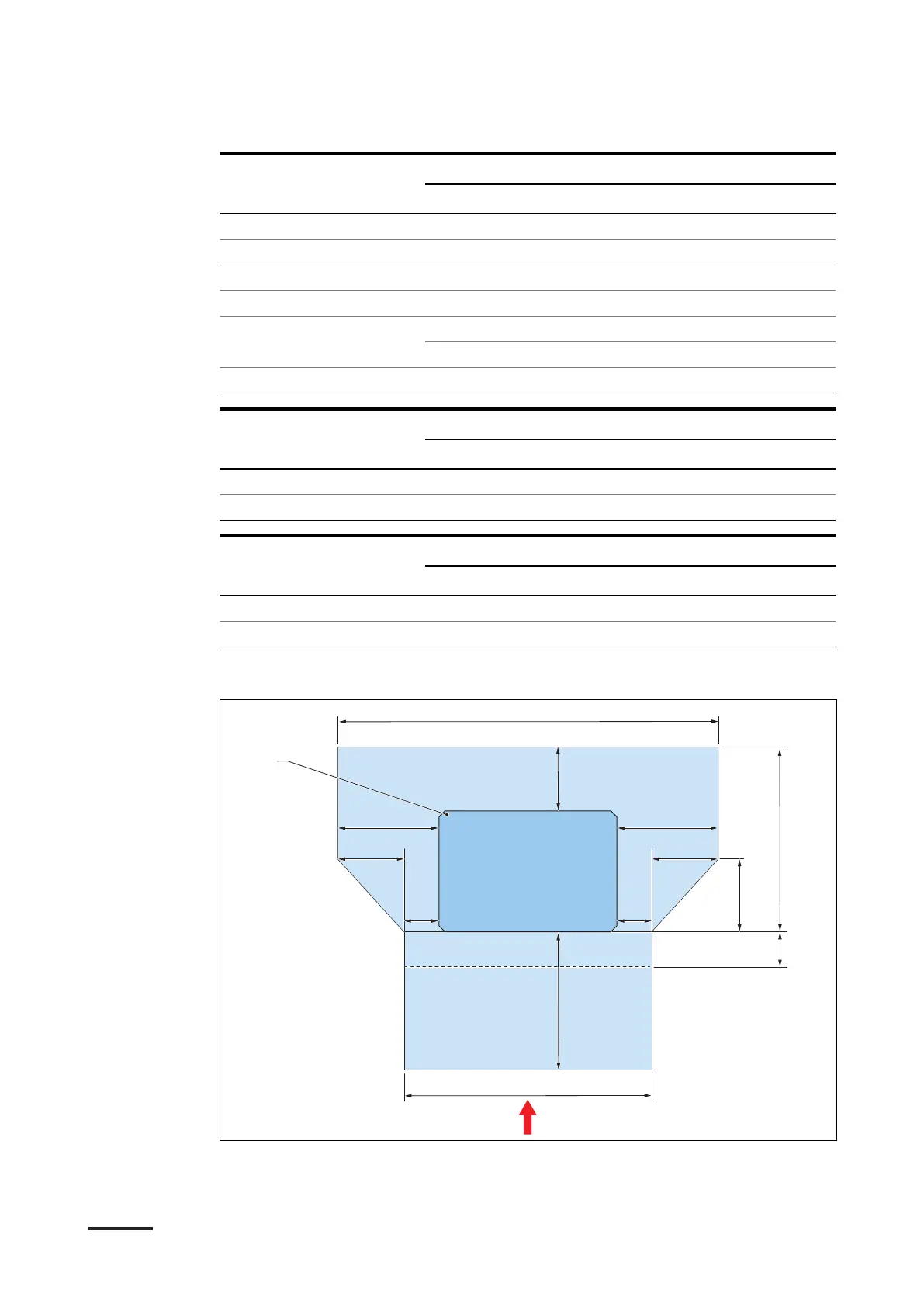

12.16.2 Charge post
Y4
Y2
X1
X3
X2
X2
X5 X5
A
X3
Y1
Y3
Y5
X4
Technical data
9AKK107992A6488-EN | 004 83
