134 Reporting

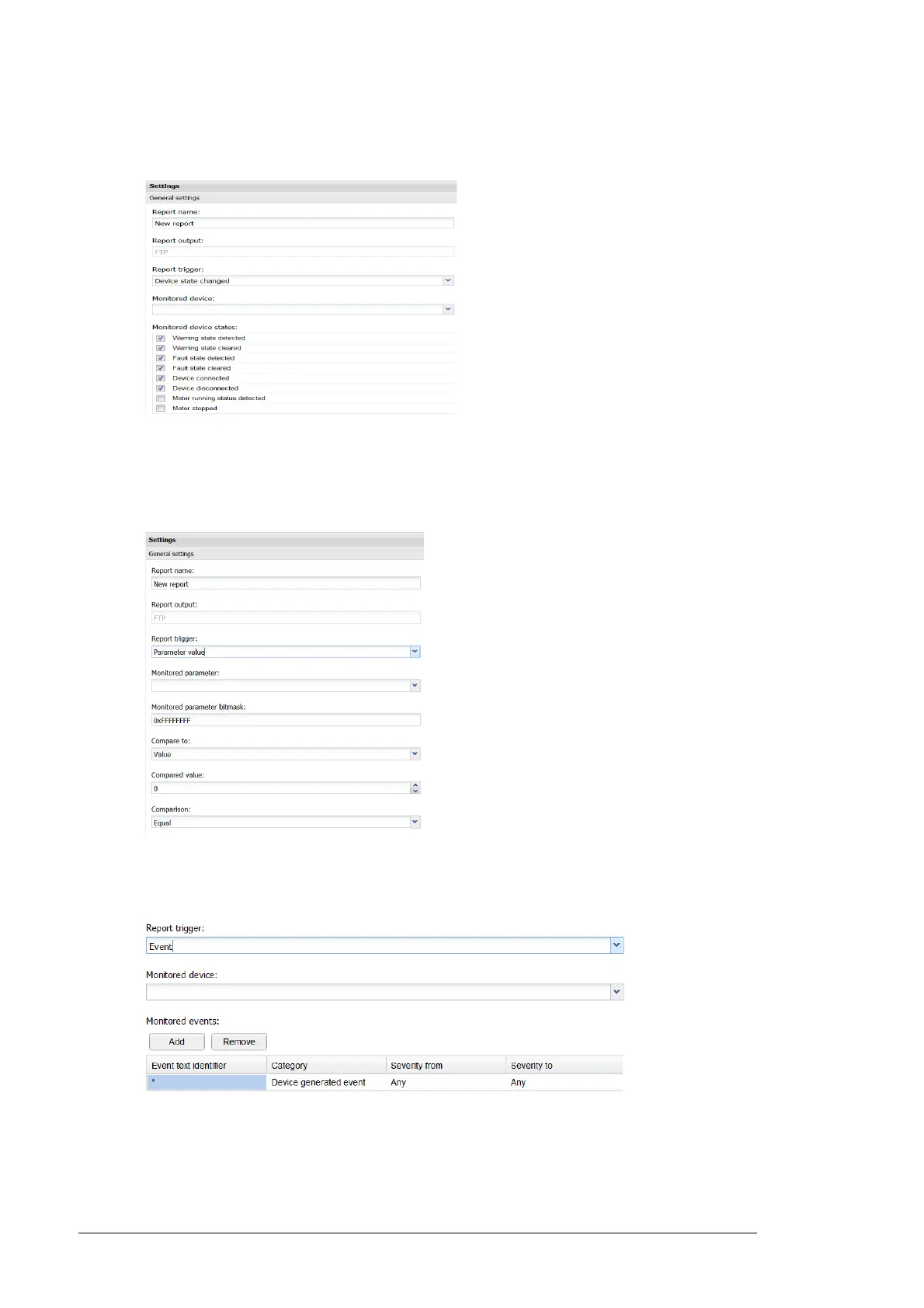

• Device state changed

Status of a particular drive has changed.

Note: You can select the drive to be monitored.

• Parameter value

Value or another parameter can be specified as a basis for comparison.

Bitmask is ANDed to the original value before comparison.

• Event

Name, category and severity of an event can be specified as a basis for

comparison.
