34 Start-up
Connecting a local PC to the NETA-21 in the DHCP server mode
Note: If another device operates in the DHCP server mode, you cannot use the NETA-21
in the DHCP mode via the local Ethernet 1 network.
1. Start the NETA-21.
2. Wait until the set-up completes and the STAT LED is green.
3. Push the SD RJ45 button for 5 seconds or until the PC ETH 1 LED starts to flash
green.
The NETA-21 operates as a DHCP server via the PC ETH 1 connector.
4. Connect the PC to the PC ETH 1 connector.
The PC gets a dynamic IP from the NETA-21.
The PC ETH 1 LED shows that there is a connection (green blink = waiting, green =
connected).
Note: If after one minute there is no connection between the PC and the NETA-21, the
DHCP server mode in the NETA-21 is set off.
5. Go to http://192.168.230.1.
Note: If the Ethernet cable is connected to the NETA-21 before you push the SD RJ45
button, the PC does not automatically get an IP address.

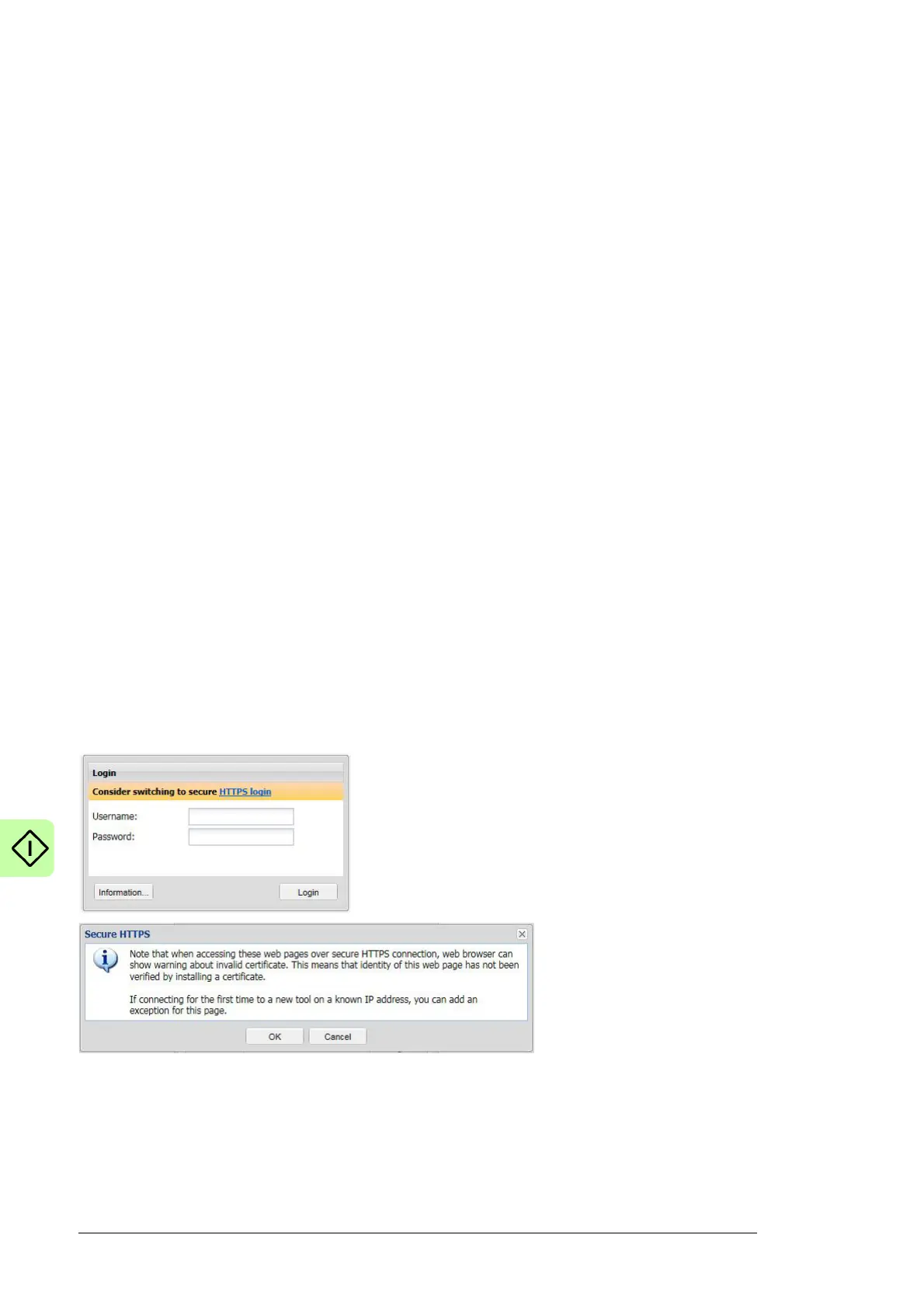

Logging on to the NETA-21
1. With the web browser of you PC, navigate to http://192.168.230.1.
2. When you log on to the NETA-21 for the first time, use the default user
name/password.
Type “admin” both to the Username and Password text boxes.
The UI recommends that you use the secure HTTPS login. If you click the link, you get
a notification on a possible warning message concerning an invalid certificate.
3. Click Login.
You are redirected to the front page.
