ABB REF615 L User Manual

3.12.1.2 Functionality
The GOOSERCV_BIN function is used to connect the GOOSE binary inputs to the
application.
3.12.1.3 Signals
Table 59: GOOSERCV_BIN Input signals
Name Type Default Description
IN BOOLEAN 0 Input signal
Table 60: GOOSERCV_BIN Output signals
Name Type Description
OUT BOOLEAN Output signal
VALID BOOLEAN Output signal
3.12.2 GOOSERCV_DP function block
3.12.2.1 Function block

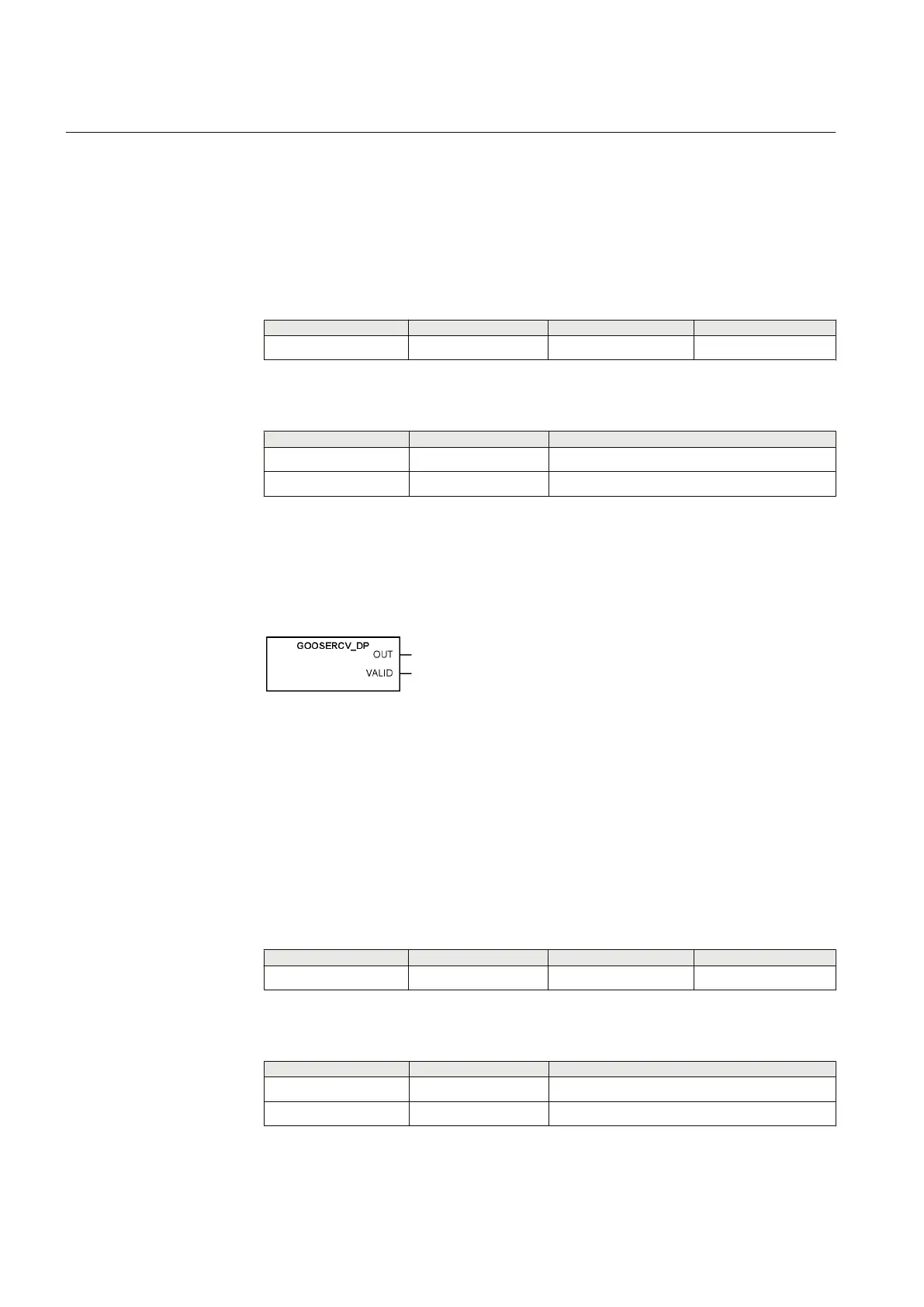

GUID-63C0C3EE-1C0E-4F78-A06E-3E84F457FC98 V1 EN
Figure 31: Function block
3.12.2.2 Functionality
The GOOSERCV_DP function is used to connect the GOOSE double binary inputs
to the application.
3.12.2.3 Signals
Table 61: GOOSERCV_DP Input signals
Name
Type Default Description
IN Dbpos 00 Input signal
Table 62: GOOSERCV_DP Output signals
Name
Type Description
OUT Dbpos Output signal
VALID BOOLEAN Output signal
Section 3 1YHT530004D05 D
Basic functions
98 615 series
Technical Manual

ABB REF615 L Specifications

General

Type	Feeder Protection Relay
Rated Frequency	50/60 Hz
Weight	Approx. 1.5 kg
Communication Protocols	IEC 61850, Modbus RTU, DNP3
Protection Functions	Overcurrent, Earth fault, Thermal overload, Under/Over voltage, Under/Over frequency
Enclosure	IP20
