Signals
Table 95: XOR Input signals
Name Type Default Description
B1 BOOLEAN 0 Input signal 1
B2 BOOLEAN 0 Input signal 2
Table 96: XOR Output signal
Name Type Description
O BOOLEAN Output signal
Settings
The function does not have any parameters available in LHMI or Protection and
Control IED Manager (PCM600).

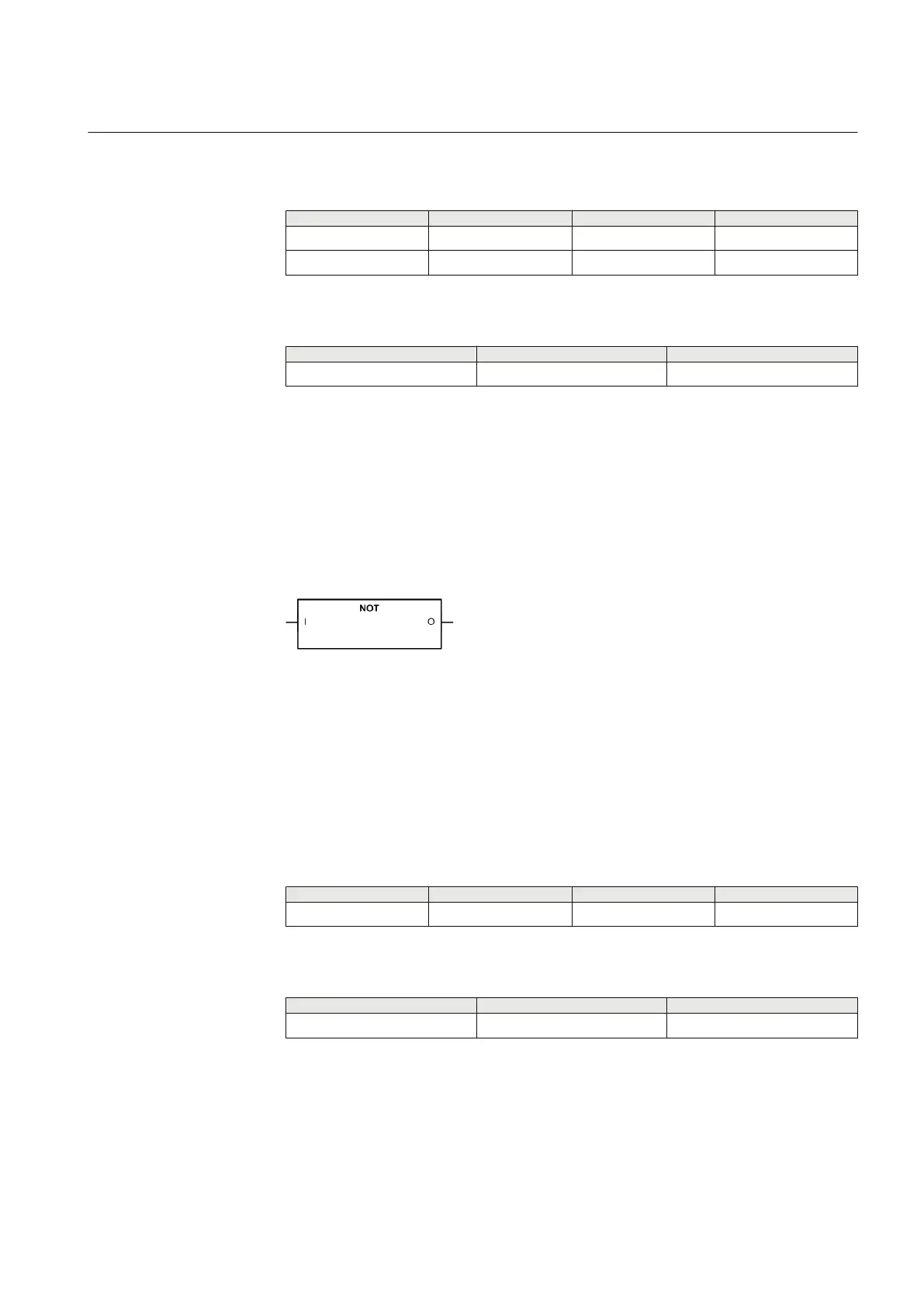

3.14.1.4 NOT function block
Function block
GUID-0D0FC187-4224-433C-9664-908168EE3626 V1 EN
Figure 45: Function block
Functionality
NOT is used to generate combinatory expressions with Boolean variables.
NOT inverts the input signal.
Signals
Table 97: NOT Input signal
Name
Type Default Description
I BOOLEAN 0 Input signal
Table 98: NOT Output signal
Name
Type Description
O BOOLEAN Output signal
Settings
The function does not have any parameters available in LHMI or Protection and
Control IED Manager (PCM600).
1YHT530004D05 D Section 3
Basic functions
615 series 111
Technical Manual

ABB REF615 L Specifications

General

Type	Feeder Protection Relay
Rated Frequency	50/60 Hz
Weight	Approx. 1.5 kg
Communication Protocols	IEC 61850, Modbus RTU, DNP3
Protection Functions	Overcurrent, Earth fault, Thermal overload, Under/Over voltage, Under/Over frequency
Enclosure	IP20
