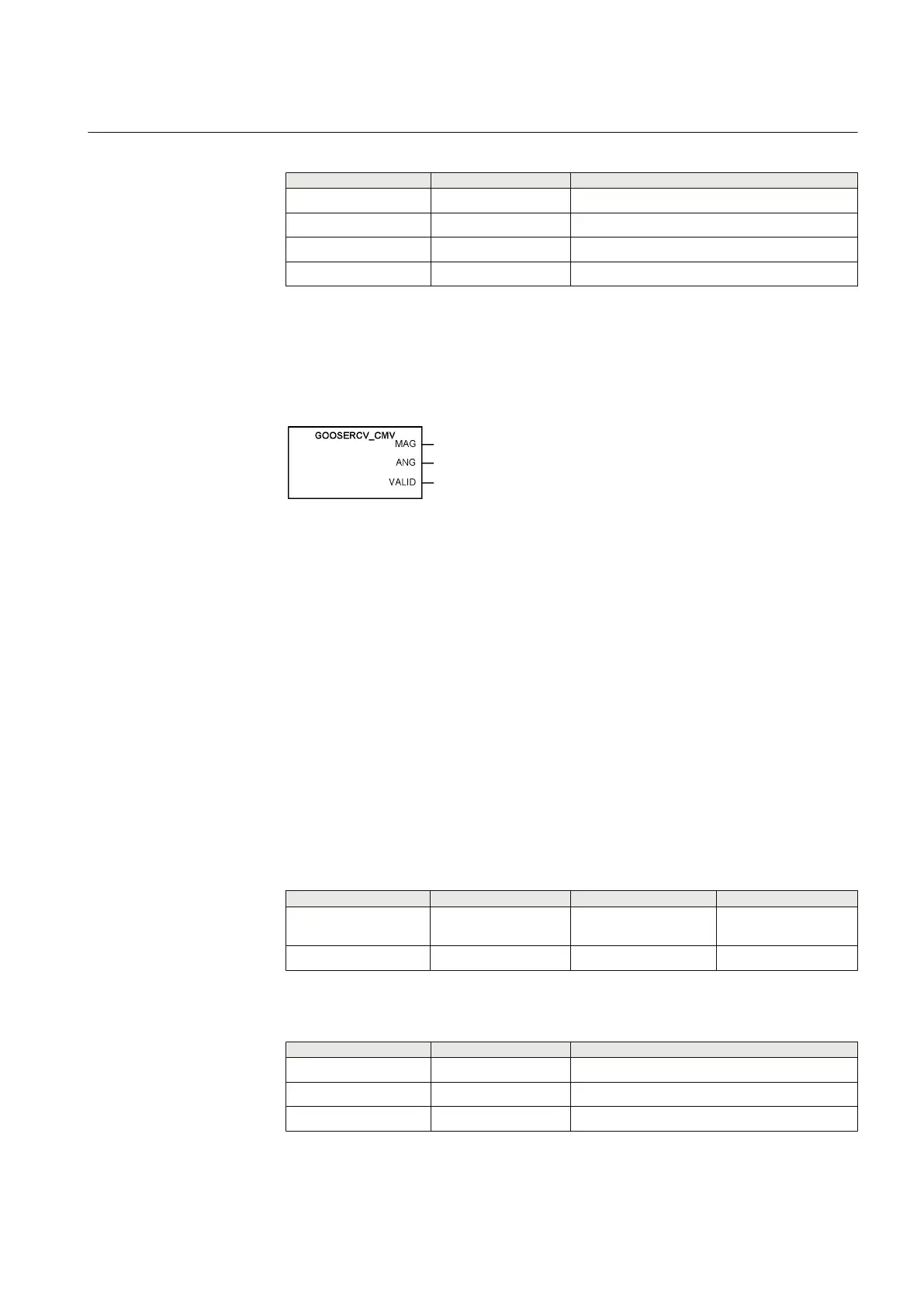

Page #107 background imageLoading...
Page #107 background image
Table 68: GOOSERCV_INTL Output signals
Name Type Description
OP BOOLEAN Position open output signal
CL BOOLEAN Position closed output signal
OK BOOLEAN Position OK output signal
VALID BOOLEAN Output signal
3.12.6 GOOSERCV_CMV function block
3.12.6.1 Function block
GUID-4C3F3A1A-F5D1-42E1-840F-6106C58CB380 V1 EN
Figure 35: Function block
3.12.6.2 Functionality
The GOOSERCV_CMV function is used to connect GOOSE measured value
inputs to the application. The MAG_IN (amplitude) and ANG_IN (angle) inputs
are defined in the GOOSE configuration (PCM600).
The MAG output passes the received GOOSE (amplitude) value for the
application. Default value (0) is used if VALID output indicates invalid status.
The ANG output passes the received GOOSE (angle) value for the application.
Default value (0) is used if VALID output indicates invalid status.
3.12.6.3 Signals
Table 69: GOOSERCV_CMV Input signals
Name
Type Default Description
MAG_IN FLOAT32 0 Input signal
(amplitude)
ANG_IN FLOAT32 0 Input signal (angle)
Table 70: GOOSERCV_CMV Output signals
Name
Type Description
MAG FLOAT32 Output signal (amplitude)
ANG FLOAT32 Output signal (angle)
VALID BOOLEAN Output signal
1YHT530004D05 D Section 3
Basic functions
615 series 101
Technical Manual
