3.12.4.3 Signals
Table 65: GOOSERCV_INT8 Input signals
Name Type Description
IN INT8 Input signal
Table 66: GOOSERCV_INT8 Output signals
Name Type Description
OUT INT8 Output signal
VALID BOOLEAN Output signal

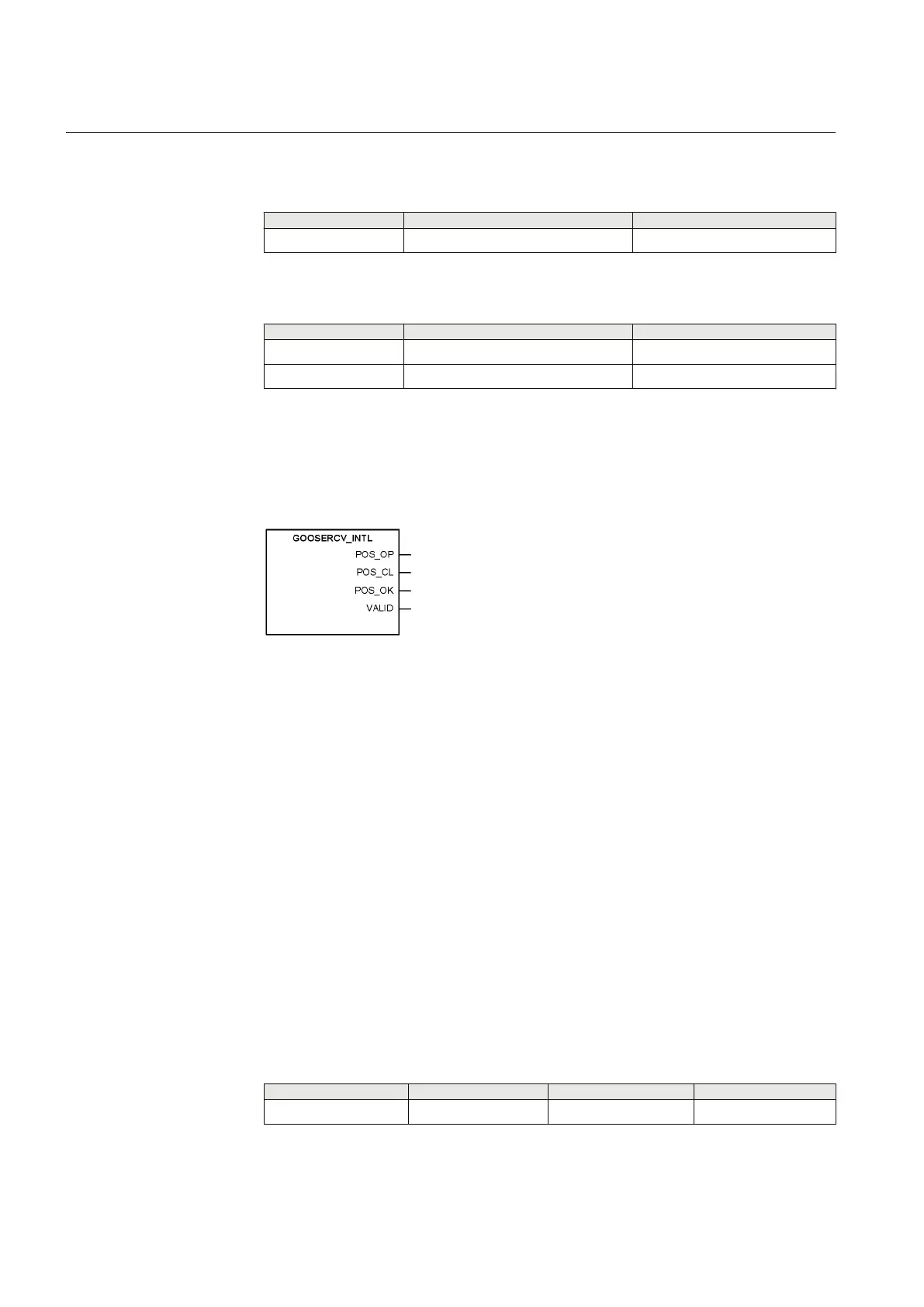

3.12.5 GOOSERCV_INTL function block
3.12.5.1 Function block
GUID-241A36E0-1BB9-4323-989F-39668A7B1DAC V1 EN
Figure 34: Function block
3.12.5.2 Functionality
The GOOSERCV_INTL function is used to connect the GOOSE double binary
input to the application and extracting single binary position signals from the
double binary position signal.
The OP output signal indicates that the position is open. Default value (0) is used if
VALID output indicates invalid status.
The CL output signal indicates that the position is closed. Default value (0) is used
if VALID output indicates invalid status.
The OK output signal indicates that the position is neither in faulty or intermediate
state. The default value (0) is used if VALID output indicates invalid status.
3.12.5.3 Signals
Table 67: GOOSERCV_INTL Input signals
Name
Type Default Description
IN Dbpos 00 Input signal
Section 3 1YHT530004D05 D
Basic functions
100 615 series
Technical Manual
