Table 76: QTY_GOOD Output signals
Name Type Description
OUT BOOLEAN Output signal

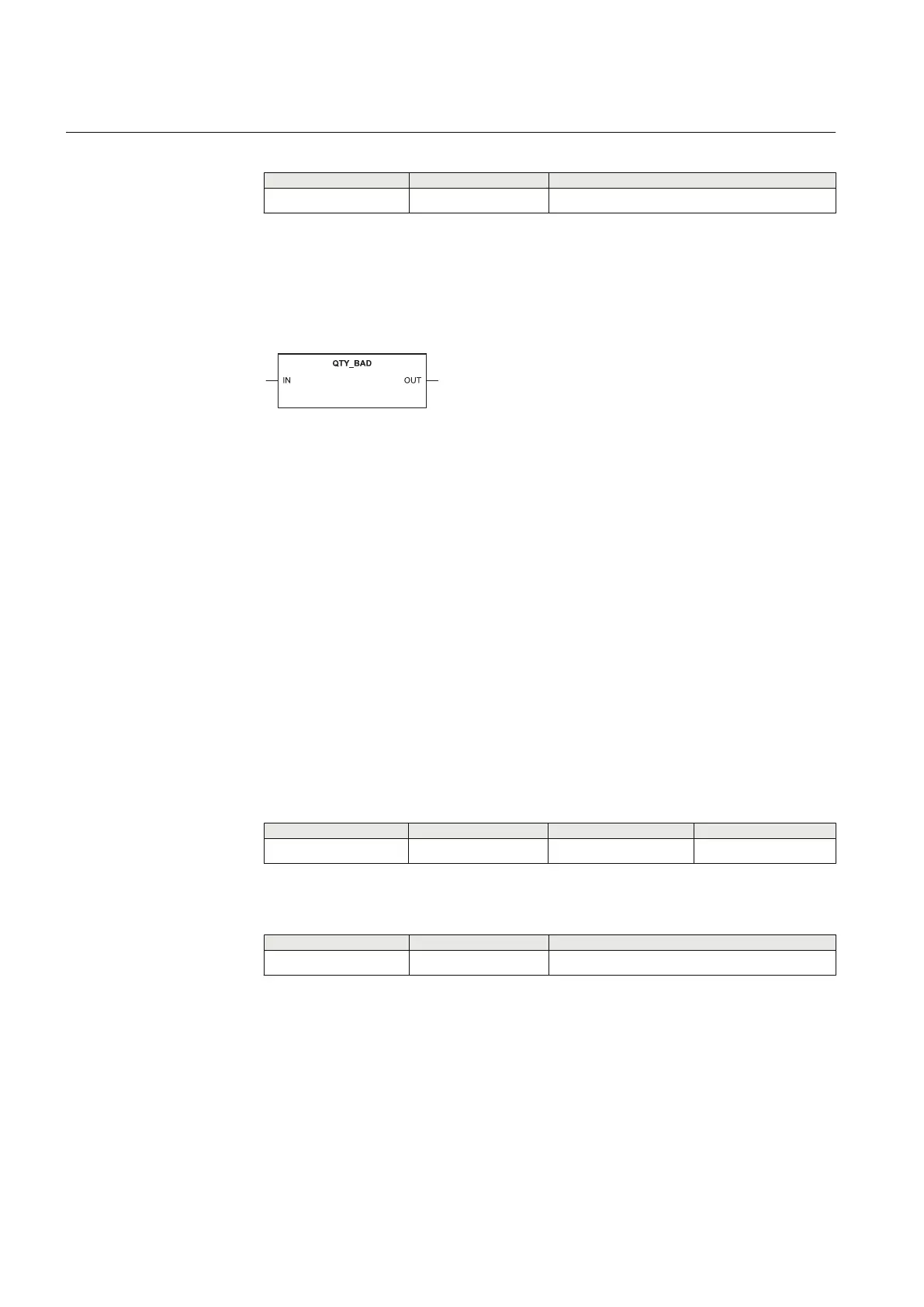

3.13.2 QTY_BAD function block
3.13.2.1 Fucntion block
GUID-8C120145-91B6-4295-98FB-AE78430EB532 V1 EN
Figure 39: Function block
3.13.2.2 Functionality
The QTY_BAD function block evaluates the quality bits of the input signal and
passes it as a Boolean signal for the application.
The IN input can be connected to any logic application signal (logic function
output, binary input, application function output or received GOOSE signal). Due
to application logic quality bit propagation, each (simple and even combined)
signal has quality which can be evaluated.
The OUT output indicates quality bad of the input signal. Input signals that have
any other than test bit set, will indicate quality bad status.
3.13.2.3 Signals
Table 77: QTY_BAD Input signals
Name
Type Default Description
IN Any 0 Input signal
Table 78: QTY_BAD Output signals
Name
Type Description
OUT BOOLEAN Output signal
Section 3 1YHT530004D05 D
Basic functions
104 615 series
Technical Manual
