ABB REF615 L User Manual

GUID-B55D0F5F-9265-4D9A-A7C0-E274AA3A6BB1 V1 EN

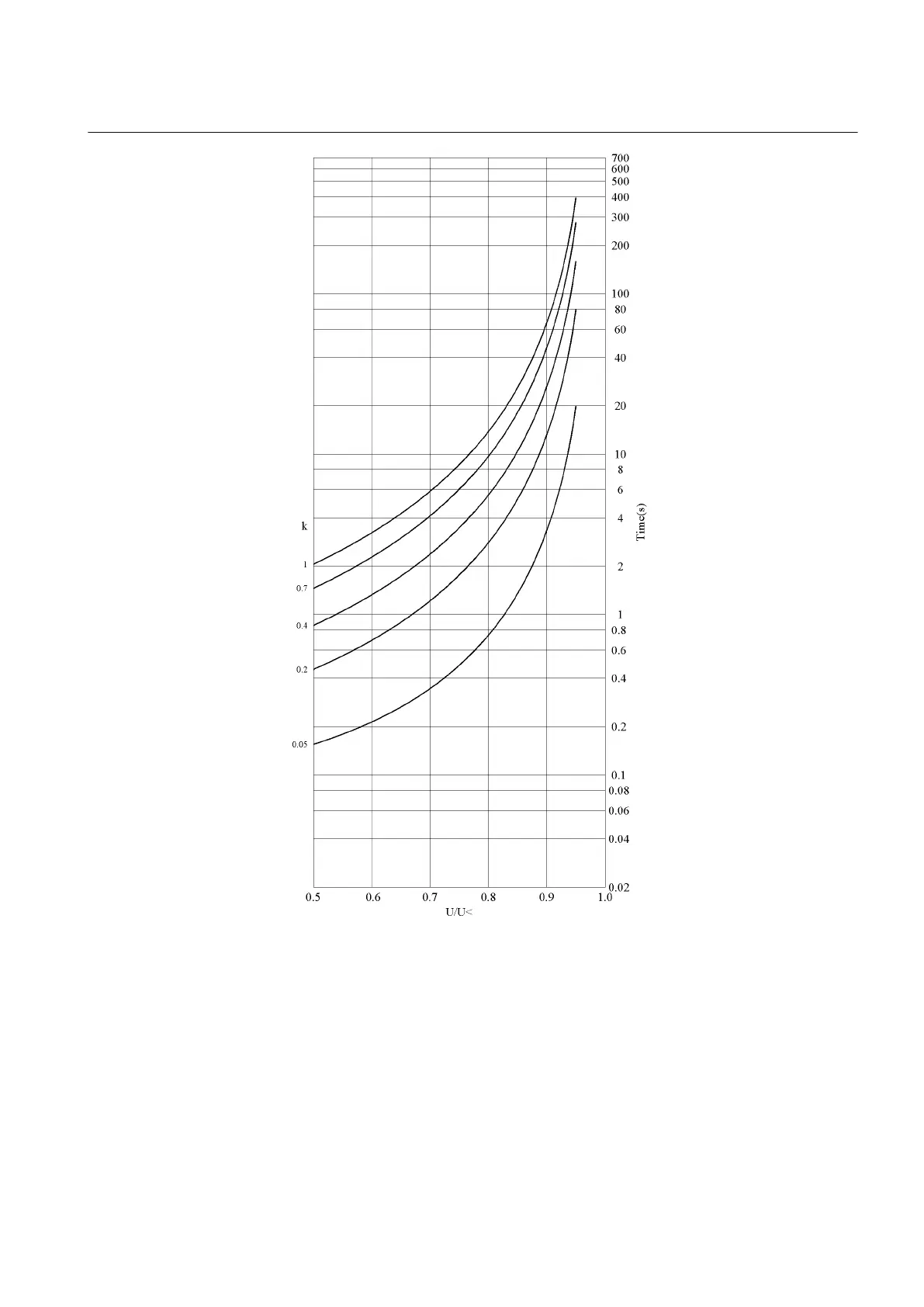

Figure 458: Inverse curve B characteristic of undervoltage protection
11.3.2.2 User-programmable inverse-time characteristics for undervoltage
protection
The user can define curves by entering parameters into the standard formula:
1YHT530004D05 D Section 11
General function block features
615 series 837
Technical Manual

ABB REF615 L Specifications

General

Type	Feeder Protection Relay
Rated Frequency	50/60 Hz
Weight	Approx. 1.5 kg
Communication Protocols	IEC 61850, Modbus RTU, DNP3
Protection Functions	Overcurrent, Earth fault, Thermal overload, Under/Over voltage, Under/Over frequency
Enclosure	IP20
