A060764 V1 EN

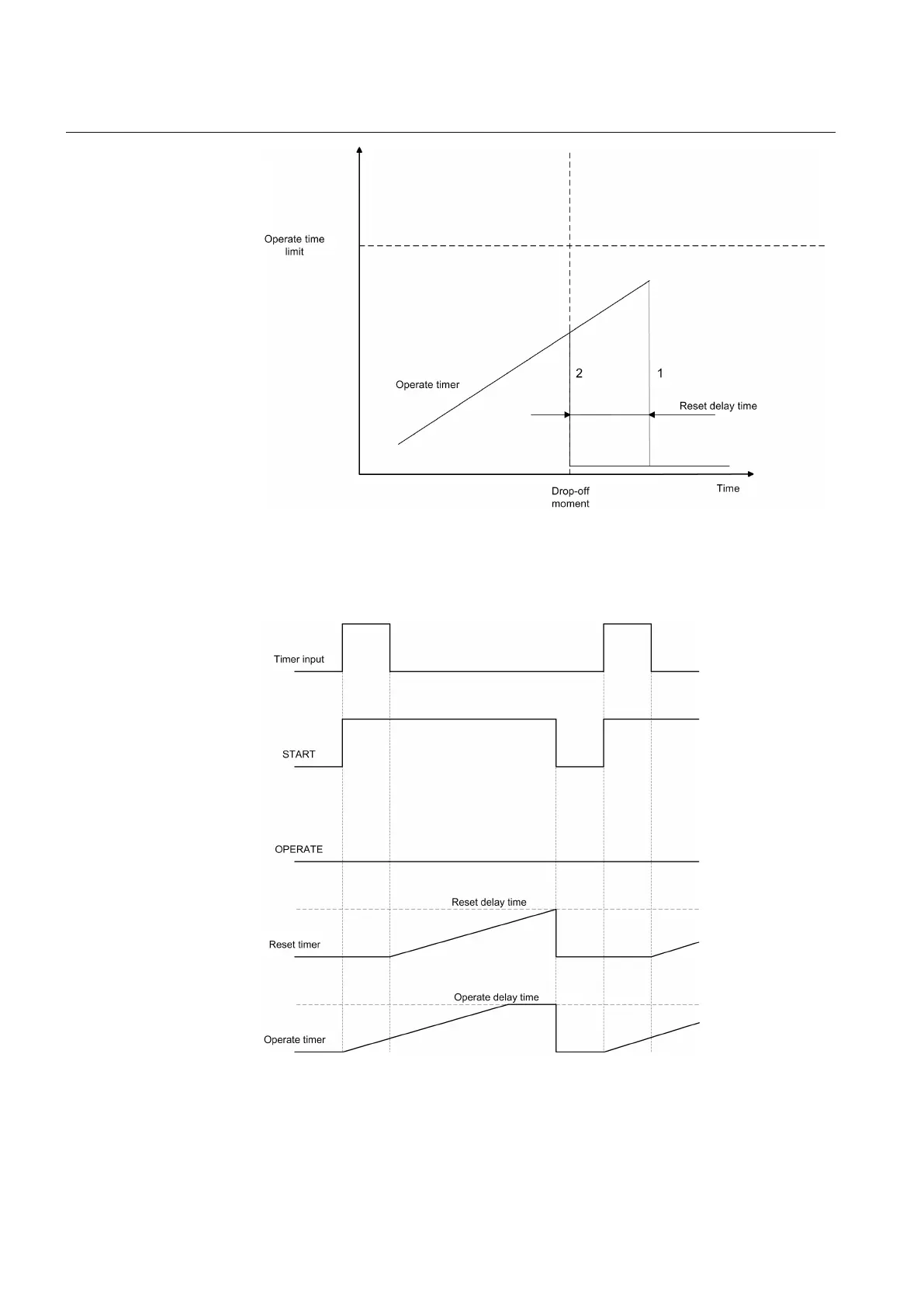

Figure 423: Operation of the counter in drop-off
In case 1, the reset is delayed with the Reset delay time setting and in case 2, the
counter is reset immediately, because the Reset delay time setting is set to zero.
A070421 V1 EN
Figure 424: Drop-off period is longer than the set Reset delay time
