GUID-F5E0E1C2-48C8-4DC7-A84B-174544C09142 V1 EN

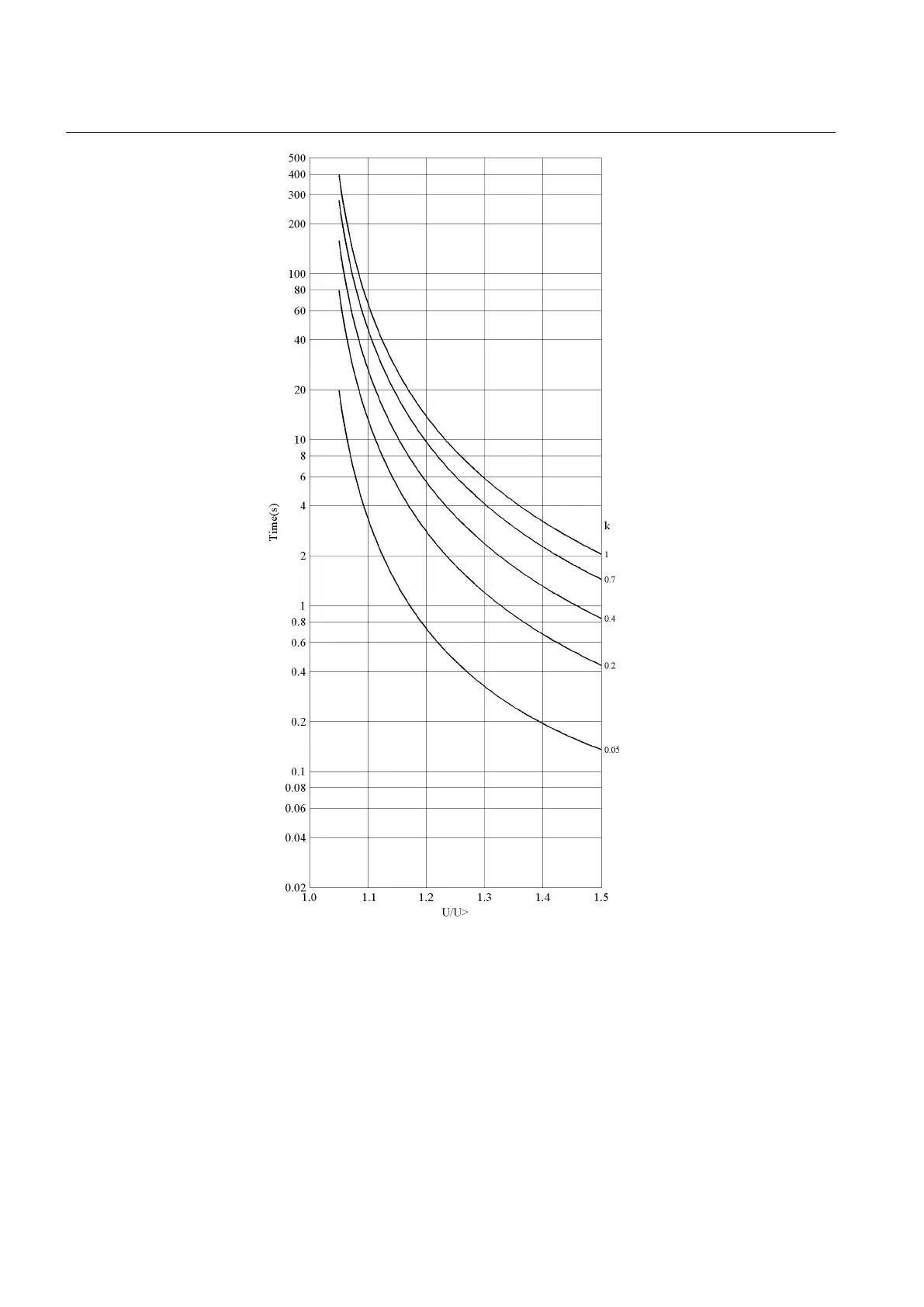

Figure 455: Inverse curve B characteristic of overvoltage protection
Section 11 1YHT530004D05 D
General function block features
832 615 series
Technical Manual
