6243/44 DC Voltage Current Source/Monitor Operation Manual
6.4.2 Data Output Format in the TR6143 Mode (Talker)
6-14
(2) Measurement buffer data output format (ASCII)
When measurement buffer store is turned on by OM5 and ASCII data output is subsequently speci-
fied, all the data at the time when the talker is specified by the controller in the buffer are recalled
continuously.
(a) Header (Main header 2 characters + Sub header 1 character)
(b) Fixed-point part (Polarity + decimal point + 5 to 6-digit figure)
(c) Exponent part (E + polarity + 1-digit figure)
(d) String delimiter
(e) Block delimiter

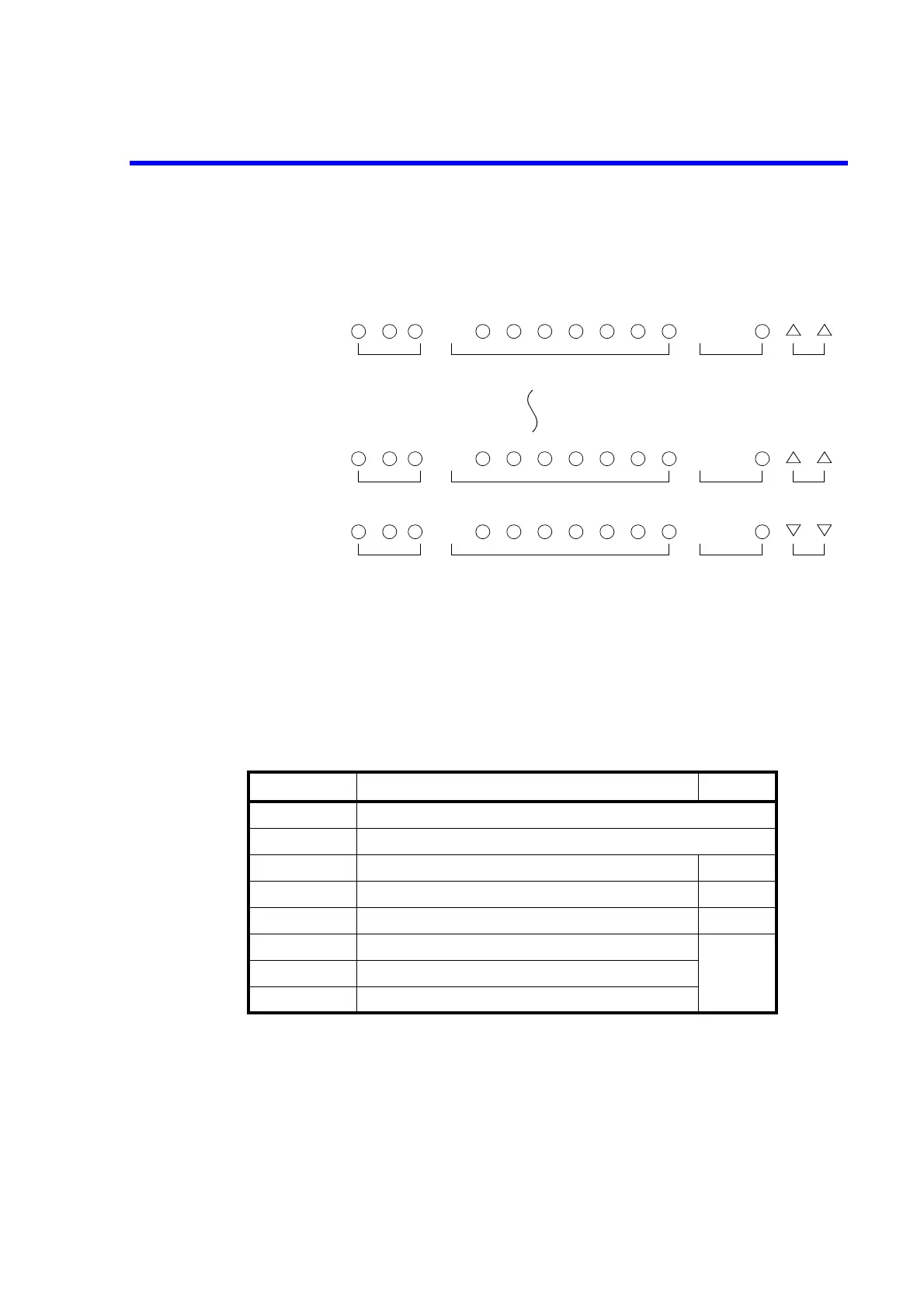

• Header
First data E
(a) (b) (c) (d)
n-1th data E
(a) (b) (c) (d)
nth data (last data) E
(a) (b) (c) (d)
Header Description Priority
DV Voltage source value and voltage measurement value
DI Current source value and current measurement value
OS Oscillation detection (OSC) 1
LM Limiter source (LMT) 2
OL The measurement range is exceeded (Over Range) 3
DVH/DIH The comparison operation result is HI.
4DVG/DIG The comparison operation result is GO.
DVL/DIL The comparison operation result is LO.
